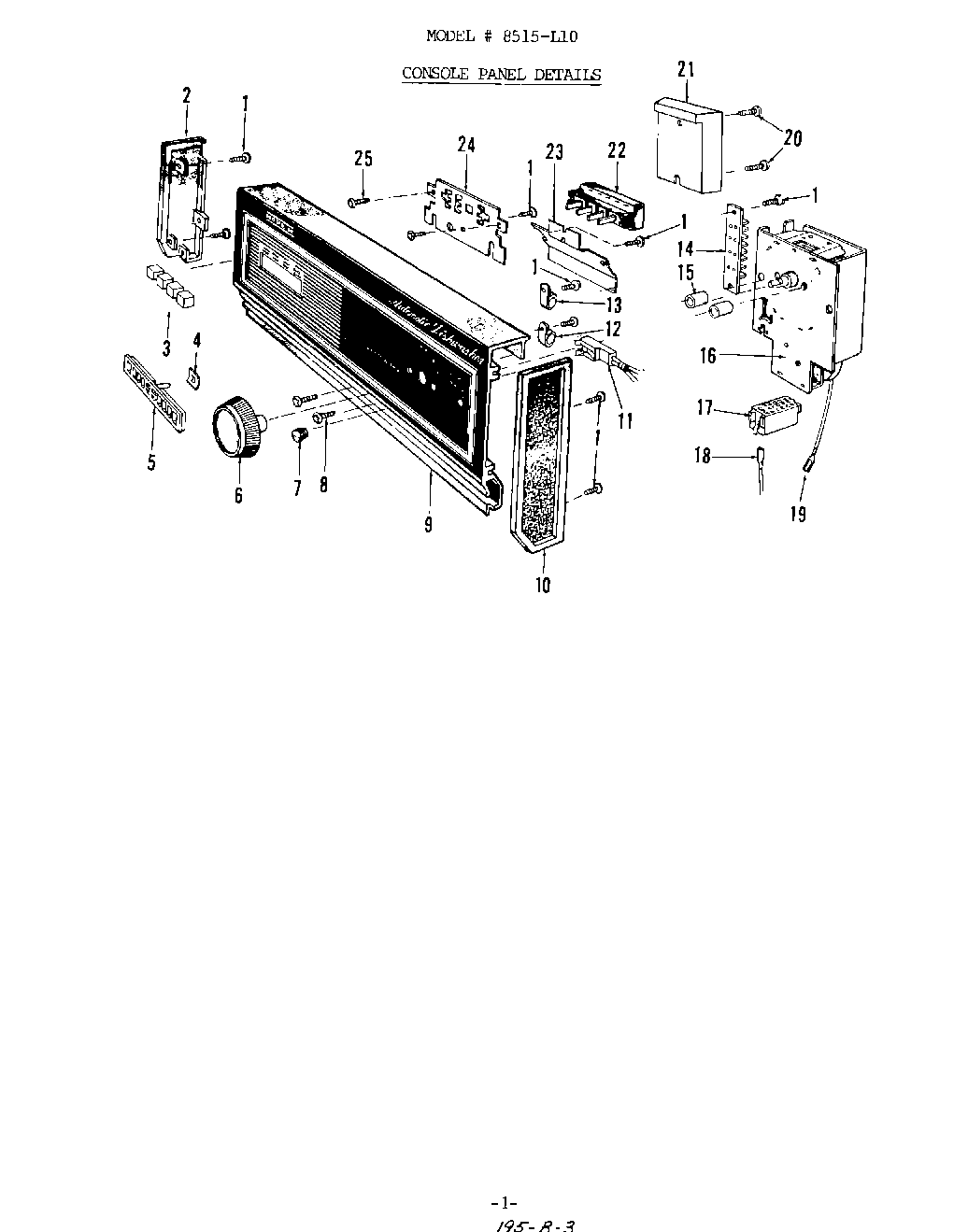

8515L10 02 – CONSOLE PANEL

Products

Position	Product
1	Screw No.8×7/16“Lg. C.R. Pan Hd. Cad. Pl.
2	End Cap L.H.
3	Pushbutton
4	Speednut
5	Vent Grille
6	Timer Knob
7	Lens
8	Screw No.10-32×1-17/64“Lg. C.R. Truss Hd. Cad. Pl.
9	Console Panel (Includes Key Nos 4 & 5)
10	End Cap R.H.
11	Light Assembly-Pilot
12	Clamp
13	W10833902 Whirlpool Refrigerator Clamp
14	Terminal Board Assembly
15	Spacer – Timer
16	xTimer
17	Housing – Timer Terminal
18	Housing Terminal
19	Terminal – Timer
20	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
21	Splash Pan
22	Switch
23	Shield – Vent Slot
24	Switch Bracket
25	Screw No.6-30Ax3/8“Lg. Pan Hd. Cad. Pl.
