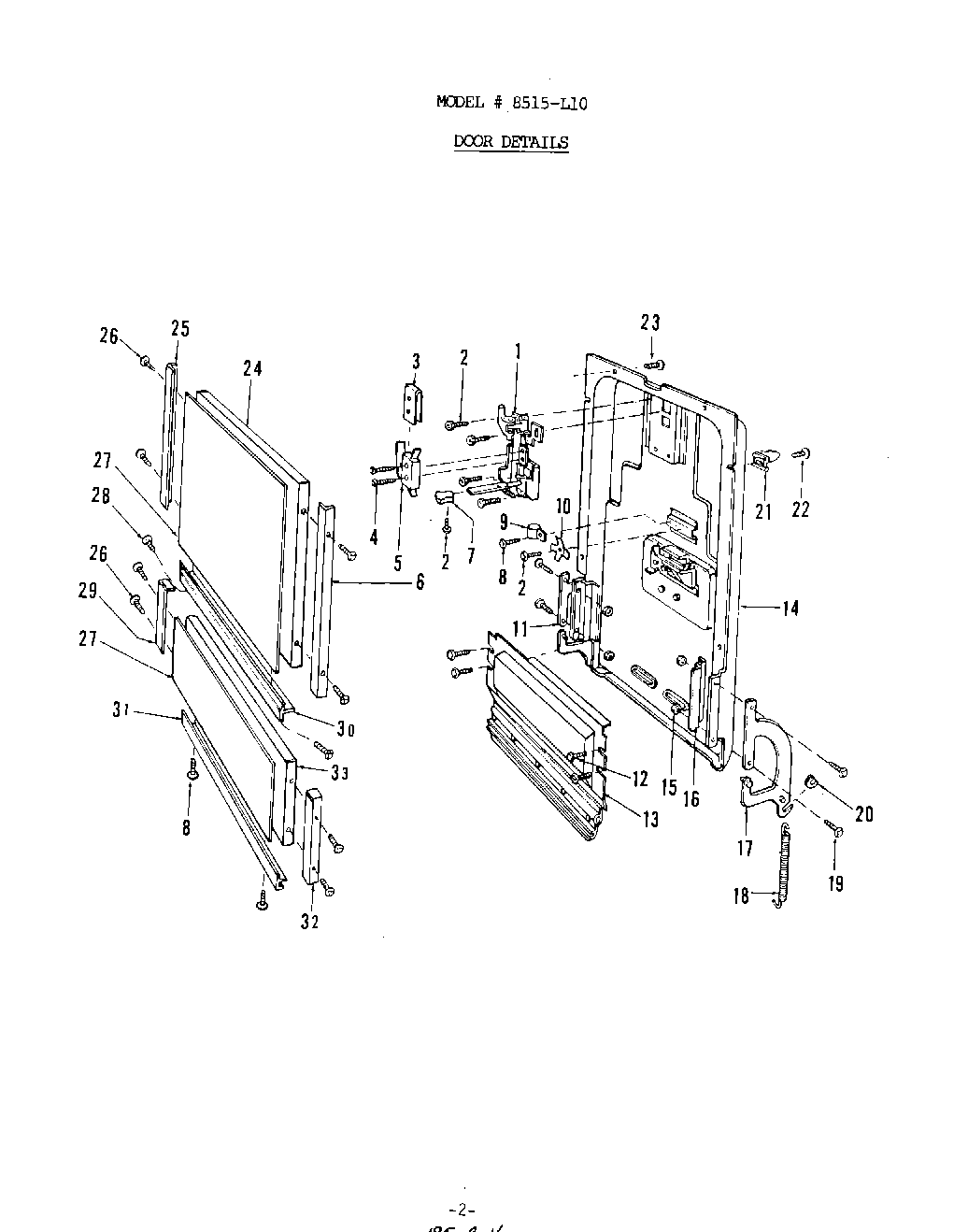

| 1 | Latch Assembly |
| 2 | Screw No.8-32x5/16``Lg. C.R. Hex Hd. Cad. Pl. |
| 3 | Cover - Switch |
| 4 | Screw No.6-32x1``Lg. Hex Hd. Cad. Pl. |
| 5 | Switch |
| 6 | Door Assembly Trim -RH |
| 7 | Latch Knob |
| 8 | Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl. |
| 9 | Clamp |
| 10 | Terminal-Grounding |
| 11 | Counterbalance Arm Assembly - L.H. |
| 12 | Screw No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl. |
| 13 | Vent Plate |
| 14 | Porcelain Weld Assembly-Door |
| 15 | M0282009 Whirlpool Air Conditioner Nut |
| 16 | Counterbalance Arm Mounting Bracket |
| 17 | Counterbalance Arm R.H. |
| 18 | Door Spring |
| 19 | Screw No. 10-24 x 5/8`` Lg. C.R. Truss Hd. Chr. Pl. |
| 20 | Spring Pad |
| 21 | Guide - Door |
| 22 | Screw No.8x5/8``Lg. C.R. Truss Hd. St. St. |
| 23 | Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St. |
| 24 | Door Panel Assembly |
| 25 | Door Panel Trim - L.H. |
| 26 | WP74004005 Whirlpool Screw |
| 27 | Door Panel Insert (Almond & G. Wh) & Access Insert |
| 28 | Screw |
| 29 | Trim-Access Panel L.H. Side |
| 30 | Door Trim-Bottom |
| 31 | Trim Access Bottom |
| 32 | Trim - Access Panel R.H. Side |
| 33 | Access Panel Assembly |
