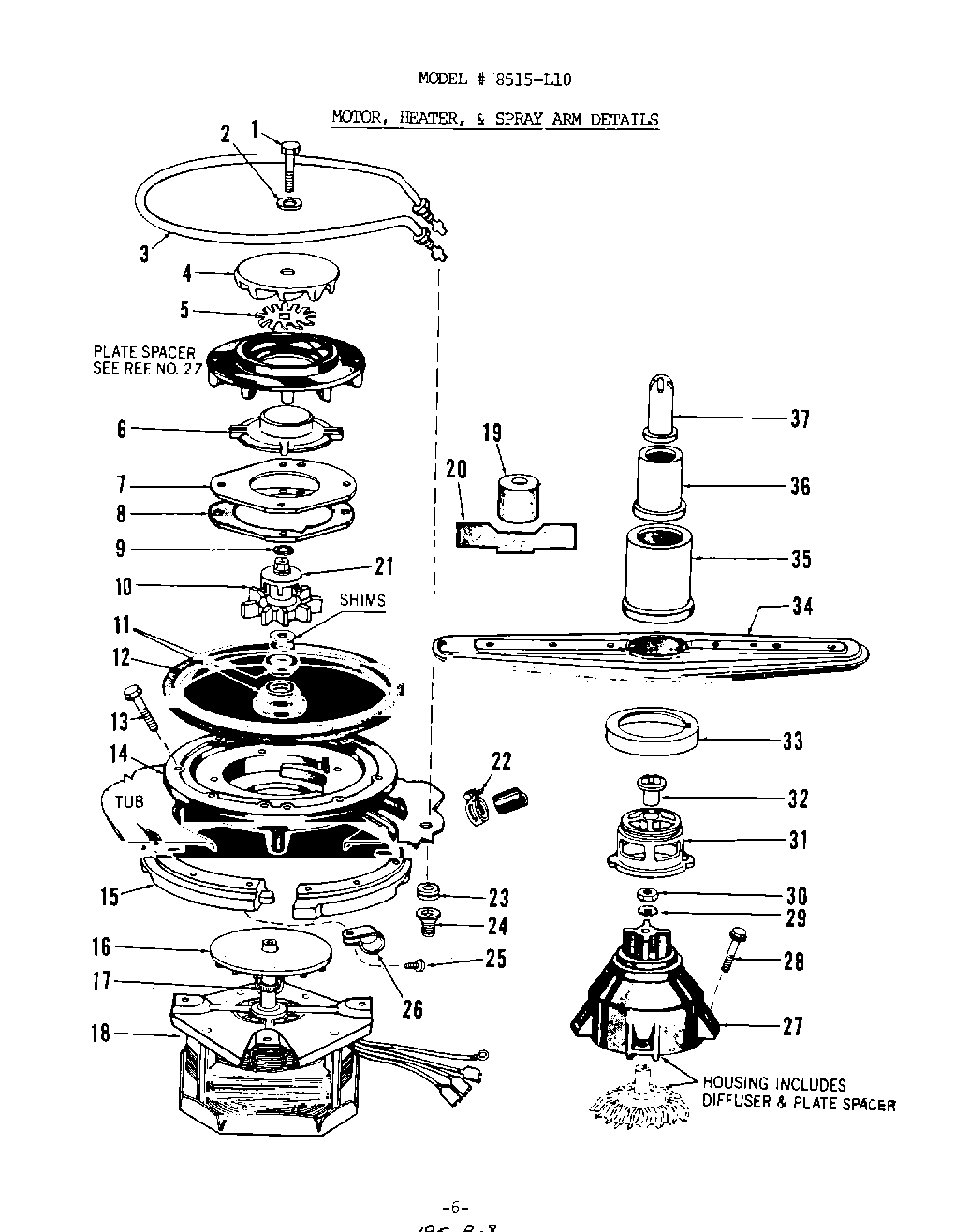

8515L10 05 – MOTOR, HEATER AND SPRAY ARM

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater (Includes Key Nos. 23 & 24)
4	Impeller – Upper
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Pump Seal Kit (Includes Key Nos. 2,4,5,9,11,20,21)
11	Seal
12	Gasket-Pump
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	xPump Housing
15	Clamp Ring (Includes Both Halves)
16	Watershield Fan (Includes Key No. 17)
17	Tolerance Ring
18	Motor (Includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4“ Lg.Impeller Bolt, Motor, Sha
19	Seal Installation Tool
20	Gage – Seal Shim
21	Impeller Ring
22	Clamp
23	Grommet – Heater
24	Nut 1/2“ 20 Brass
25	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
26	Clamp
27	Pump Housing (Includes Diffuser & Plate Spacer)
28	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
29	Lockwasher No.10 External Teeth
30	Nut
31	Bearing
32	Spray Arm Nut
33	Shield Bearing
34	Spray Arm Assembly
35	Tower Base
36	Tower Section
37	Tower Tip
