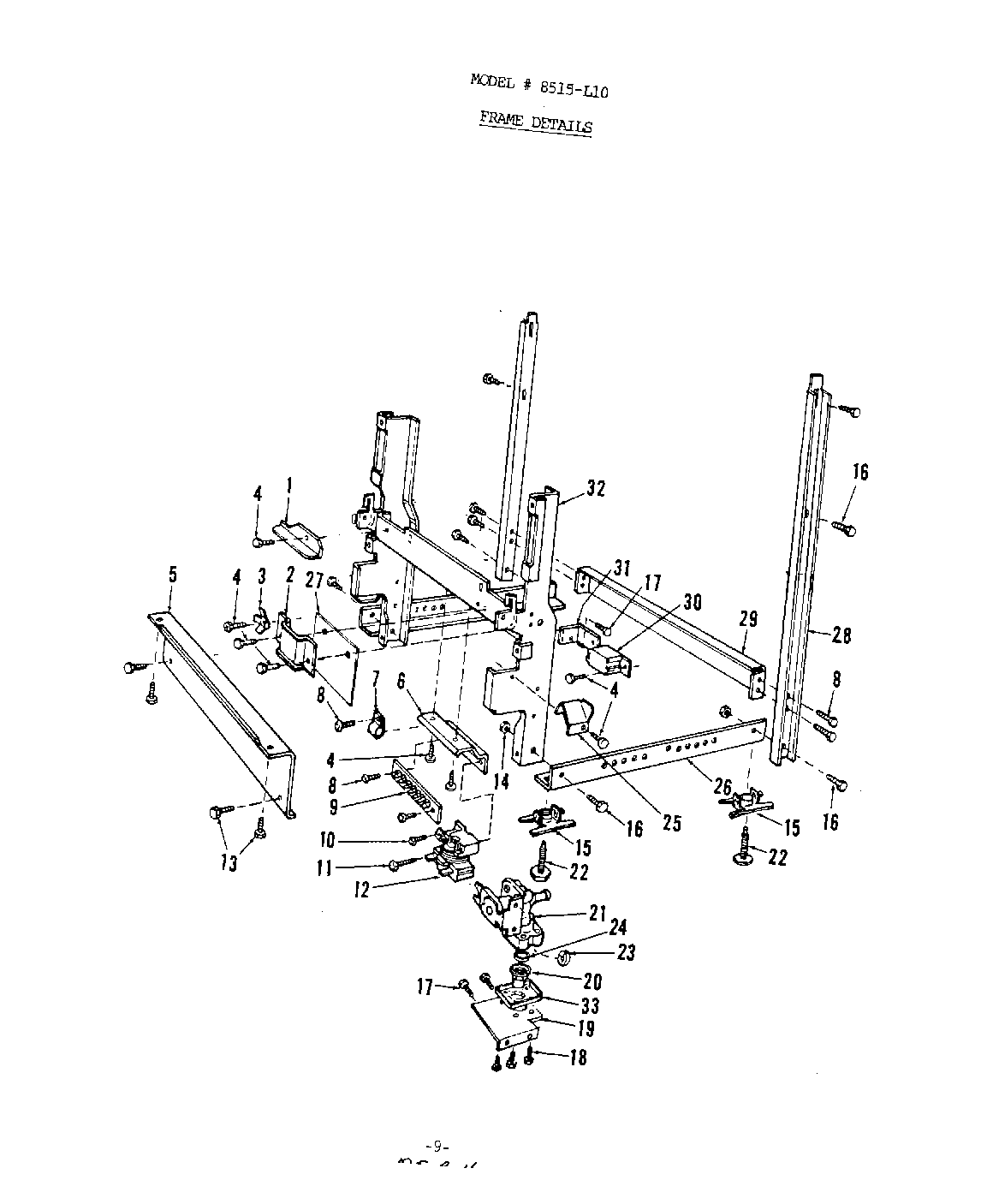

8515L10 07 – FRAME

Products

Position	Product
1	Suds Deflector L.H.
2	Clamp – Wiring
3	Terminal-Grounding
4	WP90767 Whirlpool Screw
5	Toeplate
6	Terminal Bracket
7	Clamp
8	Screw
9	Terminal Block Assembly
10	WP488234 Whirlpool Air Conditioner Screw
11	Screw No.8-32×1-1/4“Lg. C.R. Fillister Hd. Cad.Pl.
12	Motor Relay
13	Screw 1/4-20×1/2“Lg.Hex Washer Slotted Hd.Cad.Pl.
14	M0282005 Whirlpool Nut
15	Teenut – Snap- in
16	Screw 1/4-20×1/2“ Lg Hex Washer Hd. Cad. Pl.
17	Screw No. 10B x 1/2“ Lg. Hex Slot Hd. Cad.
18	Screw
19	Mounting Bracket
20	Fitting – Inlet Valve
21	xWater Valve Kit (Includes Key Nos. 23 & 24)
22	Levelers
23	Flow Washer
24	Gasket
25	Suds Deflector R.H.
26	Angle Base
27	Wire Shield
28	Side Channel
29	Rear Brace
30	Junction Box Cover
31	Junction Box Bracket
32	Hinge Weld Assembly
33	Fitting – Retainer
