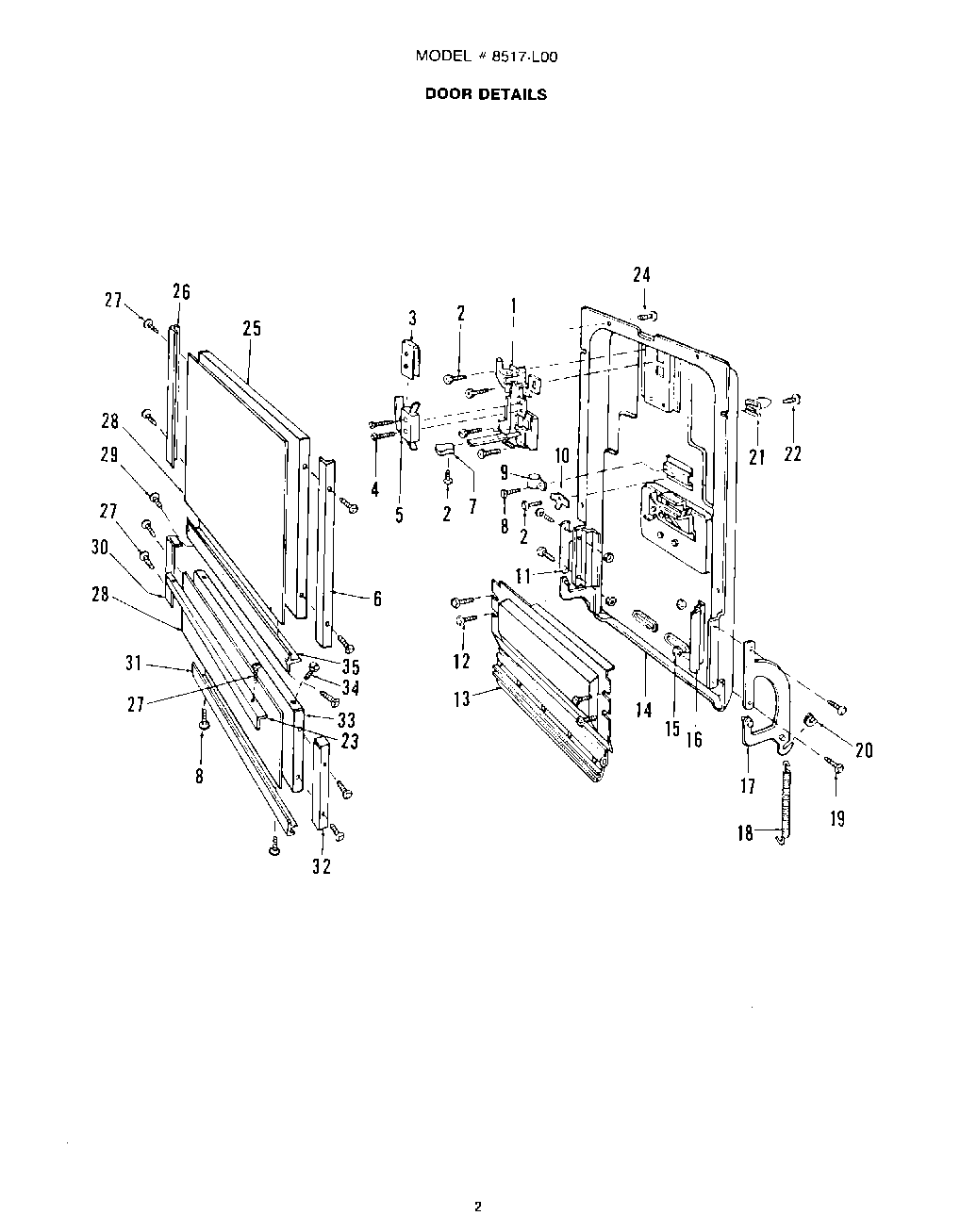

8517L00 03 – DOOR

Products

Position	Product
1	Latch Assembly
2	Screw 8-32 x 5/16“ Lg. Hex Washer Hd. Cad. Pl
3	Cover – Switch
4	Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
5	Switch
6	Door Panel Trim – R.H.
7	Latch Knob
9	Clamp
10	Terminal-Grounding
11	Counterbalance Arm Assembly – L.H.
12	Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
13	Vent Plate
14	Porcelain Weld Assembly-Door
15	M0282009 Whirlpool Air Conditioner Nut
16	Counterbalance Arm Mounting Bracket
17	Counterbalance Arm R.H.
18	Door Spring
19	Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
20	Spring Pad
21	Guide – Door
22	Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
23	Trim-Top Access Panel
24	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
25	Door Panel Assembly
26	Door Panel Trim – L.H.
27	WP74004005 Whirlpool Screw
28	Door & Access Panel Inserts (Coffee)
28	Door & Access Panel Inserts (Avocado)
28	Door & Access Panel Inserts (Wheat)
28	Door & Access Panel Inserts (Almond)
28	Door & Access Panel Inserts (Black)
29	Screw
30	Trim-Access Panel L.H. Side
31	Trim Access Bottom
32	Trim – Access Panel R.H. Side
33	Access Panel Assembly
34	WP90767 Whirlpool Screw
35	Door Trim-Bottom
