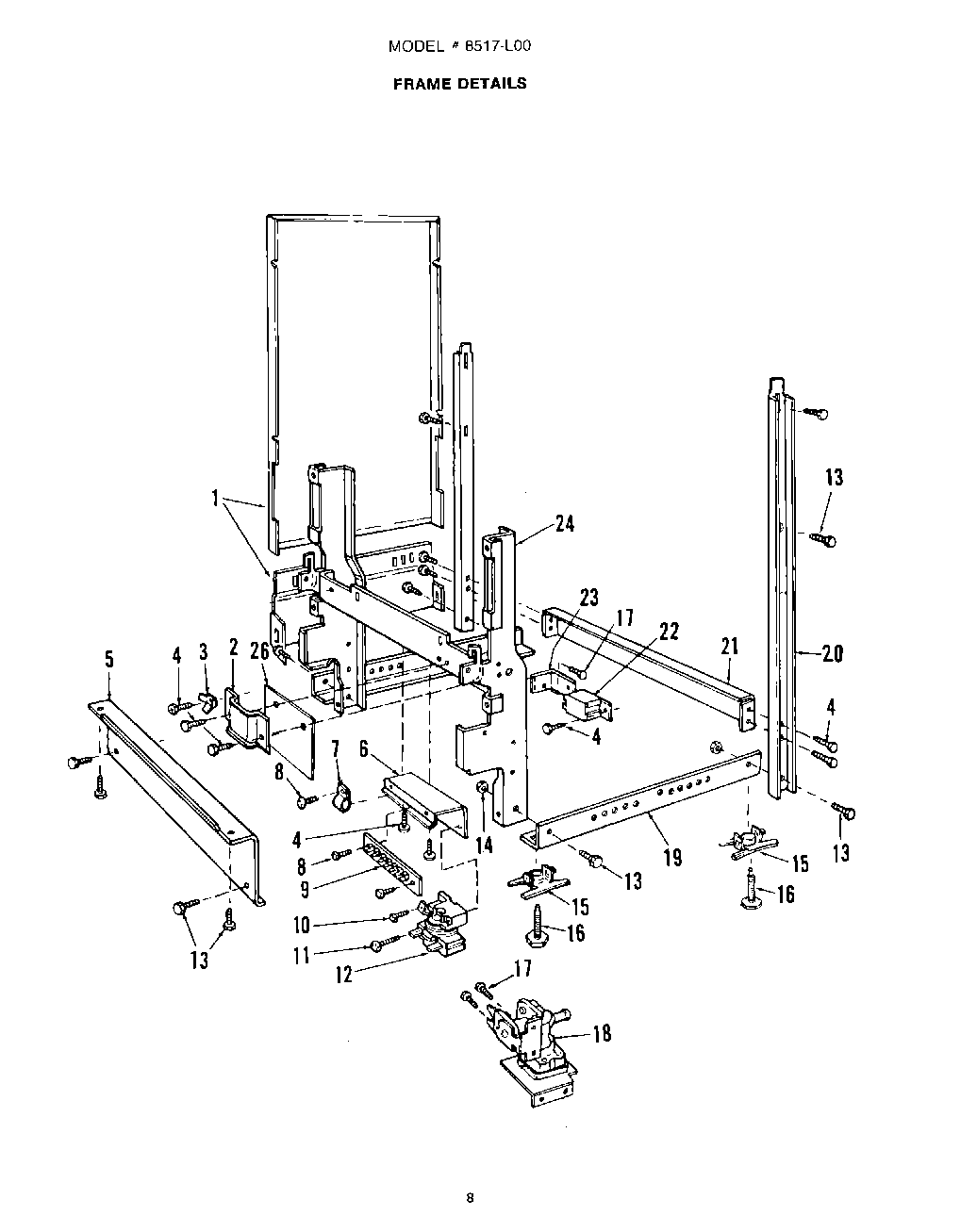

8517L00 06 – FRAME

Products

Position	Product
1	Side Panel Kit (Reversible Right or Left) (Avocado)
1	Side Panel Kit (Reversible Right or Left) (Almond)
1	Side Panel Kit (Reversible Right or Left) (Wheat)
1	Side Panel Kit (Reversible Right or Left) (Coffee)
2	Clamp – Wiring
3	Terminal-Grounding
4	WP90767 Whirlpool Screw
5	Toeplate
6	Terminal board Bracket
7	Clamp
8	Screw
9	Terminal Block Assembly
10	WP488234 Whirlpool Air Conditioner Screw
11	Screw No.8-32×1-1/4“Lg. C.R. Fillister Hd. Cad.Pl.
12	Motor Relay
13	Screw 1/4-20×1/2“Lg.Hex Washer Slotted Hd.Cad.Pl.
14	M0282005 Whirlpool Nut
15	Teenut – Snap- in
16	Levelers
17	Screw No. 10B x 1/2“ Lg. Hex Slot Hd. Cad.
18	Water Inlet Valve
19	Angle Base
20	Side Channel
21	Rear Brace
22	Junction Box Cover
23	Junction Box Bracket
24	Hinge Weld Assembly/8“ Lg. C.R. Round Hd. St. St.
