8517L10 02 – FRAME
Written by
in

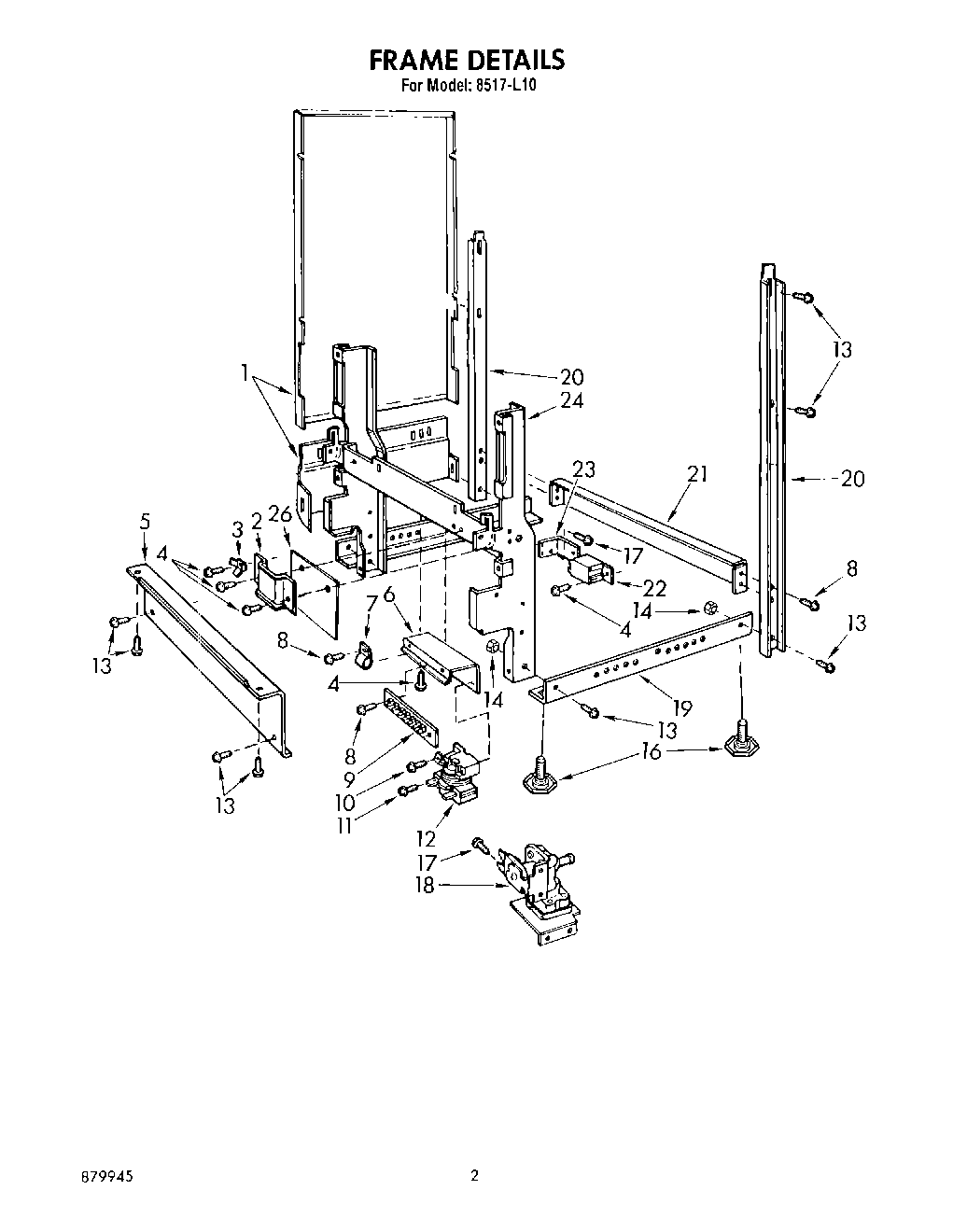

8517L10 02 – FRAME
Products
Position
Product
1
Side Panels (R.H. or L.H.) (White)
1
Side Panels (R.H. or L.H.) (Coffee)
1
Side Panels (R.H. or L.H.) (Avocado)
1
Side Panels (R.H. or L.H.) (Wheat)
1
Side Panels (R.H. or L.H.) (Almond)
2
Wire Clamp
3
Grounding Terminal
4
Screw, No.8 x 3/8
5
Toeplate
6
Terminal Board Bracket
7
Clamp, Wire
8
WP488729 Whirlpool Refrigerator Door Screw
9
Terminal Block Assembly
10
WP486579 Whirlpool Air Conditioner Screw
11
Screw, No.8-32 x 1 1/4
12
Motor Relay
13
Screw, No.1/4 x 1/2
14
Nut
16
Leveler
17
SCREW
18
Water Inlet Valve
19
Side Base Angle Kit
20
Support Channel
21
Rear Brace
22
Junction Box Cover
23
Junction Box Bracket
24
Hinge Weld Assembly
26
Shield, Wire
←
