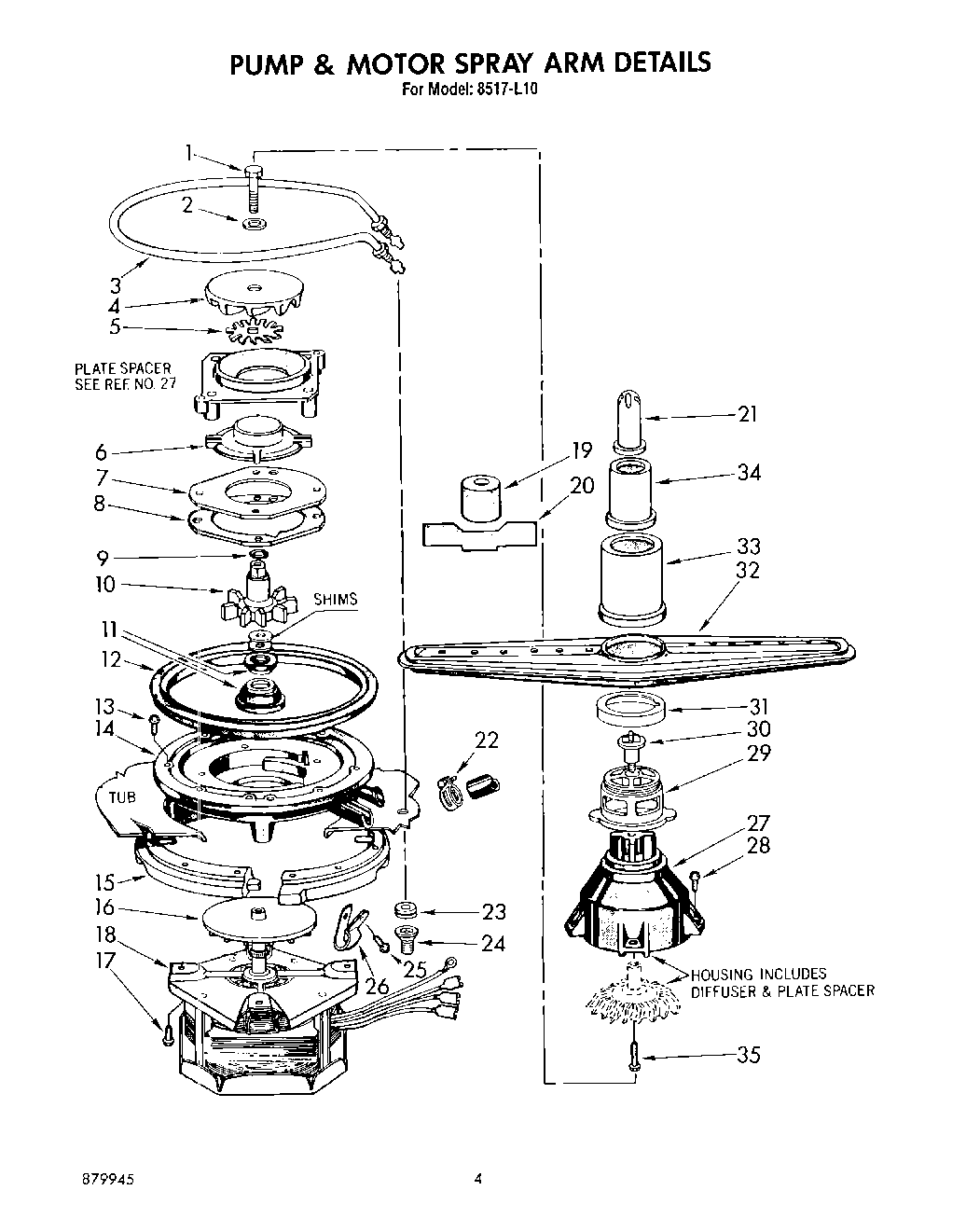

8517L10 03 – PUMP AND MOTOR SPRAY ARM DETAIL

Products

Position	Product
1	Screw, No.10-32 x 2 1/4
2	Washer
3	Heater (Includes Keys 23 & 24)
4	Upper Impeller
5	Macerator Blade
6	Impeller Shroud
7	Pump Plate
8	Pump Gasket
9	O-Ring
10	Pump Seal Kit (Includes Keys 2 4, 5, 9, 11 & 20)
11	Water Seal
12	Gasket
13	Screw, 10 x 1
14	Housing, Pump
15	Clamp Ring (2)
16	Watershield Assembly
17	Screw, 10 x 1
18	Motor Assembly (Includes Items 1, 9, 16 & 20)
19	Seal Installation Tool
20	Seal Shim Gage
21	Tower Tip
22	WP285655 Whirlpool Hose Clamp
23	Heater Grommet
24	Heater Nut, 1/2
25	W11693756 Whirlpool Screw Assembly
26	Clamp, Wire
27	Impeller Housing Kit (Includes Keys 6 & 7)
28	Screw, 10 x 1-3/4
29	Bearing
30	Spray Arm Bolt
31	Shield Bearing
32	Sprayarm
33	Tower Base
34	Tower Section
