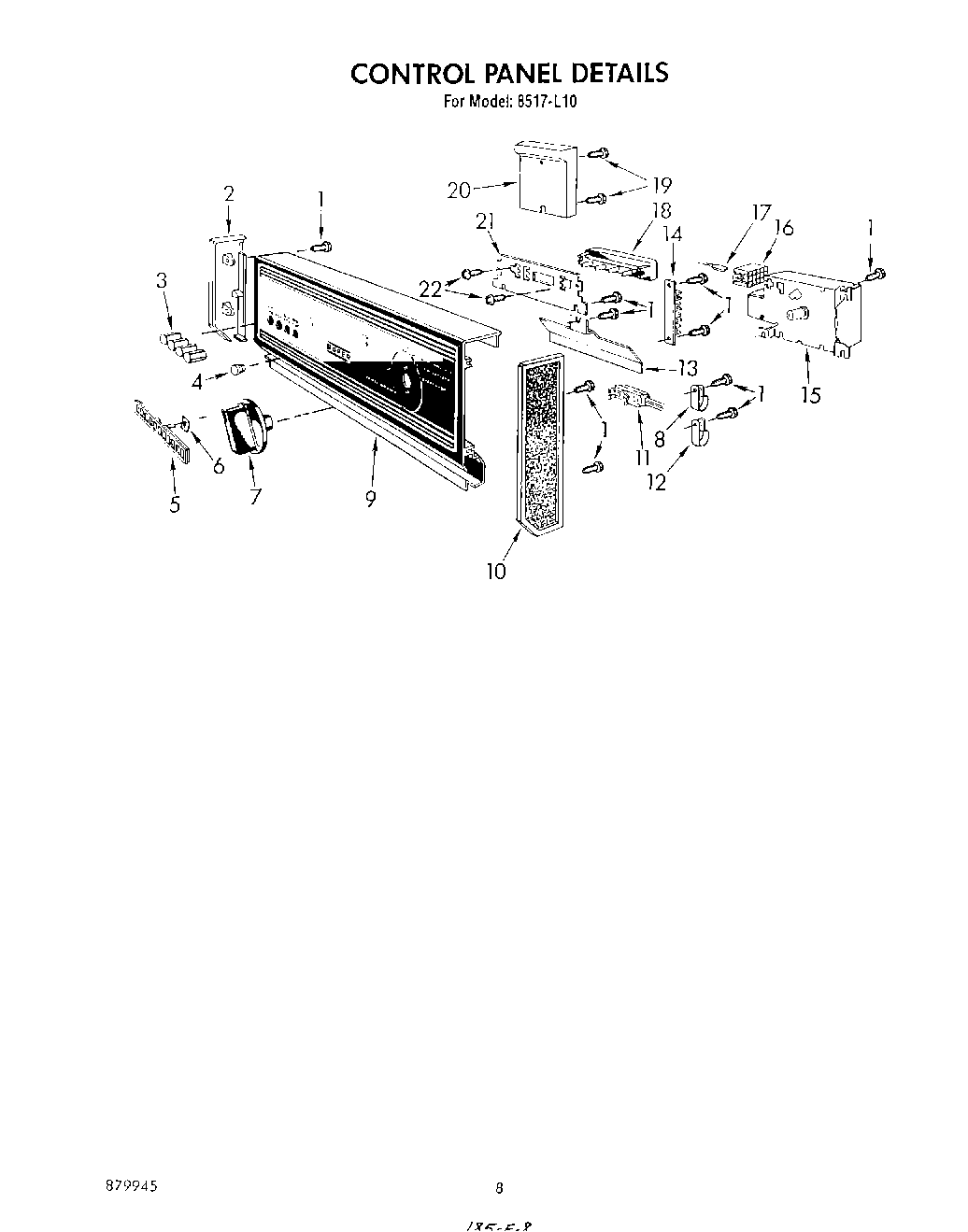

8517L10 06 – CONTROL PANEL

Products

Position	Product
1	Screw, No.8 x 7/16
2	End Cap (L.H) Black
3	Push Buttons
4	Lens
5	Vent Grille
6	Speednut
7	Control Knob
8	Clamp
9	Control Panel
10	End Cap (R.H) Black
11	Light Assembly
12	Clamp, Wire
13	Vent Slot Shield
14	Terminal Board Assembly
15	Timer
16	Timer Terminal Housing
17	Terminal
18	Switch
19	WP355214 Whirlpool Screw
20	Splash Pan
21	Bracket, Switch
22	Screw, 6-30 x 3/8
