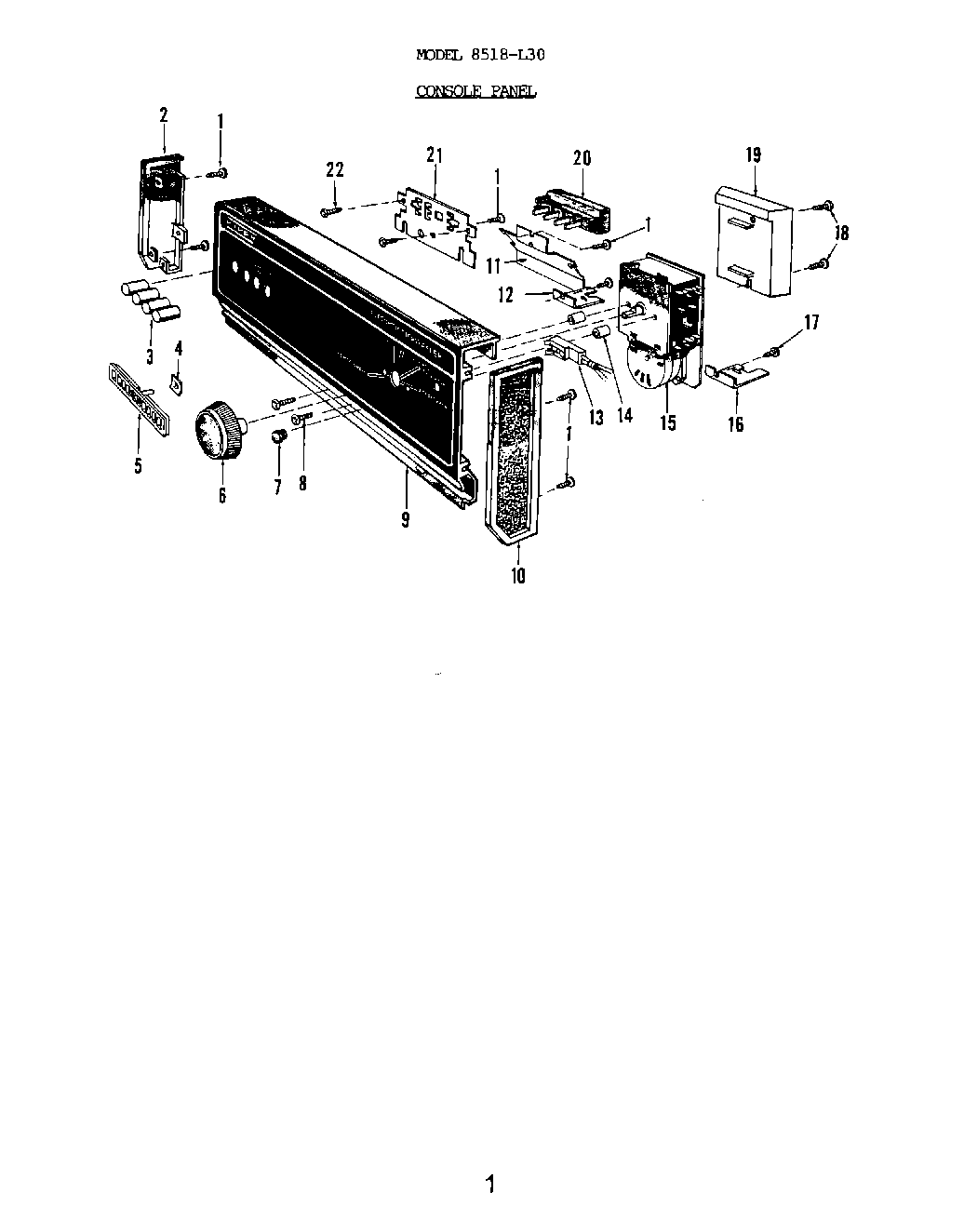

| 1 | Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl. |
| 2 | End Cap L.H. |
| 3 | Switch Button |
| 4 | Speednut |
| 5 | Vent Grille |
| 6 | Timer Knob |
| 7 | Lens |
| 8 | Screw No.10-32x27/32`` Lg. C.R. Truss Hd.Cad.Pl. |
| 9 | Console Panel |
| 10 | End Cap R.H. |
| 11 | Shield - Vent Slot |
| 12 | Timer Guard L.H. |
| 13 | Light Assembly-Pilot |
| 14 | Spacer-Timer |
| 15 | Timer |
| 16 | Guard-Timer R.H. |
| 17 | Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl. |
| 18 | Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St. |
| 19 | Splash Pan |
| 20 | Switch |
| 21 | Switch Bracket |
| 22 | Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl. |
