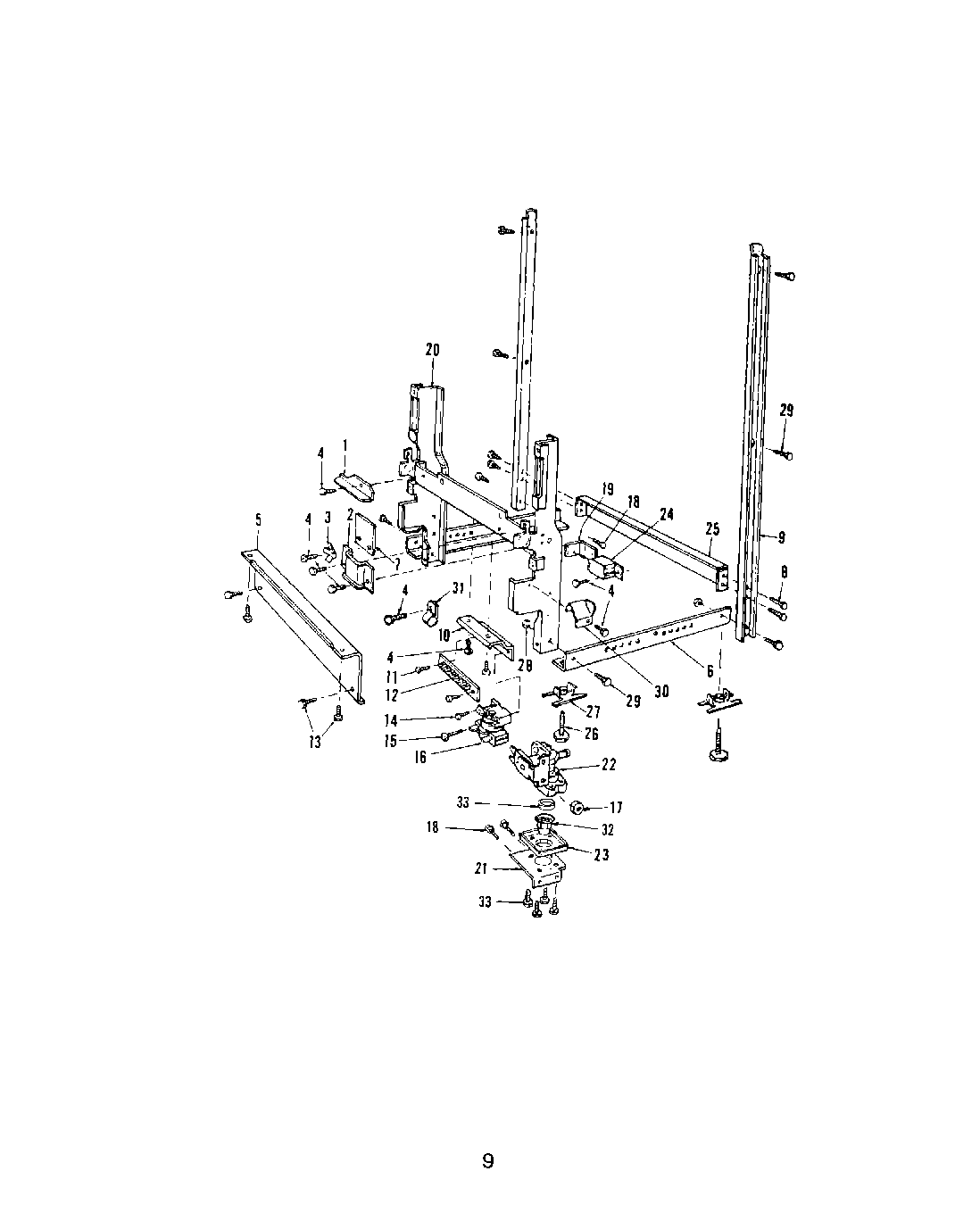

8518L30 07 – DETERGENT CUP

Products

Position	Product
1	Suds Deflector L.H.
2	Clamp – Wiring
3	Terminal-Grounding
4	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
5	Toeplate
6	Angle Base
7	Wire Shield
9	Channel-Side
10	Terminal Bracket
11	Screw
12	Terminal Block Assembly
13	Screw 1/4-20×1/2“Lg.Hex Washer Slotted Hd.Cad.Pl.
14	WP488234 Whirlpool Air Conditioner Screw
15	Screw No.8-32×1-1/4“Lg. C.R. Fillister Hd. Cad.Pl.
16	Motor Relay
17	Flow Washer
18	Screw No.10 Type Zx1/2“Lg. Slotted Hex Hd. Cad. Pl.
19	Junction Box Bracket
20	Hinge Weld Assembly
21	Mounting Bracket
22	Valve Assembly – Inlet
23	Fitting – Retainer
24	Junction Box Cover
25	Rear Brace
26	Levelers
27	Teenut – Snap- in
28	M0282005 Whirlpool Nut
29	Screw 1/4-20×1/2“ Lg Hex Washer Hd. Cad. Pl.
30	Suds Deflector R.H.
31	Clamp
32	Fitting – Inlet Valve
33	Gasket
34	Screw
