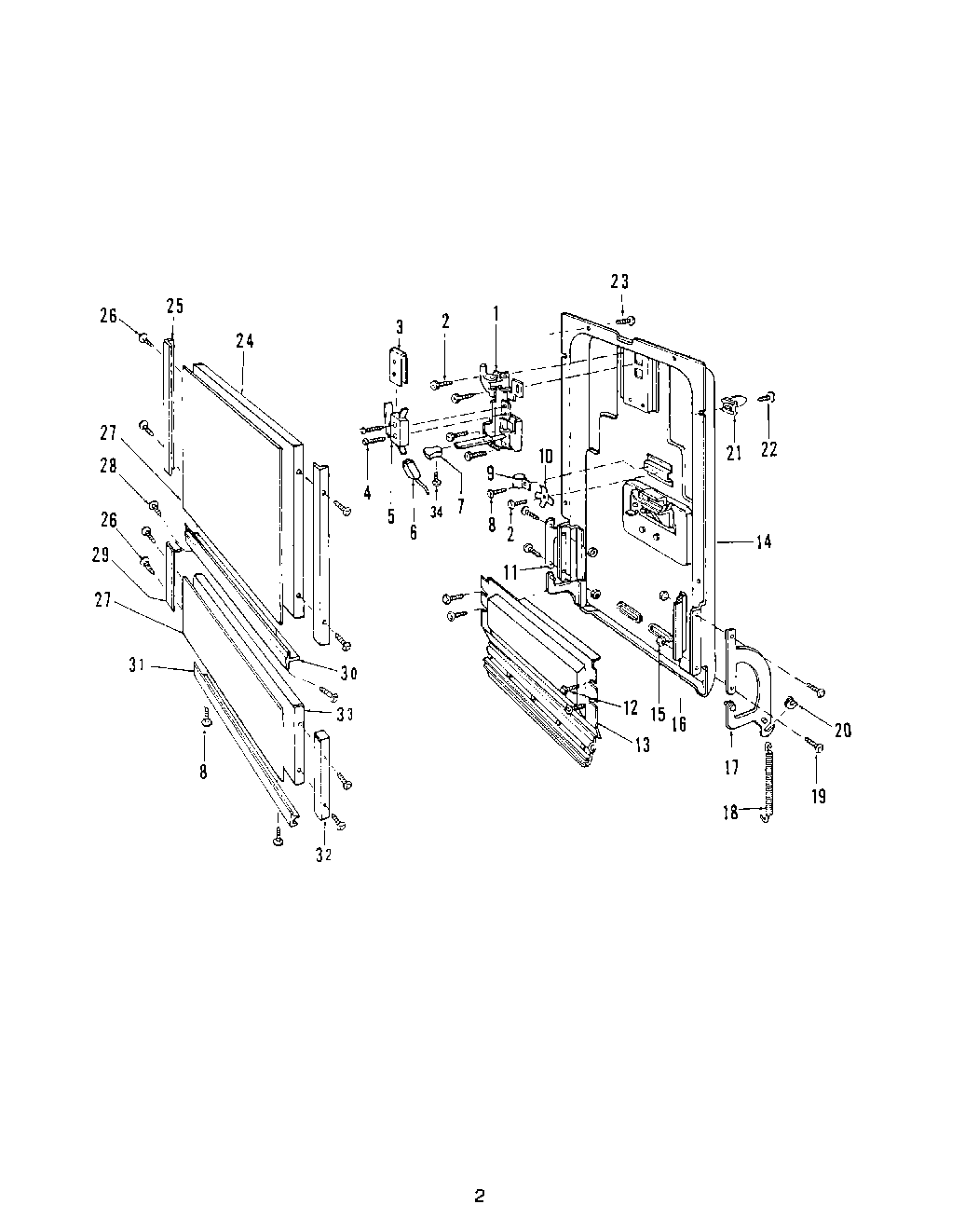

8518L40 03 – TUB

Products

Position	Product
1	Latch Assembly
2	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
3	Cover – Switch
4	Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
5	Switch
6	Terminal – Insulator
7	Latch Knob
8	Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
9	Clamp
10	Terminal-Grounding
11	Counterbalance Arm Assembly – L.H.
12	Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
13	Vent Plate
14	Porcelain Weld Assembly-Door
15	M0282009 Whirlpool Air Conditioner Nut
16	Counterbalance Arm Mounting Bracket
17	Counterbalance Arm R.H.
18	Door Spring
19	Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
20	Spring Pad
21	Guide – Door
22	Screw No.8×7/16“Lg. C.R. Truss Hd. St. St.
23	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
24	Door Panel Assembly
25	Trim – Door Side
26	WP74004005 Whirlpool Screw
27	Door Panel Insert (Almond & G. Wh) & Access Insert
28	Screw
29	Trim-Access Panel L.H. Side
30	Door Trim-Bottom
31	Trim Access Bottom
32	Trim – Access Panel R.H. Side
33	Access Panel Assembly
34	Screw No.8-32×7/32“ Lg. C.R. Truss Hd. Cad. Pl.
