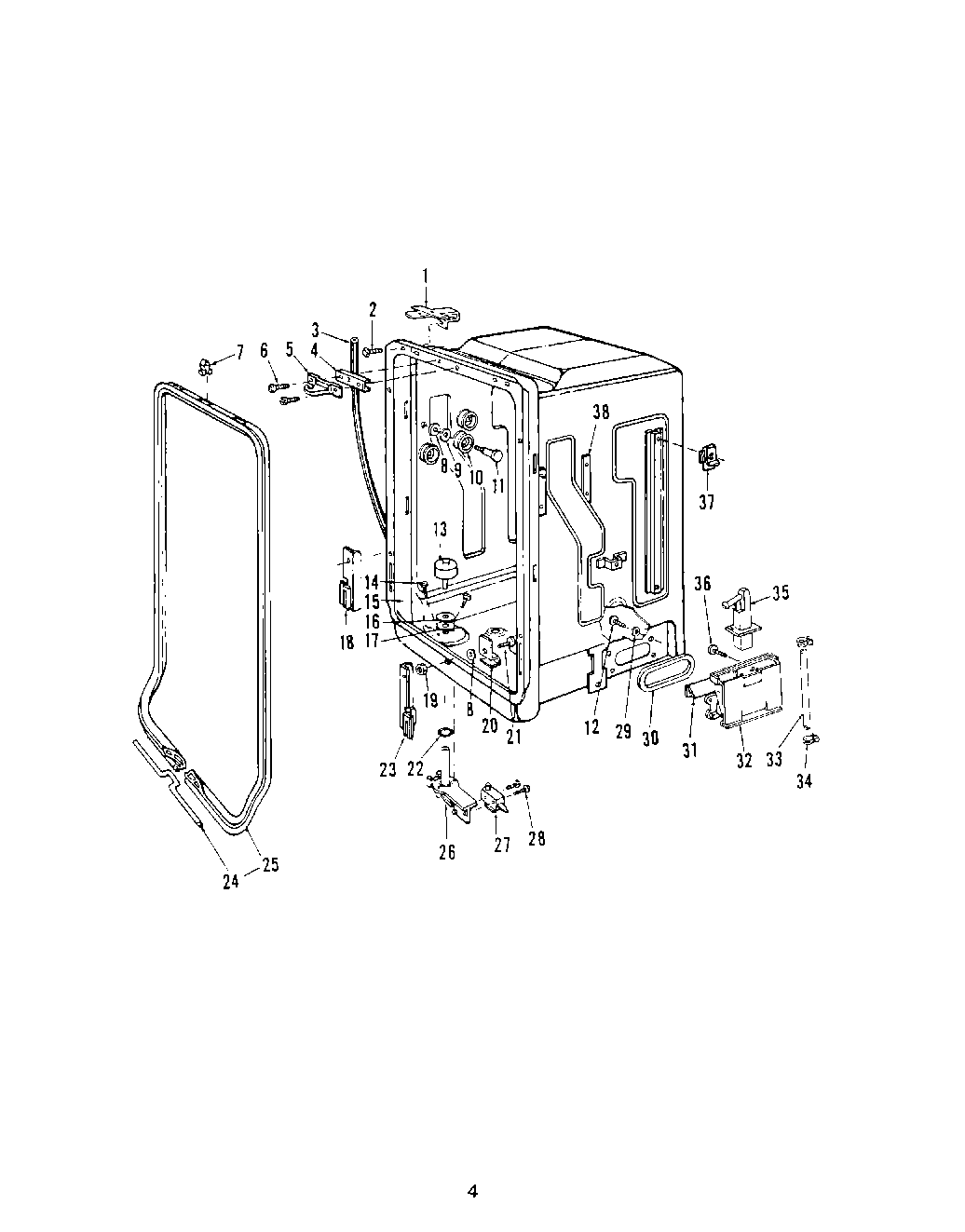

8518L40 04 – MOTOR, HEATER, AND SPRAY ARM

Products

Position	Product
1	Attach Clip
2	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
3	Drain Hose
4	Shim
5	Strike
6	WP22001496 Whirlpool Screw
7	Gasket Clip
9	Washer
10	Roller
11	Shoulder Screw
12	Screw No.8×5/8“Lg. C.R. Hex Hd. St. St.
13	Float
14	Screw No.10×1“Lg. Hex Washer Hd. St. St.
15	Tub Assembly
16	Plate – Float Tube
17	Gasket – Float Tube
18	Counterbalance Guide-L.H.
19	Nut
20	Gasket Clip
21	WP250830 Whirlpool Refrigerator Screw
22	“O“ Ring
23	Counterbalance Arm Guide R.H.
24	Wire-Gasket Junction
25	Gasket & Wire Assembly (Includes Item 24)
26	Float Assembly
27	Switch
28	Screw 4-40×5/8“ Lg. Hex Hd. Cad. Pl.
29	Sealing Washer
30	Gasket
31	Tapping Plate
32	Vent Stack
33	Tubing – Inlet
34	Clamp
35	Inlet Nozzle
36	Screw
37	Cage Nut
38	Tapping Plate
