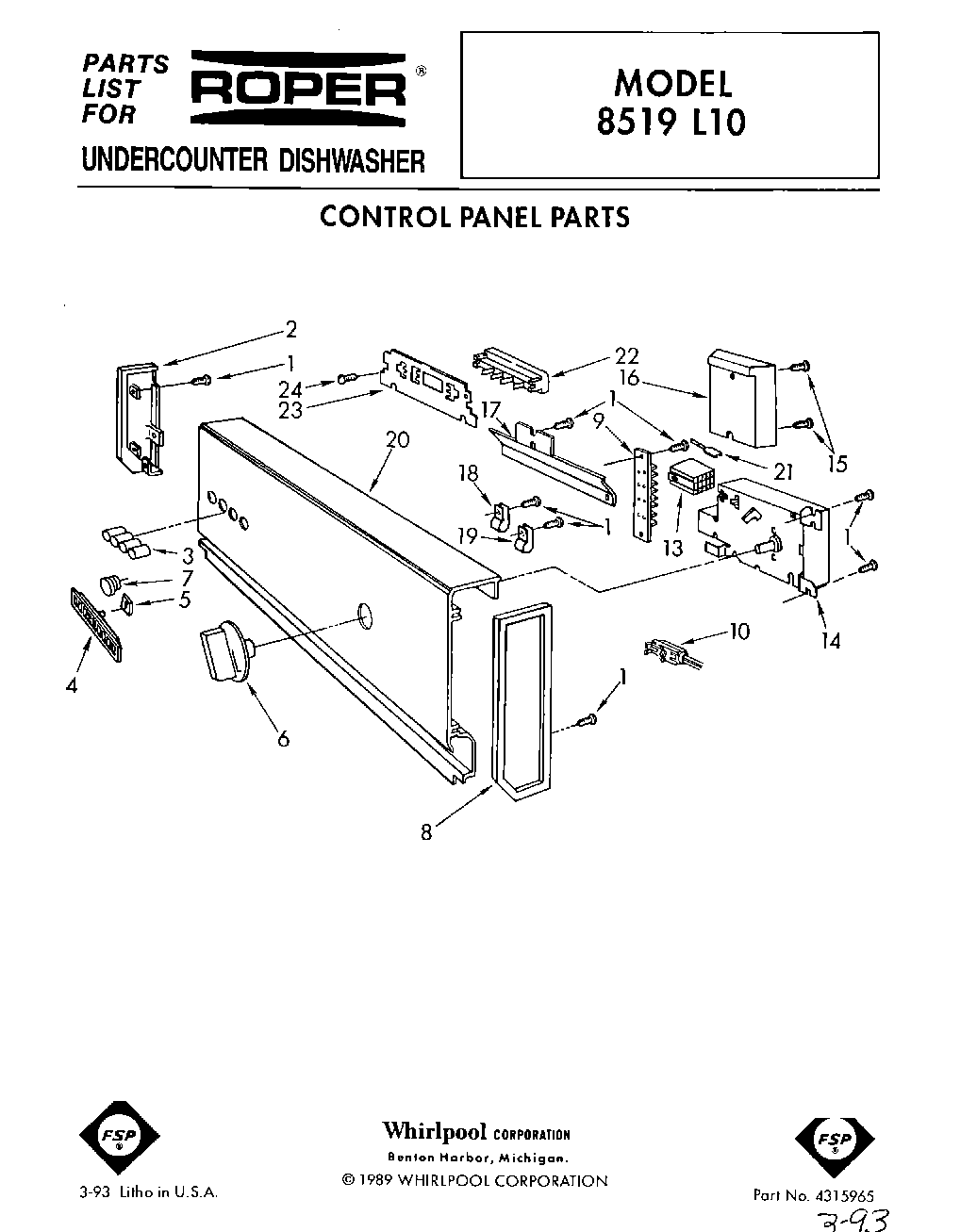

8519L10 01 – CONTROL PANEL

Products

Position	Product
1	Screw, 8 x 7/16
2	End Cap, L.H.
3	Push Buttons
4	Vent Grille
5	Speednut
6	Control Knob
7	Lens
8	End Cap, R.H.
9	Terminal Board
10	Light Assembly
13	Housing, Terminal
14	Timer
15	WP355214 Whirlpool Screw
16	Splash Pan
17	Shield, Vent Slot
18	Clamp, Wire
19	Clamp, Wire
20	Console Panel
21	Terminal
22	Switch
23	Bracket, Switch
24	Screw, 6-30 x 3/8
