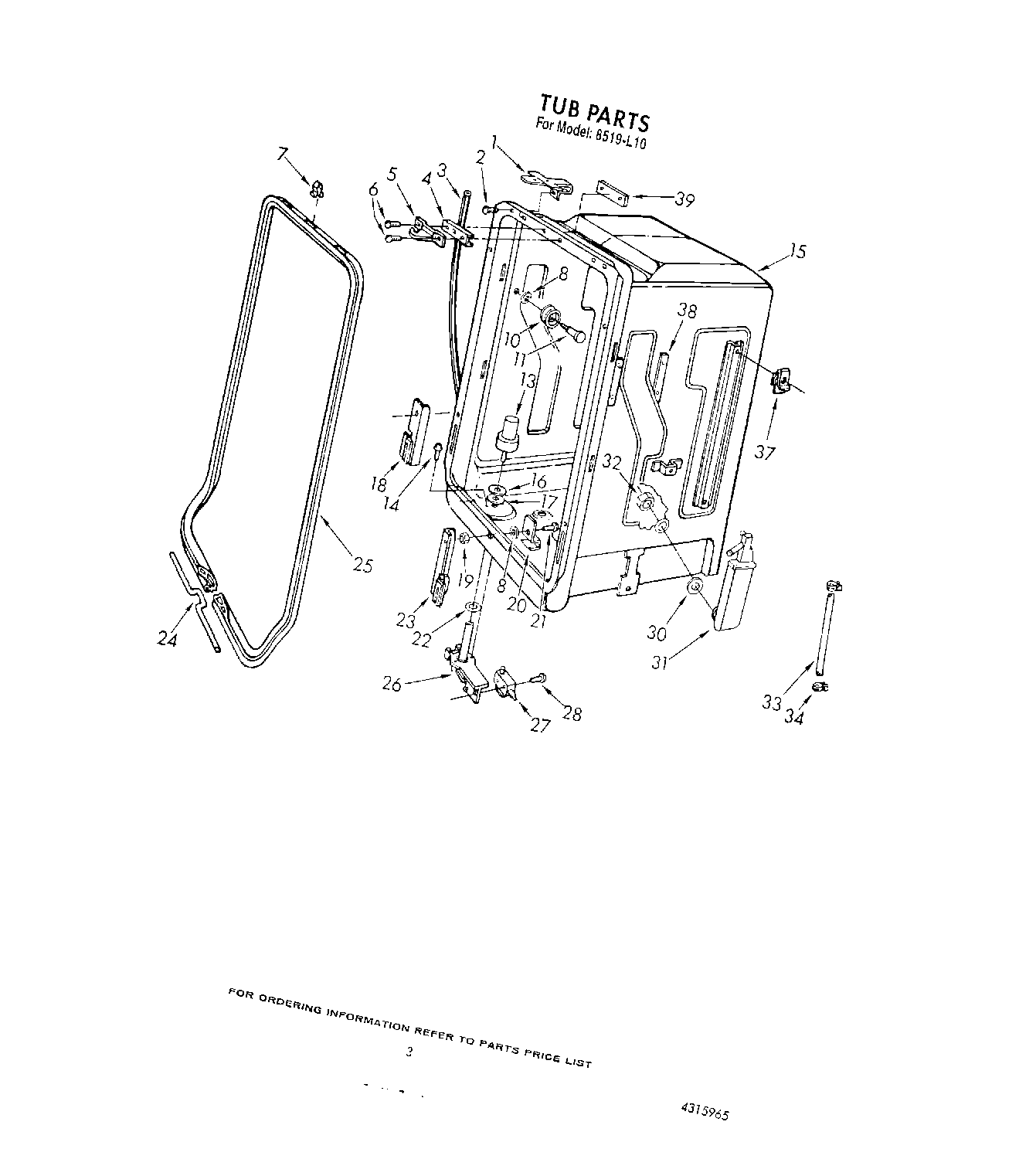

| 1 | Clip, Attach (2) |
| 2 | WP355214 Whirlpool Screw |
| 3 | Drain Hose |
| 4 | Shim |
| 5 | Strike |
| 6 | Screw, 10-24 x 3/4 |
| 7 | Gasket Clip Kit (Includes Item 20) |
| 8 | Sealing Washer |
| 10 | Roller (8) |
| 11 | Shoulder Screw (Includes Item 8) |
| 13 | Float |
| 14 | Screw, 10 x 1 |
| 15 | Tub & Gasket Assembly (Includes Item 25) |
| 16 | Float Tube Plate |
| 17 | Float Tube Gasket |
| 18 | Arm Guide, L.H. |
| 19 | WP486255 Whirlpool Air Conditioner Nut |
| 20 | Gasket Clip |
| 21 | Screw, 8-32 x 1/2 |
| 22 | ``O`` Ring |
| 23 | Arm Guide, R.H. |
| 24 | Junction Rod |
| 25 | Gasket, Tub (Includes Items 7 & 24) |
| 27 | Float Switch |
| 28 | Screw, 4-24 x 5/8 |
| 30 | Gasket, Inlet |
| 31 | Water Inlet |
| 32 | Nut |
| 33 | Tubing, Inlet (Includes Item 34) |
| 34 | Clamp (2) |
| 37 | Cage Nut |
| 38 | Tapping Plate (4) |
| 39 | Latch plate |
