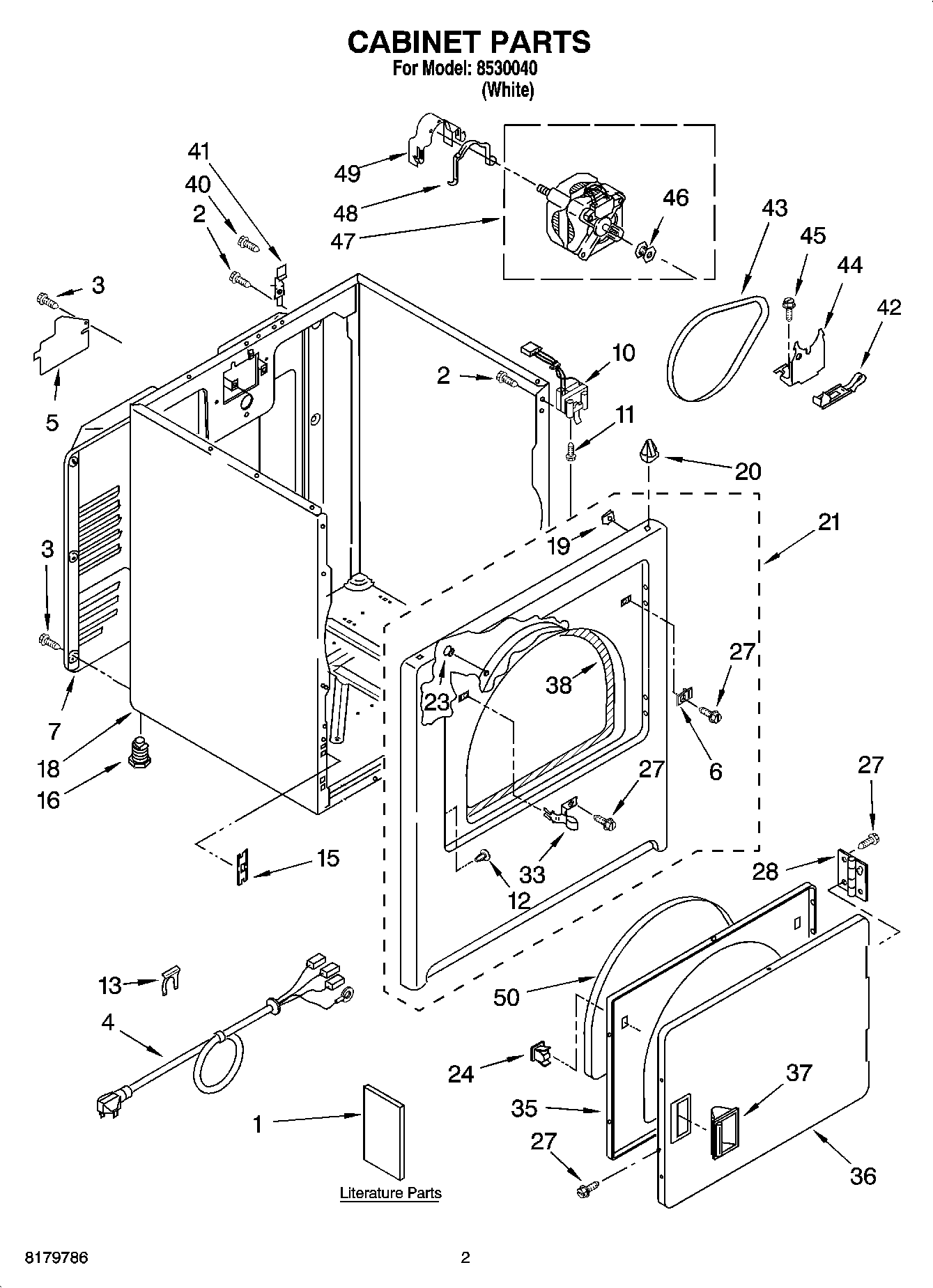

8530040 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Label, Wiring Diagram)
2	SCREW
3	WP693995 Whirlpool Screw
4	CORD-POWER
5	Cover, Block
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	W11712577 Whirlpool Clip
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
33	W11429589 Whirlpool Strike
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
38	W11035878 Whirlpool Bearing and Seal
40	W10850756 Whirlpool Screw
41	WP8066217 Whirlpool Hinge
42	WP691366 Whirlpool Dryer Idler Pulley Assembly
43	341241 Whirlpool Dryer Drum Belt
44	WP348780 Whirlpool Base
45	3400500 Whirlpool Screw
46	WP8066184 Whirlpool Dryer Motor Pulley
47	279827 Whirlpool Dryer Drive Motor
48	WP660658 Whirlpool Clamp
49	WP3404162 Whirlpool Clamp
50	SEAL-DOOR DRYER
