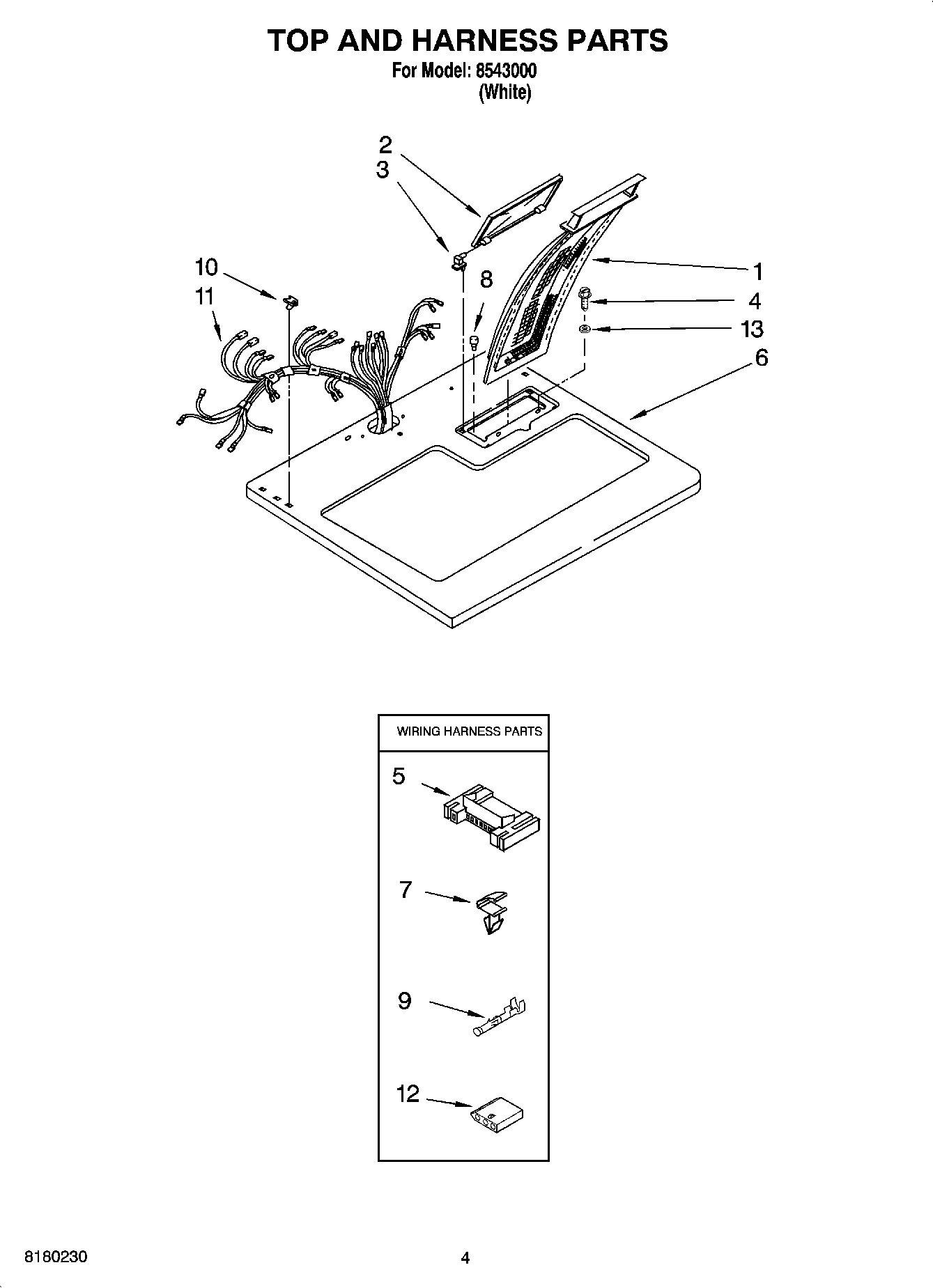

8543000 02 – TOP, HARNESS PARTS, AND OPTIONAL PARTS

8543000 02 – TOP, HARNESS PARTS, AND OPTIONAL PARTS

Written by

in

8543000 02 – TOP, HARNESS PARTS, AND OPTIONAL PARTS

Products

PositionProduct
1WP349639 Whirlpool Lint Filter
2Cover, Lint Screen
3WPW10044480 Whirlpool Hinge Assembly
3WPW10044470 Whirlpool Hinge Assembly
4W11693756 Whirlpool Screw Assembly
53395683 Whirlpool Connector
6Top
7WP3394427 Whirlpool Clip
8Bumper, Lint Lid
9WP94614 Whirlpool Terminal
10WP357213 Whirlpool Hinge Stopper
11Harness, Wiring
123936144 Whirlpool Connector
13799344 Whirlpool Refrigerator Paint
13W11224254 Whirlpool Test Kit
134392065 Whirlpool Dryer Maintenance Kit
13Washer
13350938 Whirlpool Spray Gun
1372017 Whirlpool Appliance Touch-Up Paint White
13350930 Whirlpool White Spray Paint
