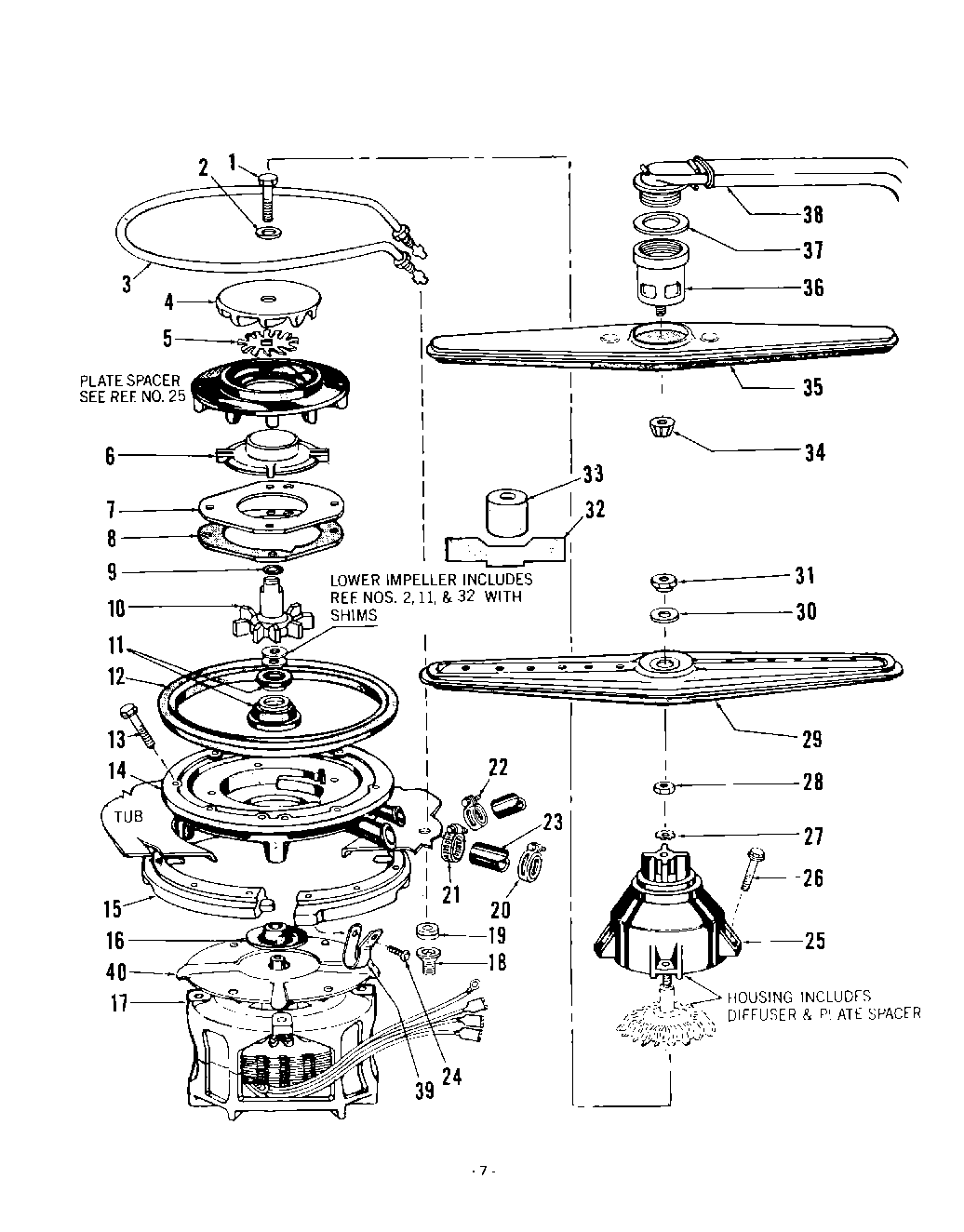

8565L00 05 – MOTOR, PUMP, SPRAY ARM

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater
4	Impeller – Upper
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Impeller-Lower Kit
11	Seal
12	Gasket-Pump
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Pump Housing
15	Clamp Ring (Includes Both Halves)
16	Slinger
17	Motor (Includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4“ Lg.Impeller Bolt, Motor, Sha
18	Nut 1/2“ 20 Brass
19	Grommet – Heater
20	Clamp
21	WP285655 Whirlpool Hose Clamp
22	Clamp
23	Hose – Connector
24	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
25	Pump Housing (Includes Diffuser & Plate Spacer)
26	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
27	Lockwasher No.10 External Teeth
28	Nut
29	xSpray Arm Assembly
30	Washer-Spray Arm
31	Nut
32	Gage – Seal Shim
33	Seal Installation Tool
34	Nut
35	Upper Spray Arm
36	Distributor
37	Gasket
38	Elbow & Tube Assembly
39	Clamp
40	Water Shield
