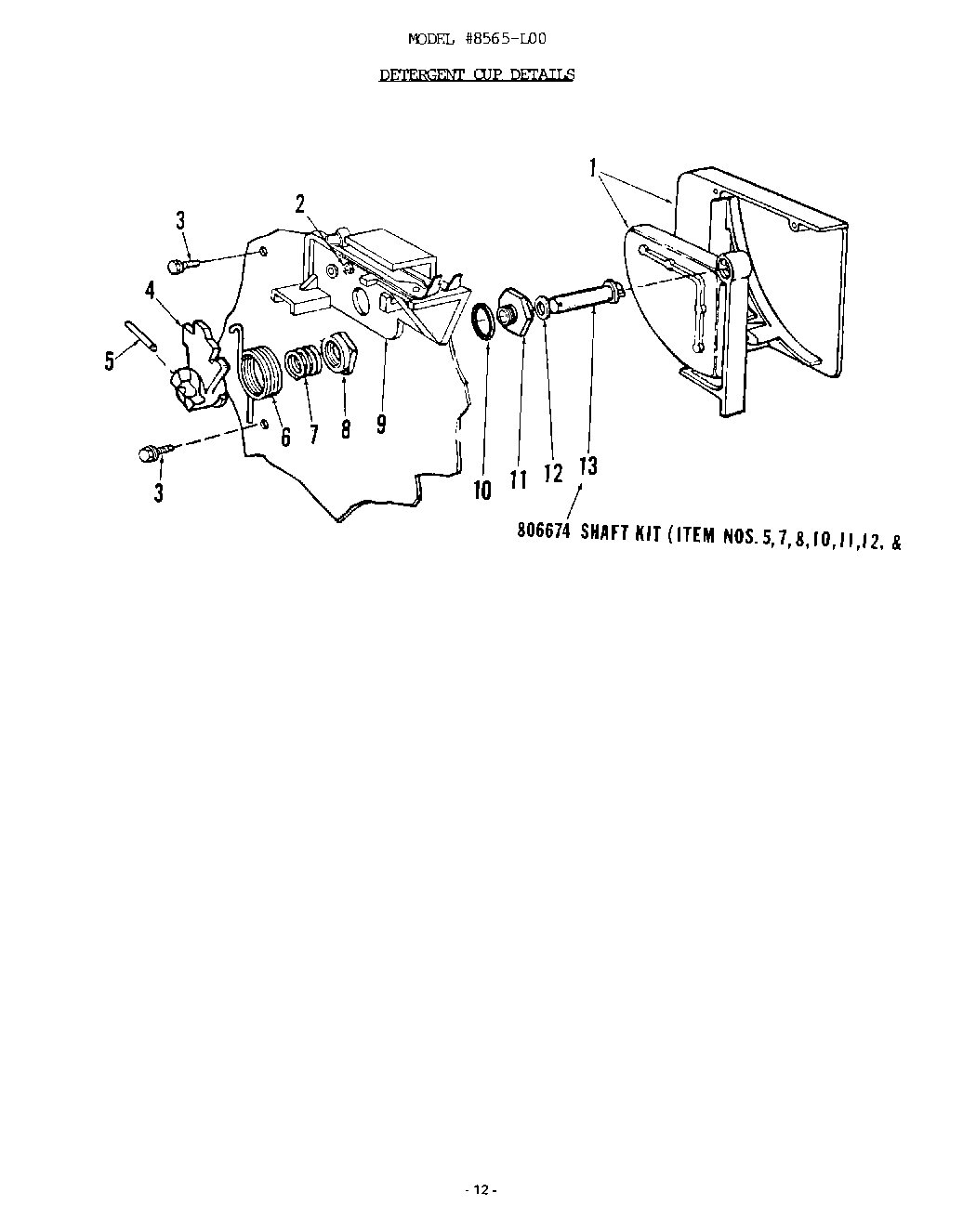

8565L00 08 – DETERGENT CUP

Products

Position	Product
1	Detergent Cup & Cover Kit
2	``O`` Ring
3	Screw No.8x5/8`` Lg. Hex Washer Hd. St. St.
4	Cam
5	Rollpin - Cam
6	Spring - Cam
7	Spring-Cam Compression
8	Nut
9	Trigger Assembly
10	Washer
11	Bushing
12	O-RING
13	Shaft
14	Shaft Kit (Includes Items 5, 8, 10, 11, 12 & 13)
