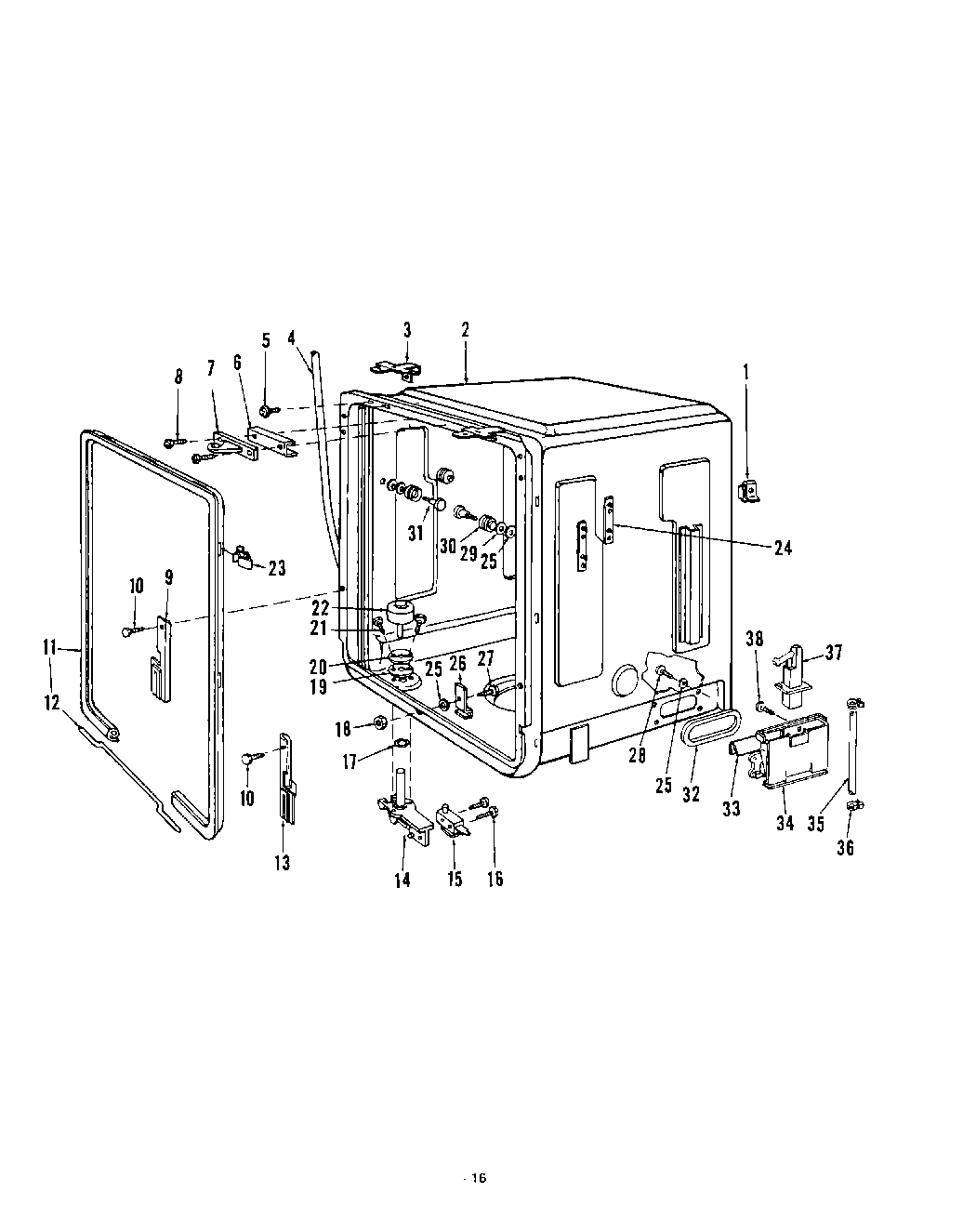

8565L00 11 – TUB

Products

Position	Product
1	Cage Nut
2	Tub & Gasket Assembly
3	Attach Clip
4	Drain Hose
5	Screw No.10×5/8“ Lg. Acorn Hex Washer Hd. Chrome Pl.
6	Shim
7	Strike
8	WP22001496 Whirlpool Screw
9	Counterbalance Arm Guide L.H.
10	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
11	Gasket & Wire Assembly (Includes Service No. 808344, Gasket Junction Wire)
12	Gasket Junction Wire
13	Counterbalance Arm Guide R.H.
14	Float Assembly
15	Switch
16	Screw 4-40×5/8“ Lg. Hex Hd. Cad. Pl.
17	“O“ Ring
18	Nut
19	Gasket – Float Tube
20	Plate – Float Tube
21	Screw No.10×1“Lg. Hex Washer Hd. St. St.
22	Float
23	Gasket Clip
24	Tapping Plate
25	Sealing Washer
26	Gasket Clip
27	WP250830 Whirlpool Refrigerator Screw
28	Screw No.8×5/8“Lg. C.R. Hex Hd. St. St.
29	Washer
30	Roller
31	Shoulder Screw
32	Gasket
33	Tapping Plate
34	Vent Stack
35	Tubing – Inlet
36	Clamp
37	Inlet Nozzle
38	Screw No.8Ax1/2“Lg. C.R. Flat Hd. Zinc Pl.
