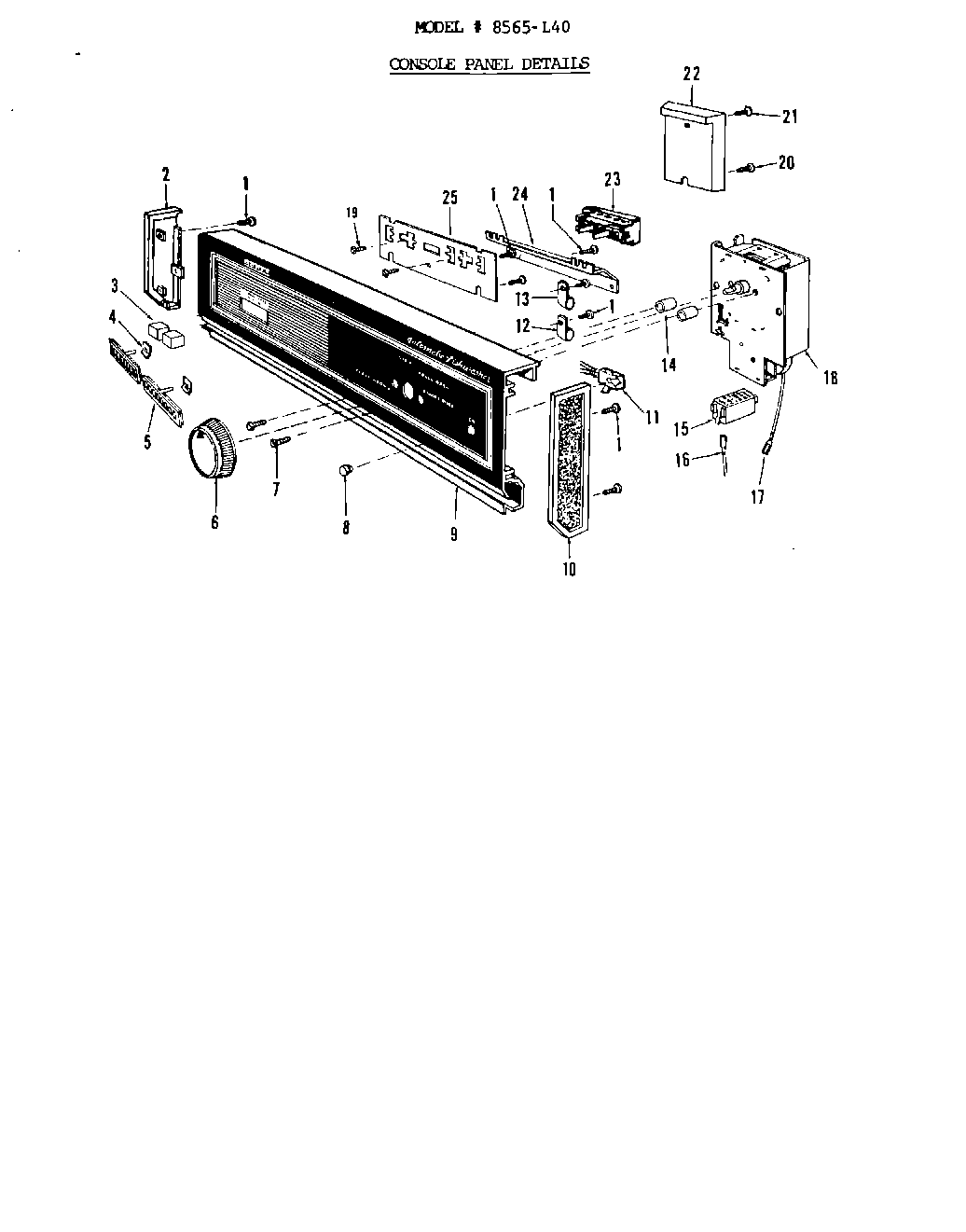

8565L40 02 – CONSOLE PANEL

Products

Position	Product
1	Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl.
2	End Cap L.H.
3	Pushbutton
4	Speednut
5	Vent Grille
6	Timer Knob
7	Screw No.10-32x1-17/64``Lg. C.R. Truss Hd. Cad. Pl.
8	Lens
9	Console Panel (Includes Key Nos. 4 & 5)
10	End Cap R.H.
11	xLight Assembly
12	Clamp
13	W10833902 Whirlpool Refrigerator Clamp
14	Spacer - Timer
15	Housing - Timer Terminal
16	Housing Terminal
17	Terminal - Timer
18	xTimer
19	Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl.
20	Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl.
21	Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St.
22	Splash Pan
23	xSwitch
24	Shield - Vent Slot
25	Switch Mounting Bracket
