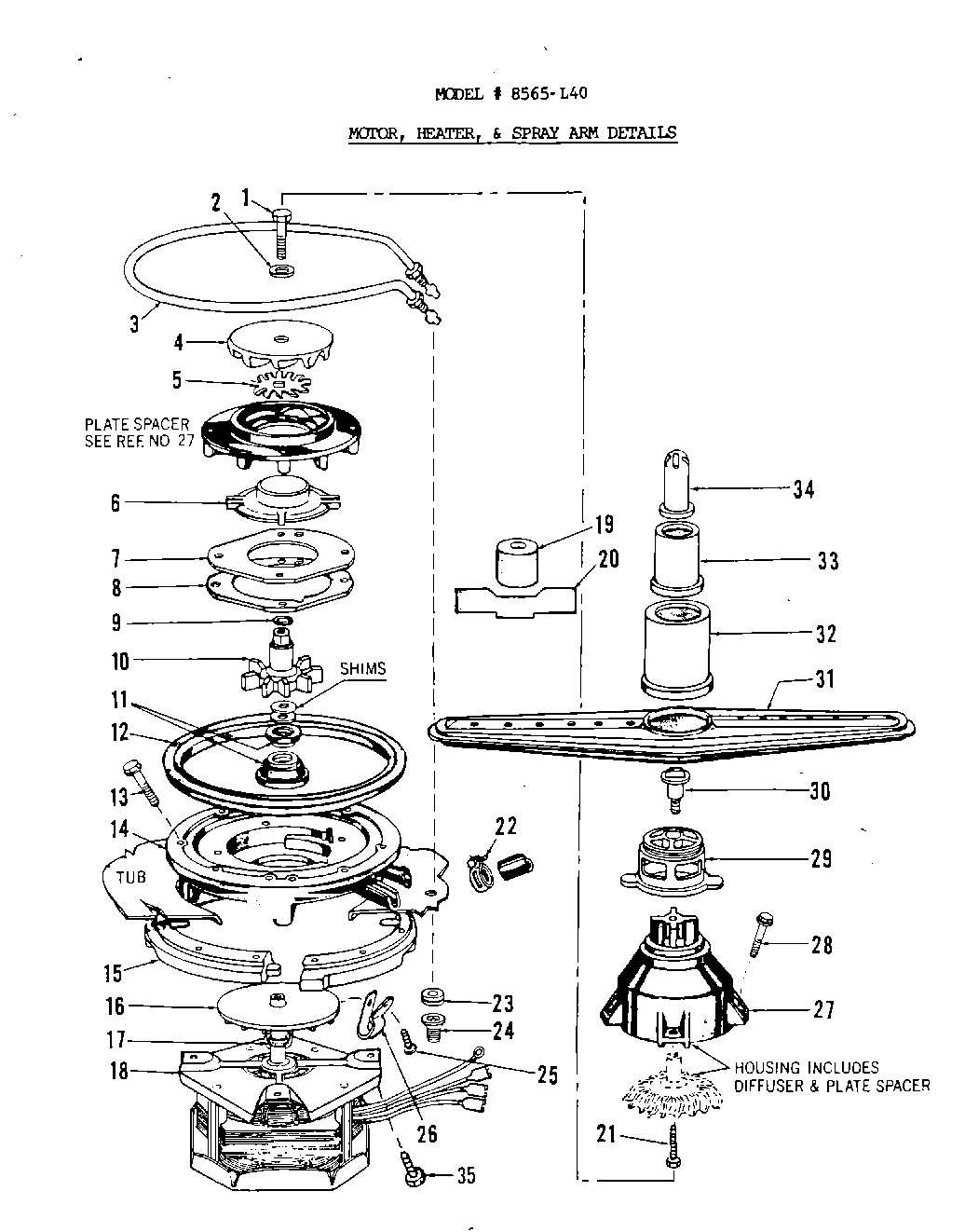

8565L40 05 – MOTOR, HEATER AND SPRAY ARM

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater (Includes Key Nos. 23 & 24)
4	Upper Impeller
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Pump Seal Kit (Includes Key Nos. 2, 4, 5, 9, 11)
11	Seal
12	Gasket
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Pump Housing
15	Clamp Ring (Includes Both Halves)
16	Watershield Fan (Includes Key No. 17)
17	Tolerance Ring
18	Motor Assembly (Includes Key Nos. 1,9,16, & 20)
19	Seal Installation Tool
20	Gage – Seal Shim
21	WP67006908 Whirlpool Refrigerator Screw
22	WP285655 Whirlpool Hose Clamp
23	Grommet – Heater
24	Nut 1/2“ 20 Brass
25	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
26	Clamp
27	Upper Impeller Housing Kit (Includes Key Nos. 6 & 7)
28	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
29	Bearing
30	Spray Arm Bolt
31	Spray Arm Assembly
32	Tower Base
33	Tower Section
34	Tower Tip
35	Screw No. 10 x 1 Lg. Hex Washer Hd. Cad. Pl.
