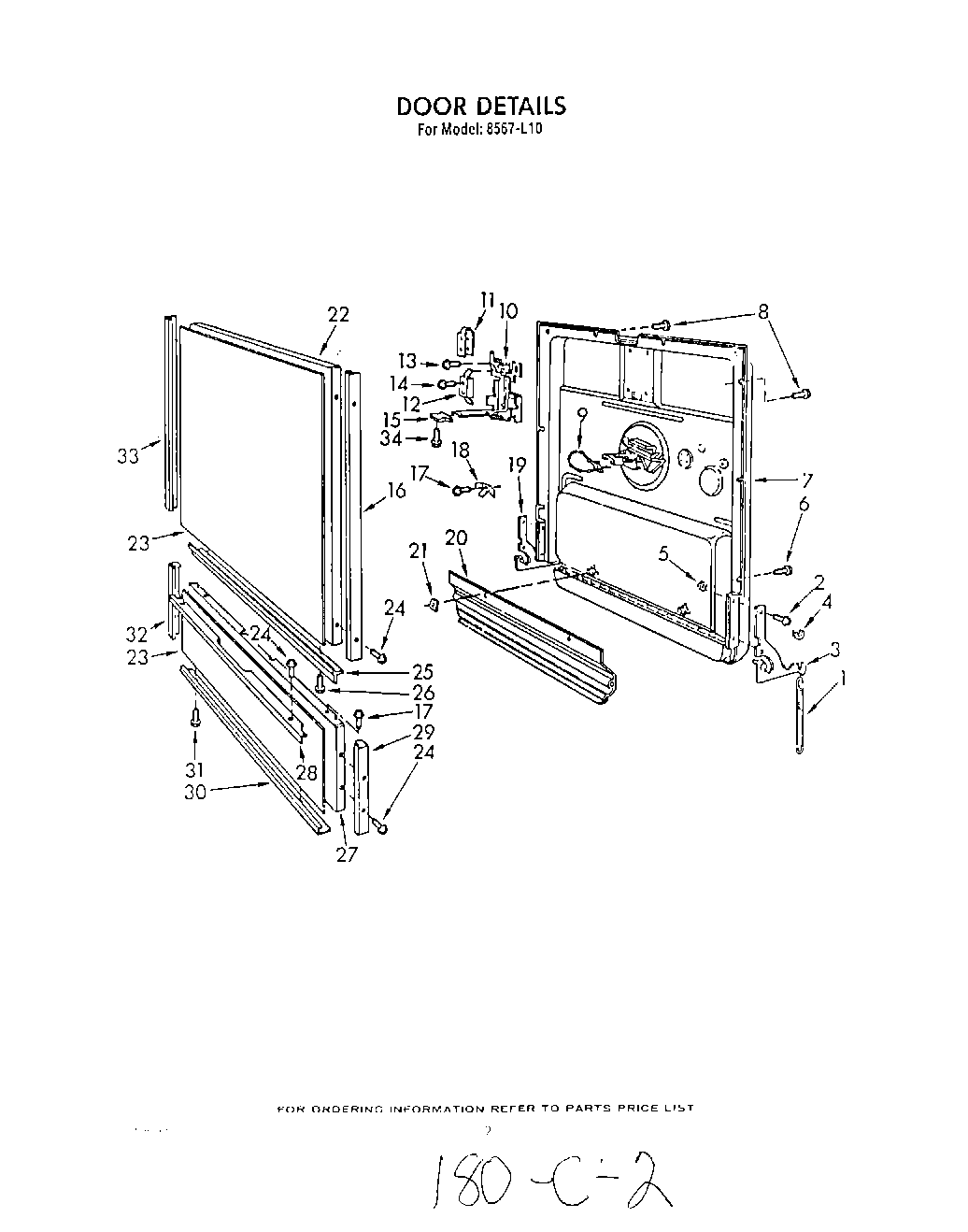

| 1 | Door Spring |
| 2 | Screw, No.8 x 5/8 |
| 3 | Counterbal Arm Assembly |
| 4 | Spring Pad |
| 5 | Nut |
| 6 | Screw, 8 x 7/16 |
| 7 | Door, Assembly |
| 8 | W11693756 Whirlpool Screw Assembly |
| 9 | WPW10339879 Whirlpool Wire Tie |
| 10 | Latch Assembly |
| 11 | Switch Cover |
| 12 | Switch |
| 13 | Screw, 8 x 5/8 |
| 14 | Screw, No.6-32 x 1 |
| 15 | Latch Knob |
| 16 | Door Panel Trim (R.H) |
| 17 | Screw, No.8 x 3/8 |
| 18 | Grounding Terminal |
| 19 | Counterbalance Arm Assembly (L.H) |
| 20 | Baffle Seal |
| 21 | Speednut |
| 22 | Door Panel (White) |
| 23 | Door & Access Panel Inserts (Coffee) |
| 23 | Door & Access Panel Inserts (White) |
| 23 | Door & Access Panel Inserts (Black) |
| 23 | Door & Access Panel Inserts (Wheat) |
| 23 | Door & Access Panel Inserts (Toast) |
| 23 | Door & Access Panel Inserts (Platinum) |
| 23 | Door & Access Panel Inserts (Avocado) |
| 23 | Door & Access Panel Inserts (Almond) |
| 24 | Screw, No.6 x 1/4 |
| 25 | Door Panel Trim (Bottom) |
| 26 | WP488729 Whirlpool Refrigerator Door Screw |
| 27 | Access Panel (White) |
| 28 | Access Panel Trim (Top) |
| 29 | Access Panel Trim (R.H) |
| 30 | Access Panel Trim (Bottom) |
| 31 | WP965173 Whirlpool Dishwasher Screw |
| 32 | Access Panel Trim (L.H) |
| 33 | Door Panel Trim (L.H) |
| 34 | Screw, 8-32 x 5/16 |
