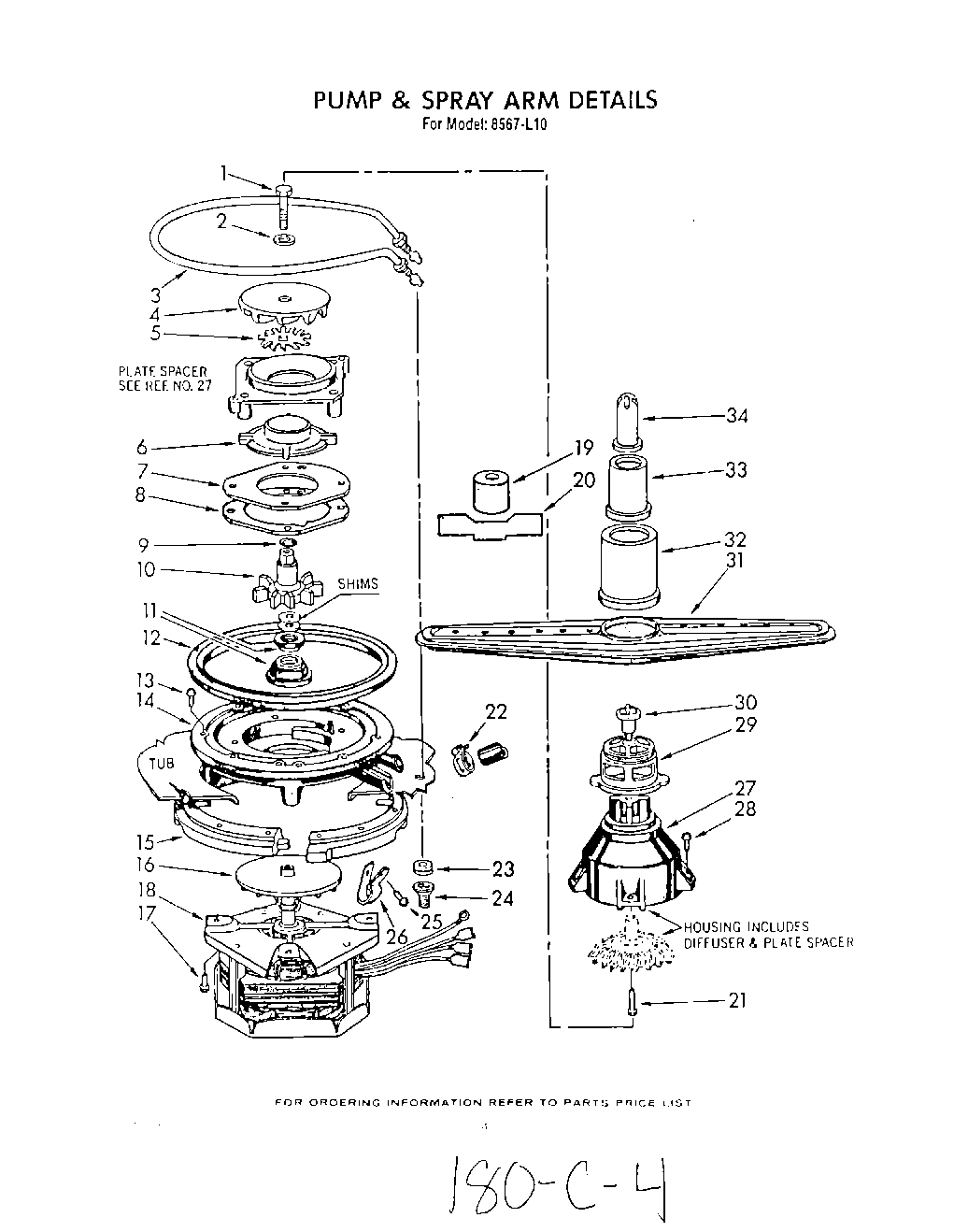

8567L10 03 – PUMP AND SPRAY ARM

8567L10 03 – PUMP AND SPRAY ARM

Written by

in

8567L10 03 – PUMP AND SPRAY ARM

Products

PositionProduct
1Screw, No.10-32 x 2 1/4
2Washer
3Heater (Includes Items 23 & 24)
4Upper Impeller
5Macerator Blade
6Impeller Shroud
7Pump Plate
8Pump Gasket
9O-Ring
10Pump Seal Kit (Includes Keys 2 4, 5, 9, 11 & 20)
11Water Seal
12Gasket
13Screw, 10 x 1
14Housing, Pump
15Clamp Ring (2)
16Watershield Assembly
17Screw, 10 x 1
18Motor Assembly (Includes Items 1, 9, 16 & 20)
19Seal Installation Tool
20Seal Shim Gage
21Screw, 8 x 3/4
22Hose Clamp
23Heater Grommet
24Heater Nut, 1/2
25W11693756 Whirlpool Screw Assembly
26Clamp, Wire
27Impeller Housing Kit (Includes Keys 6 & 7)
28Screw, 10 x 1-3/4
29Bearing
30Spray Arm Bolt
31Spray Arm Assembly
32Tower Base
33Tower Section
34Tower Tip
