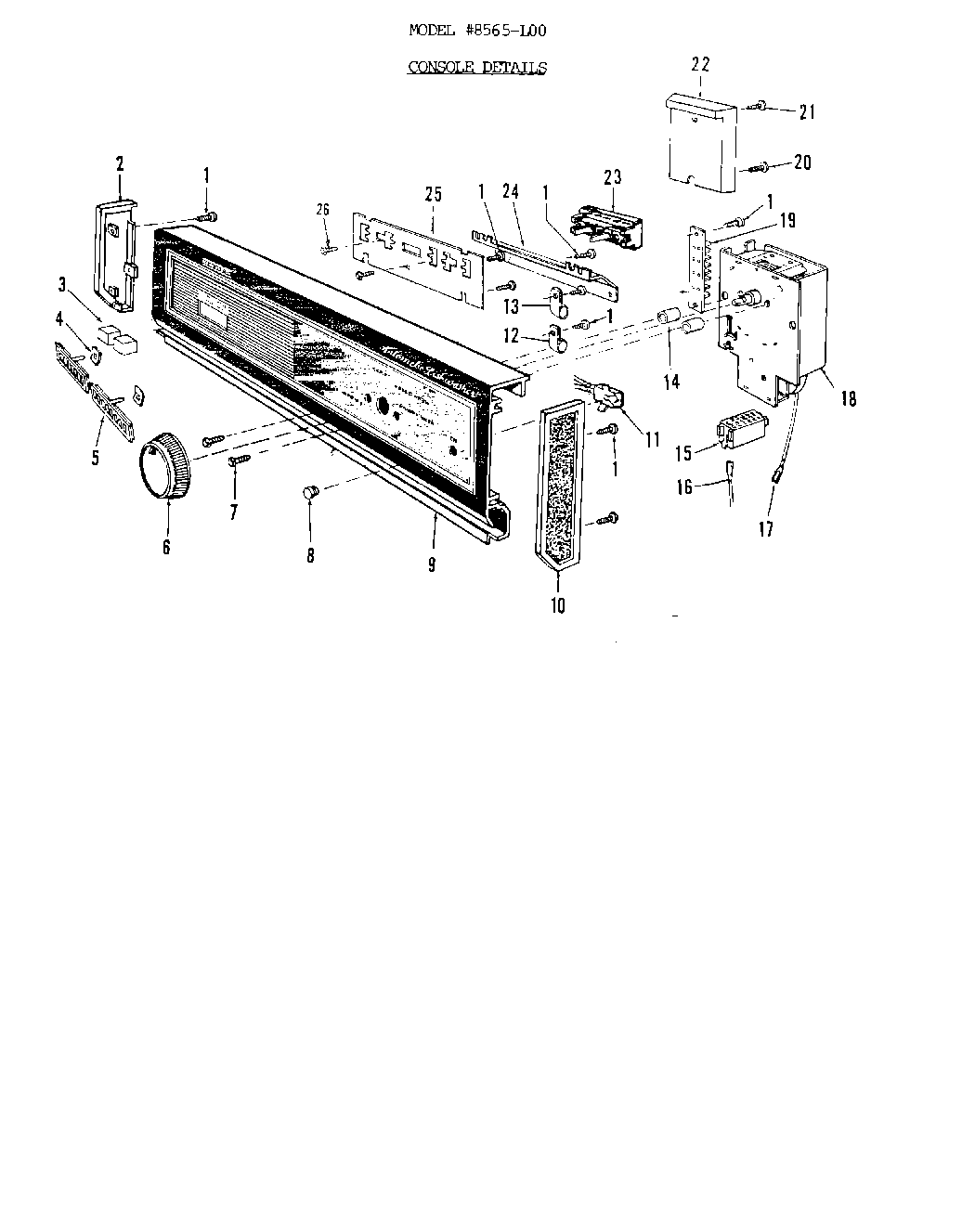

| 1 | Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl. |
| 2 | End Cap L.H. |
| 3 | Pushbutton |
| 4 | Speednut |
| 5 | Vent Grille |
| 6 | Timer Knob |
| 7 | Screw No.10-32x1-17/64``Lg. C.R. Truss Hd. Cad. Pl. |
| 8 | Lens |
| 9 | Console Panel |
| 10 | End Cap R.H. |
| 11 | Light Assembly-Pilot |
| 12 | Clamp |
| 13 | W10833902 Whirlpool Refrigerator Clamp |
| 14 | Spacer - Timer |
| 15 | Housing - Timer Terminal |
| 16 | Housing Terminal |
| 17 | Terminal - Timer |
| 18 | Timer |
| 19 | Terminal Board Assembly |
| 20 | Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl. |
| 21 | Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St. |
| 22 | Splash Pan |
| 23 | xSwitch |
| 24 | Shield - Vent Slot |
| 25 | Switch Mounting Bracket |
| 26 | Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl. |
