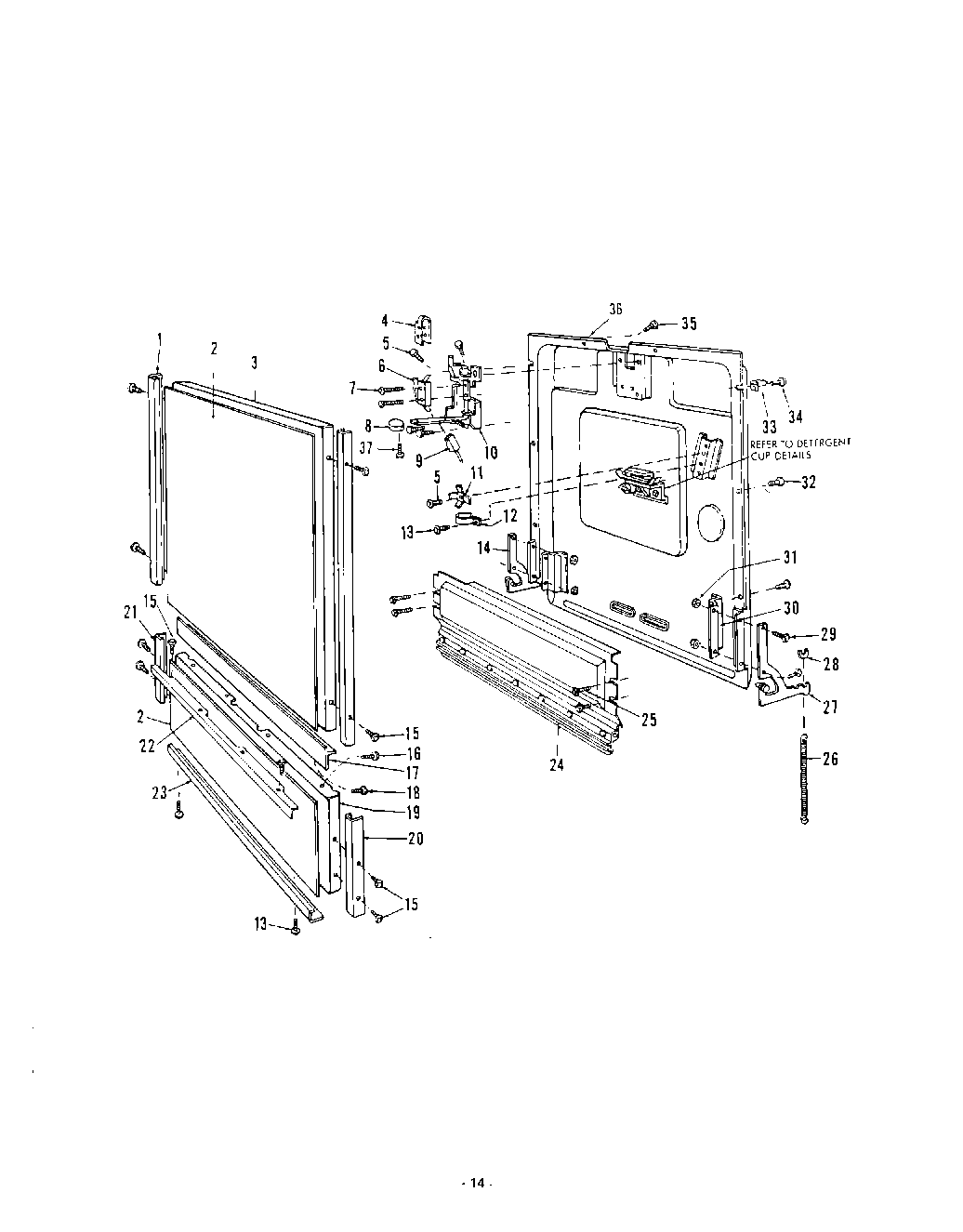

| 1 | Door Side Trim |
| 2 | Door & Access Insert Panels (Almond/Black) |
| 3 | Door Panel (White) |
| 4 | Cover - Switch |
| 5 | Screw No.8-32x5/16``Lg. C.R. Hex Hd. Cad. Pl. |
| 6 | Switch |
| 7 | Screw No.6-32x1``Lg. Hex Hd. Cad. Pl. |
| 8 | Latch Knob |
| 9 | Terminal - Insulator |
| 10 | Latch Assembly |
| 11 | Terminal-Grounding |
| 12 | Clamp |
| 13 | Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl. |
| 14 | Arm Assembly - Counterbalance L.H. |
| 15 | WP74004005 Whirlpool Screw |
| 16 | WP90767 Whirlpool Screw |
| 17 | Door Panel Trim-Bottom |
| 18 | Screw |
| 19 | Access Panel |
| 20 | Access Panel Trim-R.H. |
| 21 | Access Panel Trim - L.H. |
| 22 | Access Panel Trip - Top |
| 23 | Access Panel |
| 24 | Vent Plate Assembly |
| 25 | Screw No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl. |
| 26 | Door Spring (Includes Service No. 805884-Spring Pad (1)) |
| 27 | Counterbalance Arm Assembly - R.H. |
| 28 | Spring Pad |
| 29 | Screw No. 10-24 x 5/8`` Lg. C.R. Truss Hd. Chr. Pl. |
| 30 | Counterbalance Arm Mounting Bracket |
| 31 | M0282009 Whirlpool Air Conditioner Nut |
| 32 | Screw 8x1/2 Lg. C.R. Truss Hd. St. St. |
| 33 | Guide - Door |
| 34 | Screw No.8x5/8``Lg. C.R. Truss Hd. St. St. |
| 35 | Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St. |
| 36 | Weld & Finish Assembly |
| 37 | Screw No.8-32x7/32`` Lg. C.R. Truss Hd. Cad. Pl. |
