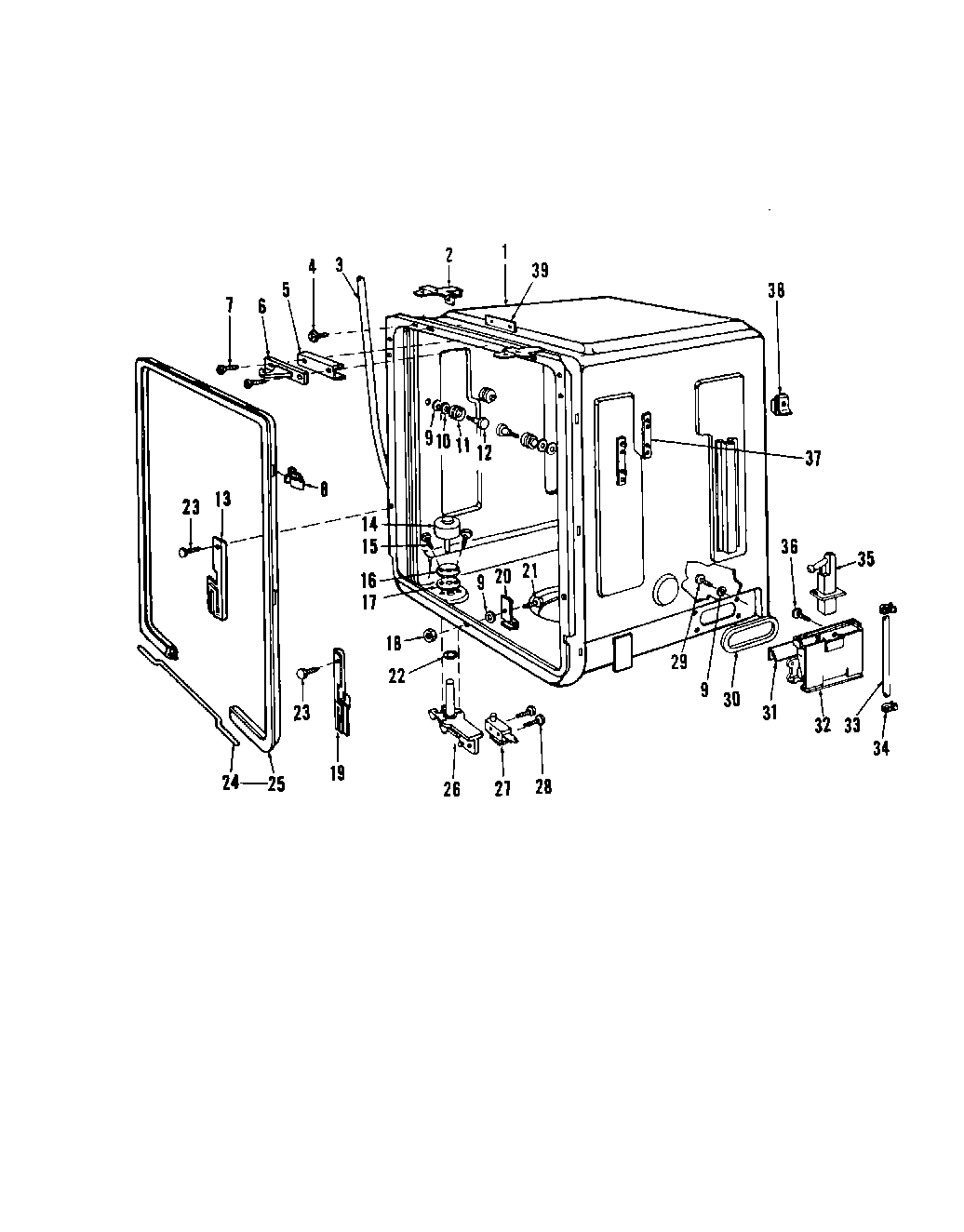

8575L10 05 – DETERGENT CUP

Products

Position	Product
1	Tub & Gasket Assembly
2	Attach Clip
3	Drain Hose
4	Screw No.8x7/16``Lg. C.R. Truss Hd. St. St.
5	Shim
6	Strike
7	WP22001496 Whirlpool Screw
8	Gasket Clip
9	Sealing Washer
10	Washer
11	Roller
12	Screw & Washer Kit (Includes Key No. 10)
13	Counterbalance Arm Guide L.H.
14	Float
15	Screw No.10x1``Lg. Hex Washer Hd. St. St.
16	Plate - Float Tube
17	Gasket - Float Tube
18	Nut
19	Counterbalance Arm Guide R.H.
20	Gasket Clip
21	WP250830 Whirlpool Refrigerator Screw
22	``O`` Ring
23	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
24	Gasket Junction Wire
25	Gasket & Wire Assembly (Includes Service No. 808344, Gasket Junction Wire)
26	Float Assembly
27	Switch
28	Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl.
29	Screw No.8x5/8``Lg. C.R. Hex Hd. St. St.
30	Gasket
31	Tapping Plate
32	Vent Stack
33	Tubing - Inlet
34	Clamp
35	Inlet Nozzle
36	Screw No.8Ax1/2``Lg. C.R. Flat Hd. Zinc Pl.
37	Tapping Plate
38	Cage Nut
39	Latch Tapping Plate
