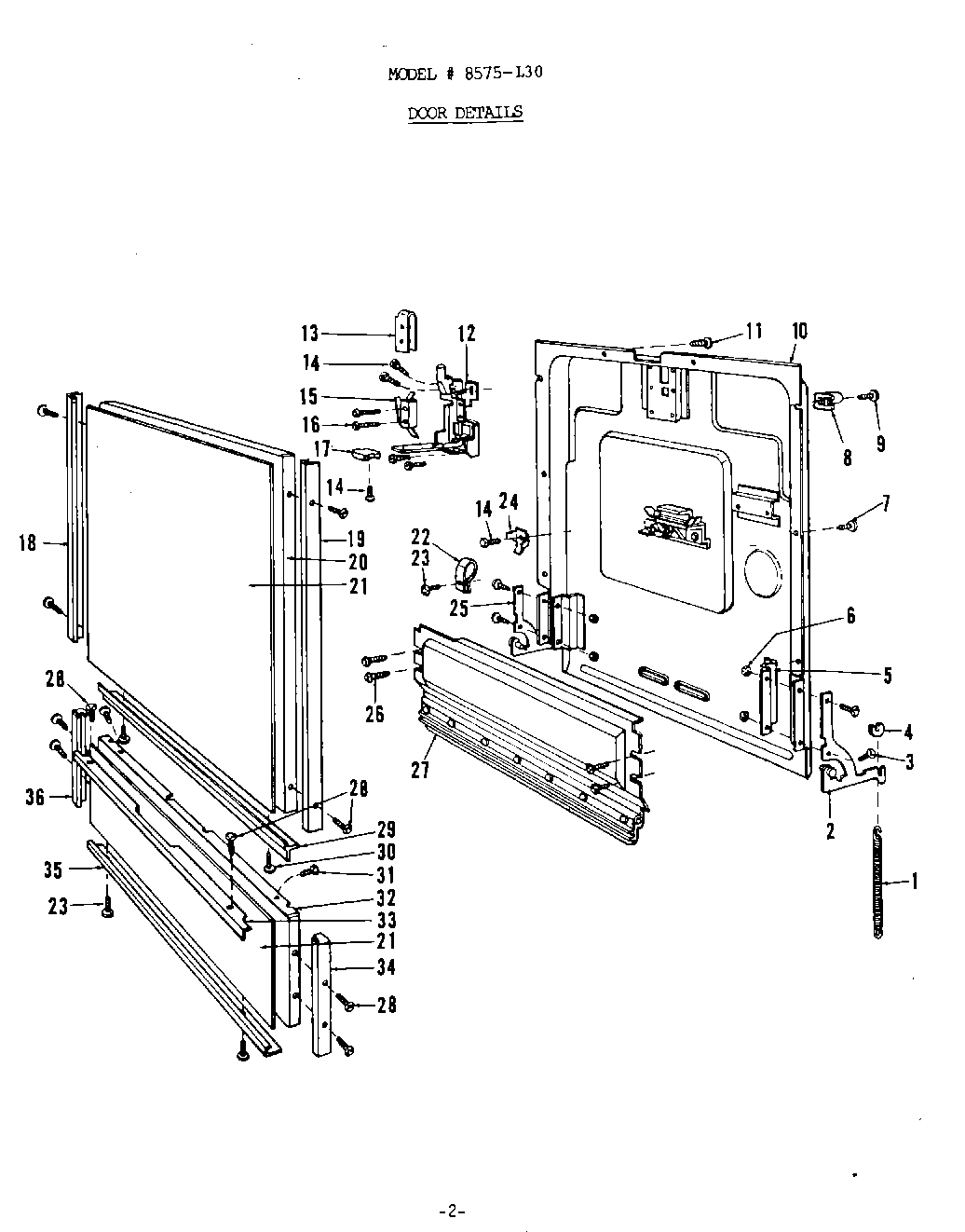

8575L20 03 – DOOR

Products

Position	Product
1	Door Spring (Includes Service No. 805884-Spring Pad (1))
2	Counterbalance Arm Assembly – R.H.
3	Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
4	Spring Pad
5	Counterbalance Arm Mounting Bracket
6	M0282009 Whirlpool Air Conditioner Nut
7	Screw 8×1/2 Lg. C.R. Truss Hd. St. St.
8	Guide – Door
9	Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
10	Weld & Finish Assembly
11	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
12	Latch Assembly
13	Cover – Switch
14	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
15	Switch
16	Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
17	Latch Knob
18	Door Panel Trim – L.H.
19	Door Panel Trim – R.H.
20	Door Panel (White)
21	Door & Access Panel Inserts (Black)
21	Door & Access Panel Inserts (Coffee)
21	Door & Access Panel Inserts (Almond)
21	Door & Access Panel Inserts (Toast)
21	Door & Access Panel Inserts (Wheat)
21	Door & Access Panel Inserts (White)
21	Door & Access Panel Inserts (Platinum)
21	Door & Acces Panel Inserts (Avocado)
22	Clamp
23	Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
24	Terminal-Grounding
25	Arm Assembly – Counterbalance L.H.
26	Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
27	Vent Plate Assembly
28	WP74004005 Whirlpool Screw
29	Door Panel Trim-Bottom
30	Screw
31	WP90767 Whirlpool Screw
32	WPL 809108
33	Access Panel Trip – Top
34	Access Panel Trim-R.H.
35	Access Panel
36	Access Panel Trim – L.H.
37	WPL 808926
