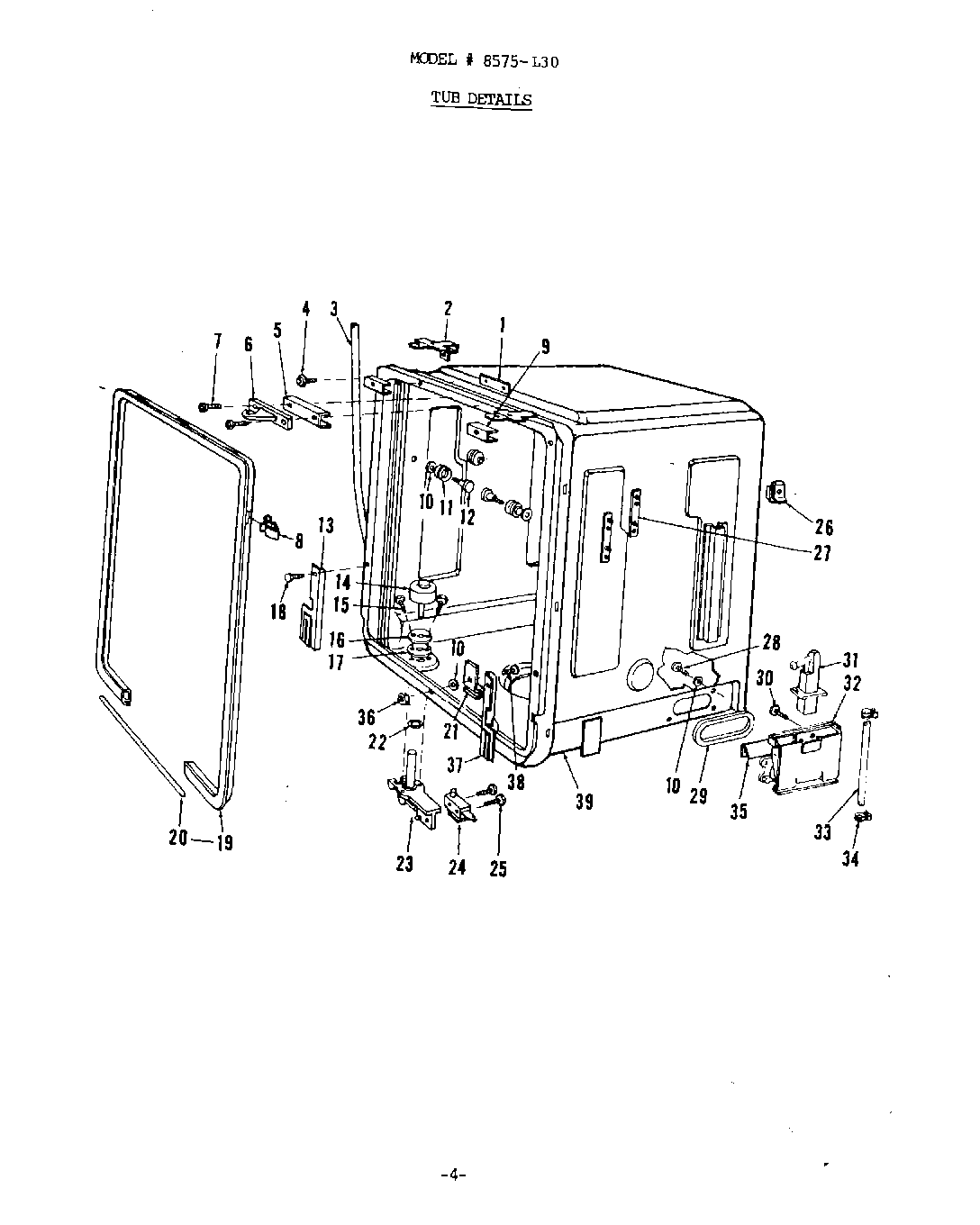

8575L20 04 – TUB

Products

Position	Product
1	Latch Tapping Plate
2	Attach Clip
3	Drain Hose, Corrugated
4	Screw No.8×7/16“Lg. C.R. Truss Hd. St. St.
5	Shim
6	Strike
7	WP22001496 Whirlpool Screw
8	Gasket Clip
9	Clip Shim
10	Washer
11	Roller
12	Screw & Washer Kit (Includes Key No. 10)
13	Counterbalance Arm Guide L.H.
14	Float
15	Screw No.10×1“Lg. Hex Washer Hd. St. St.
16	Plate – Float Tube
17	Gasket – Float Tube
18	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
19	Gasket & Wire Assembly (Includes Key Nos. 8 & 20)
20	Gasket Junction Wire
21	Gasket Clip
22	“O“ Ring
23	Float Assembly
24	Switch
25	Screw 4-40×5/8“ Lg. Hex Hd. Cad. Pl.
26	Cage Nut
27	Tapping Plate
28	Screw No.8×5/8“Lg. C.R. Hex Hd. St. St.
29	Gasket
30	Screw No.8Ax1/2“Lg. C.R. Flat Hd. Zinc Pl.
31	Inlet Nozzle
32	Vent Stack
33	Tubing – Inlet
34	Clamp
35	Tapping Plate
36	Nut
37	Counterbalance Arm Guide R.H.
38	WP250830 Whirlpool Refrigerator Screw
39	Tub & Gasket Assembly
