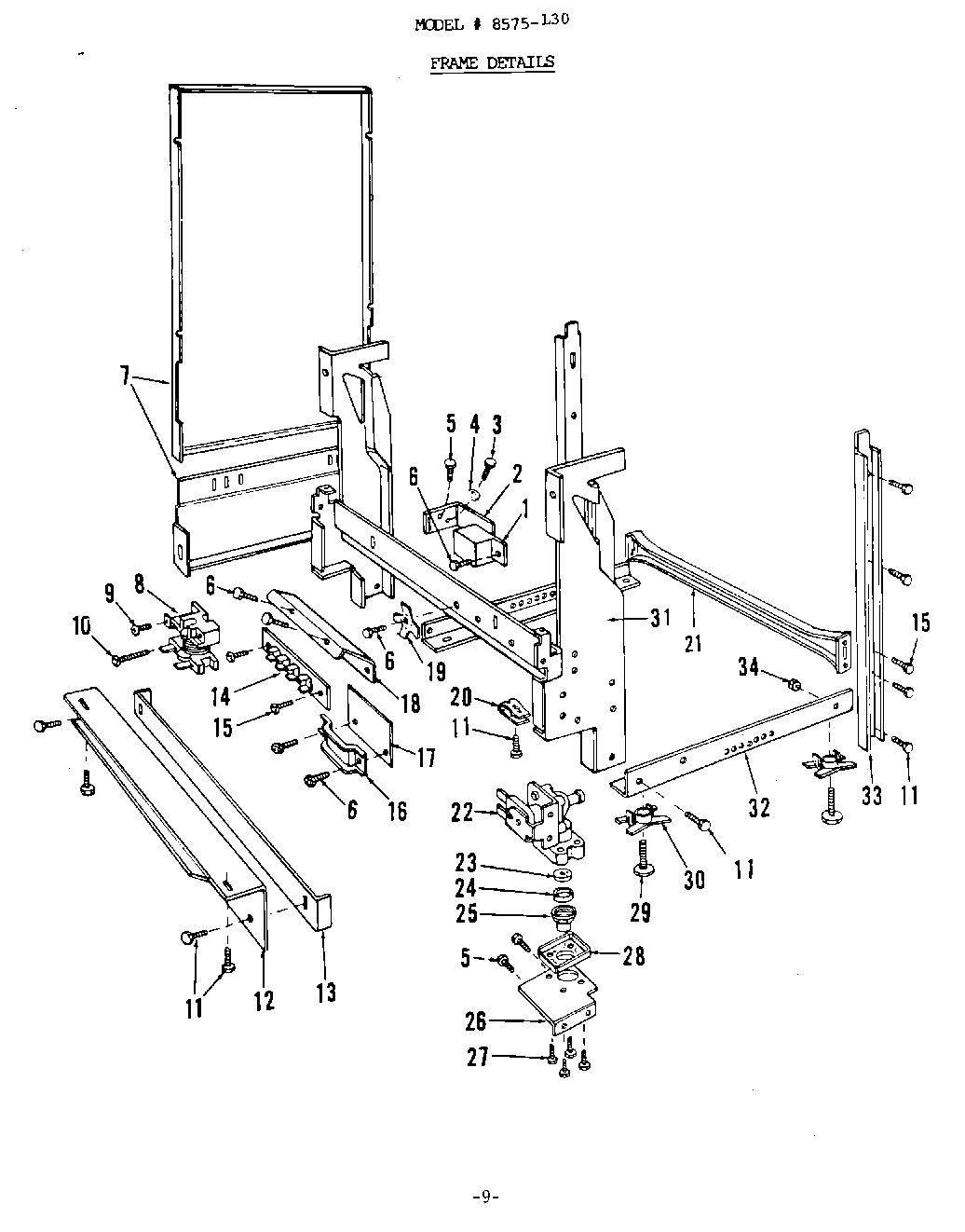

8575L20 07 – FRAME

Products

Position	Product
1	Junction Box Cover
2	Junction Box Bracket
3	Screw 10-32×1/2 C.R. Hex Washer Hd. Cad. Pl.
4	Washer
5	Screw No. 10B x 1/2“ Lg. Hex Slot Hd. Cad.
6	WP90767 Whirlpool Screw
7	Side Panel Kit (White)
7	Side Panel Kit (Coffee)
7	Side Panel Kit (Avocado)
7	Side Panel Kit (Wheat)
7	Side Panel Kit (Almond)
8	Motor Relay
9	WP488234 Whirlpool Air Conditioner Screw
10	Screw No.8-32×1-1/4“Lg. C.R. Fillister Hd. Cad.Pl.
11	Screw 1/4-20×1/2“Lg.Hex Washer Slotted Hd.Cad.Pl.
12	Toeplate
13	Adjustable Toeplate
14	Terminal Block Assembly
15	Screw
16	Clamp – Wiring
17	Wire Shield
18	Terminal board Bracket
19	Terminal-Grounding
20	Speednut
21	Rear Brace
22	xWater Valve Kit (Includes Key Nos. 23 & 24)
23	Flow Washer
24	Gasket
25	Fitting – Inlet Valve
26	Mounting Bracket
27	Screw
28	Fitting – Retainer
29	Levelers
30	Teenut – Snap- in
31	Hinge Weld Assembly
32	Side Angle
33	Side Channel
34	M0282005 Whirlpool Nut
