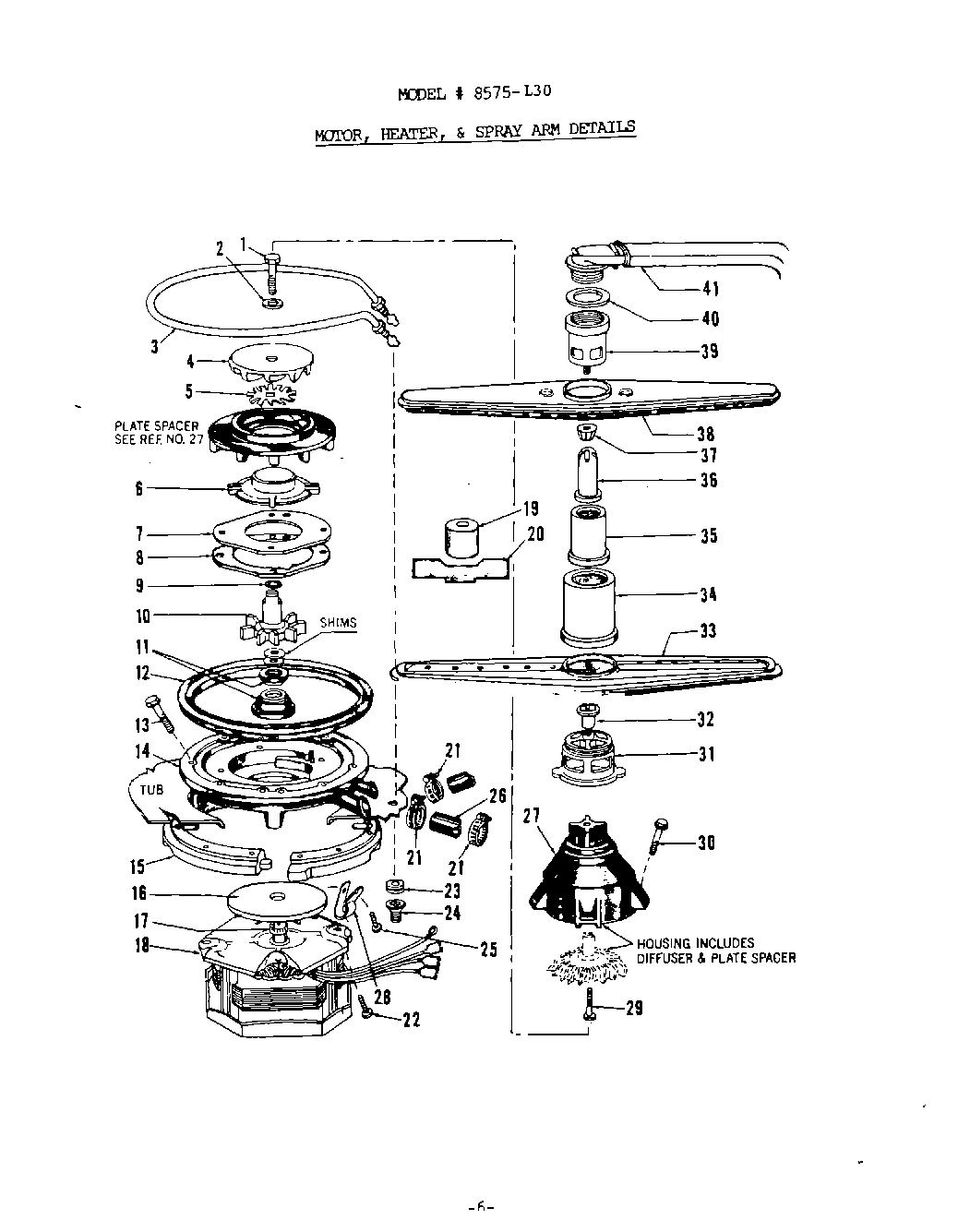

8575L30 05 – MOTOR, HEATER AND SPRAY ARM

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater (Includes Key Nos. 23 & 24)
4	Upper Impeller
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Pump Seal Kit (Includes Key Nos. 2,4,5,9,11,& 20)
11	Seal
12	Gasket
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Pump Housing
15	Clamp Ring (Includes Both Halves)
16	Watershield Fan (Includes Key No. 17)
17	Tolerance Ring
18	Motor Assembly (Includes Key Nos. 1,9,16, & 20)
19	Seal Installation Tool
20	Gage – Seal Shim
21	WP285655 Whirlpool Hose Clamp
22	Screw No. 10 x 1 Lg. Hex Washer Hd. Cad. Pl.
23	Grommet – Heater
24	Nut 1/2“ 20 Brass
25	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
26	Hose – Connector
27	Upper Impeller Housing Kit (Includes Key Nos. 6 & 7)
28	Clamp
29	WP67006908 Whirlpool Refrigerator Screw
30	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
31	Bearing
32	Spray Arm Bolt
33	Spray Arm Assembly
34	Tower Base
35	Tower Section
36	Tower Tip
37	Nut
38	Spray Arm Assembly
39	Distributor
40	Gasket
41	Elbow & Tube Assembly
