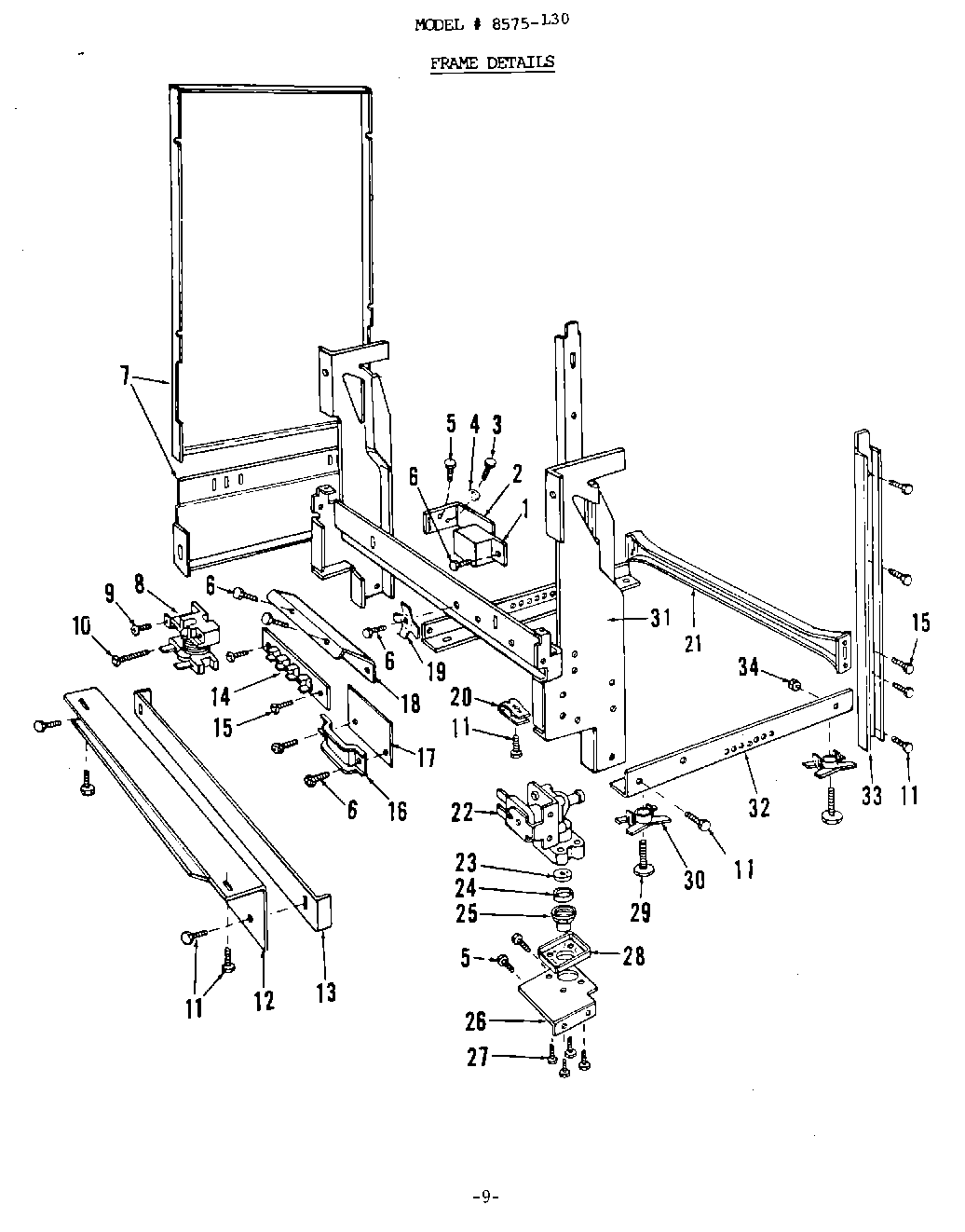

| 1 | Junction Box Cover |
| 2 | Junction Box Bracket |
| 3 | Screw 10-32x1/2 C.R. Hex Washer Hd. Cad. Pl. |
| 4 | Washer |
| 5 | Screw No. 10B x 1/2`` Lg. Hex Slot Hd. Cad. |
| 6 | WP90767 Whirlpool Screw |
| 7 | Side Panel Kit (White) |
| 7 | Side Panel Kit (Coffee) |
| 7 | Side Panel Kit (Avocado) |
| 7 | Side Panel Kit (Wheat) |
| 7 | Side Panel Kit (Almond) |
| 8 | Motor Relay |
| 9 | WP488234 Whirlpool Air Conditioner Screw |
| 10 | Screw No.8-32x1-1/4``Lg. C.R. Fillister Hd. Cad.Pl. |
| 11 | Screw 1/4-20x1/2``Lg.Hex Washer Slotted Hd.Cad.Pl. |
| 12 | Toeplate |
| 13 | Adjustable Toeplate |
| 14 | Terminal Block Assembly |
| 15 | Screw |
| 16 | Clamp - Wiring |
| 17 | Wire Shield |
| 18 | Terminal board Bracket |
| 19 | Terminal-Grounding |
| 20 | Speednut |
| 21 | Rear Brace |
| 22 | xWater Valve Kit (Includes Key Nos. 23 & 24) |
| 23 | Flow Washer |
| 24 | Gasket |
| 25 | Fitting - Inlet Valve |
| 26 | Mounting Bracket |
| 27 | Screw |
| 28 | Fitting - Retainer |
| 29 | Levelers |
| 30 | Teenut - Snap- in |
| 31 | Hinge Weld Assembly |
| 32 | Side Angle |
| 33 | Side Channel |
| 34 | M0282005 Whirlpool Nut |
