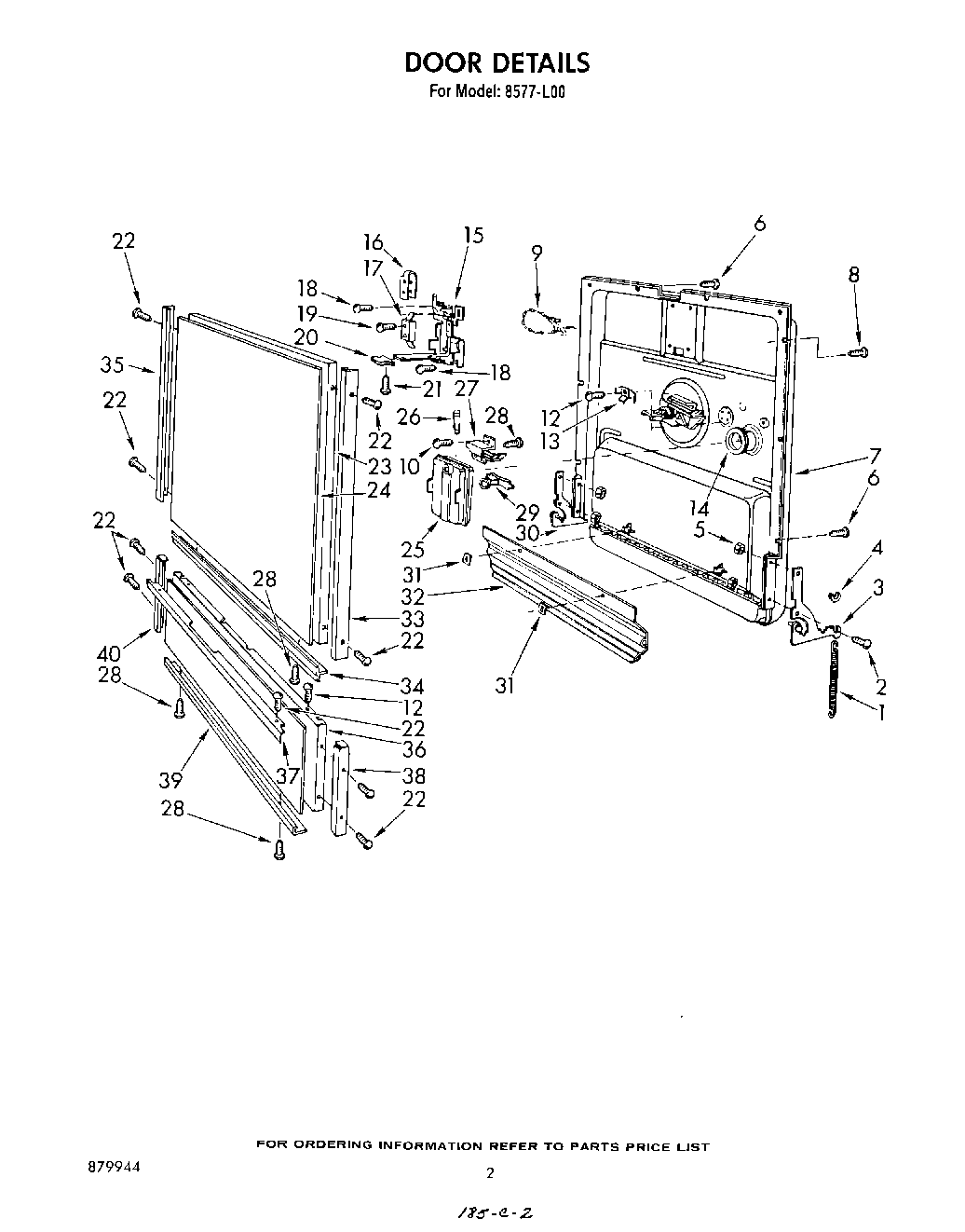

8577L00 02 – DOOR

Products

PositionProduct
1Door Spring
2Screw, No.8 x 5/8
3Counterbal Arm Assembly
4Spring Pad
5Nut
6Screw, 8 x 7/16
7Door Assembly
8W11693756 Whirlpool Screw Assembly
9WPW10339879 Whirlpool Wire Tie
10WP965173 Whirlpool Dishwasher Screw
12Screw, No.8 x 3/8
13Grounding Terminal
14Grommet, Dispenser
15Latch Assembly
16Switch Cover
17Switch
18Screw, 8 x 5/8
19Screw, No.6-32 x 1
20Latch Knob
21Screw, 8-32 x 5/16
22Screw, No.6 x 1/4
23Door Panel (White)
24Door & Access Panel Inserts (Coffee)
24Door & Access Panel Inserts (White)
24Door & Access Panel Inserts (Black)
24Door & Access Panel Inserts (Wheat)
24Door & Access Panel Inserts (Toast)
24Door & Access Panel Inserts (Platinum)
24Door & Access Panel Inserts (Avocado)
24Door & Access Panel Inserts (Almond)
25Body Assembly
26Plunger
27Bi-Metal Assembly
28WP488729 Whirlpool Refrigerator Door Screw
29Dispenser Fill Plug
30Counterbalance Arm Assembly (L.H)
31Speednut
32Baffle Seal
33Door Panel Trim (R.H)
34Door Panel Trim (Bottom)
35Door Panel Trim (L.H)
36Access Panel (White)
37Access Panel Trim (Top)
38Access Panel Trim (R.H)
39Access Panel Trim (Bottom)
40Access Panel Trim (L.H)
