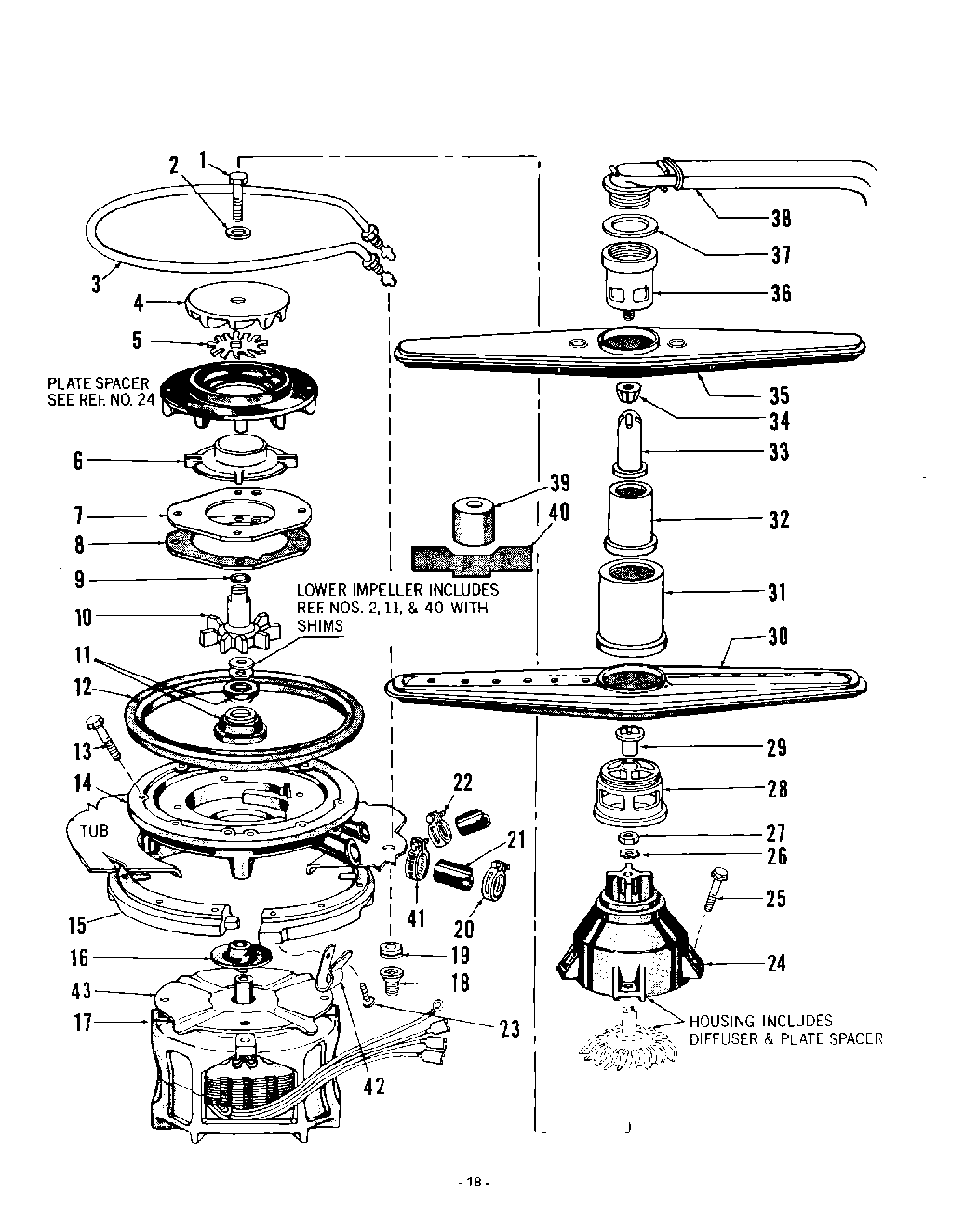

8585L00 12 – MOTOR, HEATER, SPRAY ARM

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater
4	Impeller – Upper
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Impeller-Lower Kit
11	Seal
12	Gasket-Pump
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Pump Housing
15	Clamp Ring (Includes Both Halves)
16	Slinger
17	Motor (Includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4“ Lg.Impeller Bolt, Motor, Sha
18	Nut 1/2“ 20 Brass
19	Grommet – Heater
20	Clamp
21	Hose – Connector
22	Clamp
23	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
24	Pump Housing (Includes Diffuser & Plate Spacer)
25	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
26	Lockwasher No.10 External Teeth
27	Nut
28	Bearing
29	Spray Arm Nut
30	Spray Arm Assembly
31	Tower Base
32	Tower Section
33	Tower Tip
34	Nut
35	Upper Spray Arm
36	Distributor
37	Gasket
38	Elbow & Tube Assembly
39	Seal Installation Tool
40	Gage – Seal Shim
41	WP285655 Whirlpool Hose Clamp
42	Clamp
43	Water Shield
