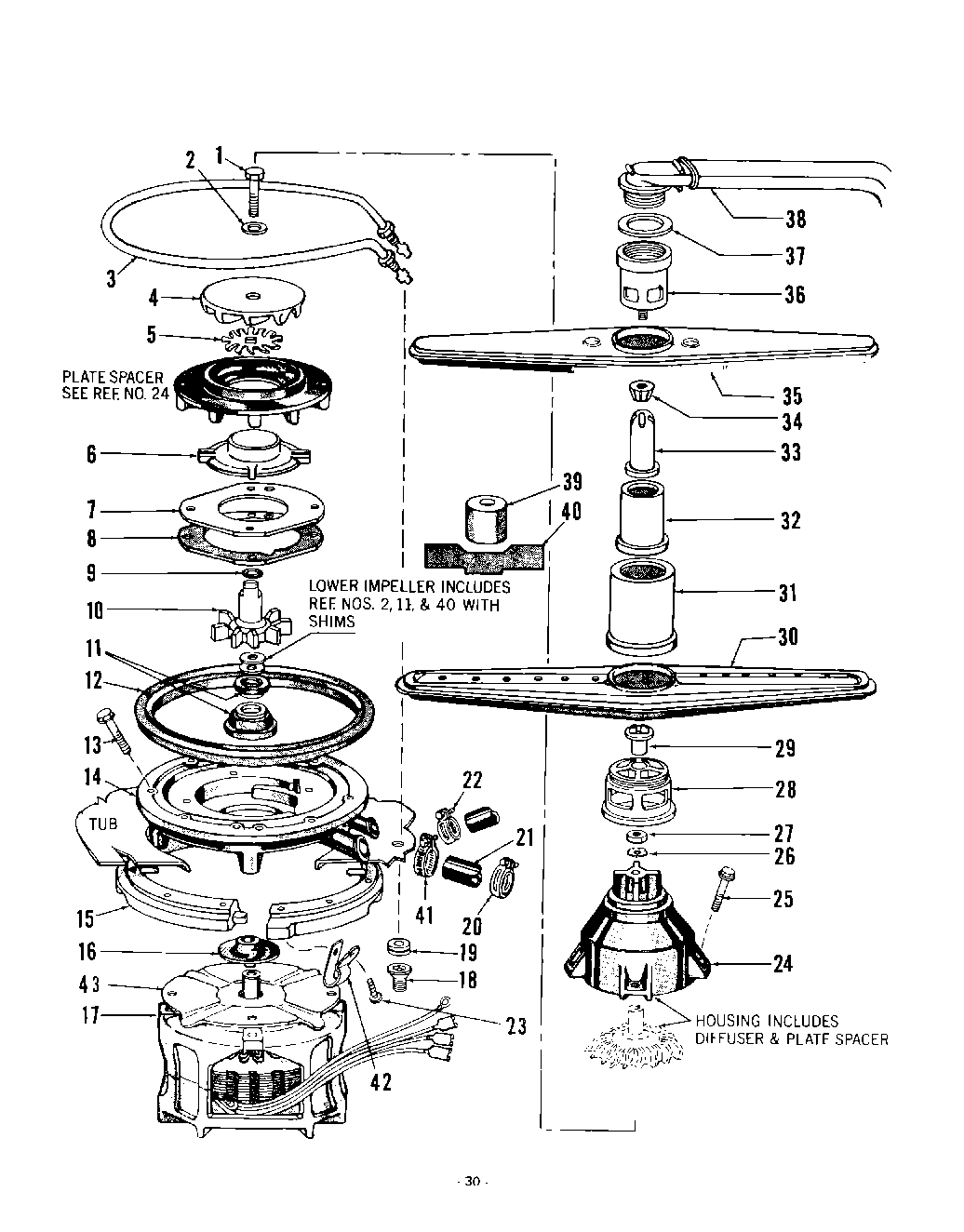

8585L00 20 – MOTOR, HEATER, SPRAY ARMadmin2025-04-26T09:49:59+00:008585L00 20 – MOTOR, HEATER, SPRAY ARM ProductsPositionProduct1Screw No.10-32x2``Lg. Hex Hd. St. St.2Washer3Heater4Impeller - Upper5Blade - Macerator6Shroud - Impeller7Plate - Pump8Gasket - Pump9``O`` Ring10Impeller-Lower Kit11Seal12Gasket-Pump13Screw No.10x1``Lg. Hex Washer Hd. St. St.14Pump Housing15Clamp Ring (Includes Both Halves)16Slinger17Motor (Includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4`` Lg.Impeller Bolt, Motor, Sha18Nut 1/2`` 20 Brass19Grommet - Heater20Clamp21Hose - Connector22Clamp23Screw No.8x5/8`` Lg. C.R. Truss Hd. Cad. Pl.24Pump Housing (Includes Diffuser & Plate Spacer)25Screw No.10-30Ax1-3/4``Lg. Hex Hd. St. St.26Lockwasher No.10 External Teeth27Nut28Bearing29Spray Arm Nut30Spray Arm Assembly31Tower Base32Tower Section33Tower Tip34Nut35Upper Spray Arm36Distributor37Gasket38Elbow & Tube Assembly39Seal Installation Tool40Gage - Seal Shim41WP285655 Whirlpool Hose Clamp42Clamp43Water Shield
