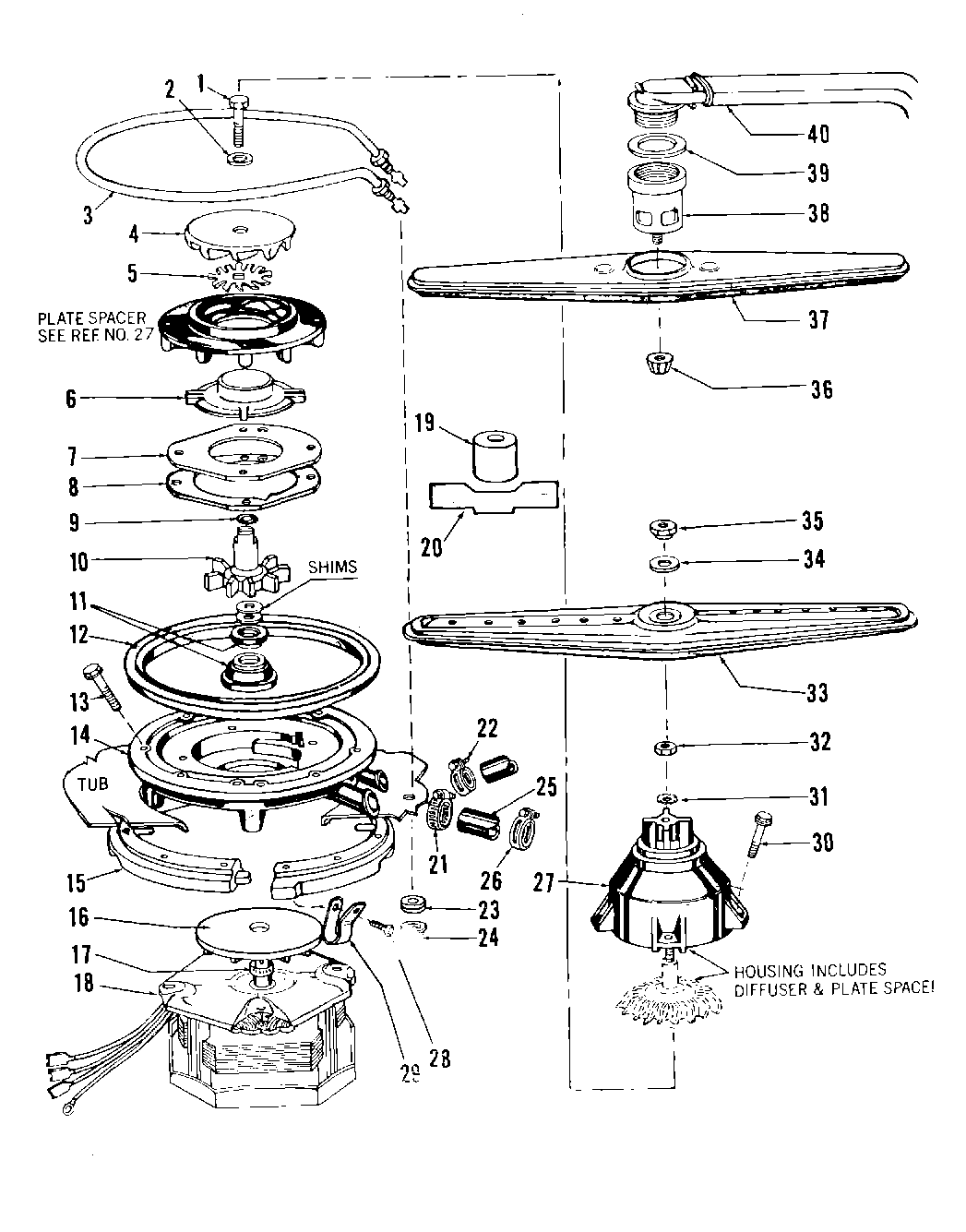

8585L10 03 – DOOR

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater (Includes Key Nos. 23 & 24)
4	Impeller – Upper
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Impeller-Lower Kit
11	Seal
12	Gasket-Pump
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Pump Housing
15	Clamp Ring (Includes Both Halves)
16	Watershield Fan (Includes Key No. 17)
17	Tolerance Ring
18	Motor (Includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4“ Lg.Impeller Bolt, Motor, Sha
19	Seal Installation Tool
20	Gage – Seal Shim
21	WP285655 Whirlpool Hose Clamp
22	Clamp
23	Grommet – Heater
24	Nut 1/2“ 20 Brass
25	Hose
26	Clamp
27	xPump Housing
28	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
29	Clamp
30	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
31	Lockwasher No.10 External Teeth
32	Nut
33	xSpray Arm Assembly
34	Washer-Spray Arm
35	Nut
36	Nut
37	Upper Spray Arm
38	Distributor
39	Gasket
40	Elbow & Tube Assembly
