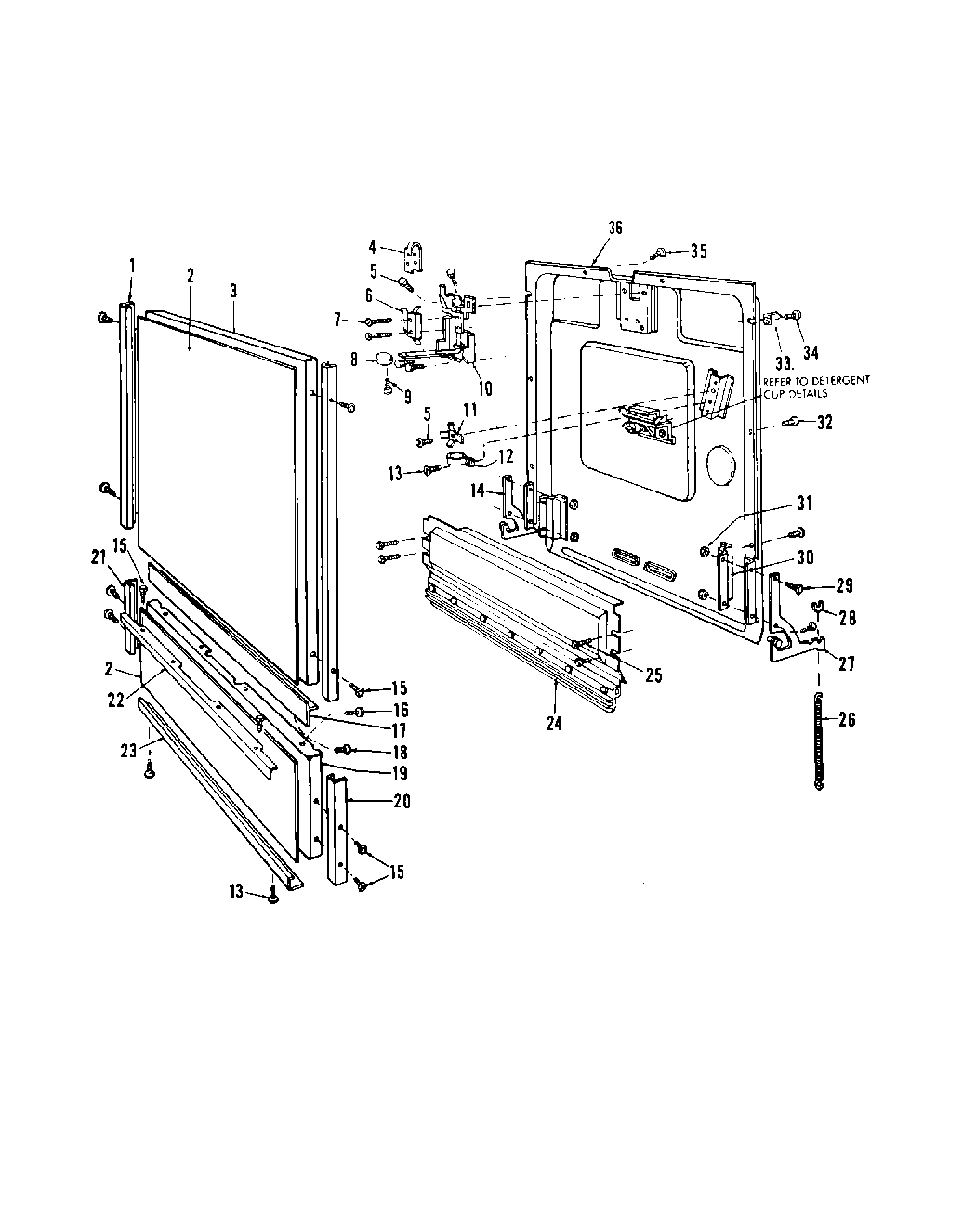

8585L10 11 – TUB

Products

Position	Product
1	Door Side Trim
2	Door & Access Insert Panels (Almond/Black)
3	Door Panel (White)
4	Cover – Switch
5	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
6	Switch
7	Screw 6×1 Lg. C.R. Round Hd. Zinc Pl.
8	Latch Knob
9	Screw No.8-32×7/32“ Lg. C.R. Truss Hd. Cad. Pl.
10	Latch Assembly
11	Terminal-Grounding
12	Clamp
13	Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
14	Arm Assembly – Counterbalance L.H.
15	WP74004005 Whirlpool Screw
16	WP90767 Whirlpool Screw
17	Door Panel Trim-Bottom
18	Screw
19	Access Panel
20	Access Panel Trim-R.H.
21	Access Panel Trim – L.H.
22	Access Panel Trip – Top
23	Access Panel
24	Vent Plate Assembly
25	Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
26	Door Spring (Includes Service No. 805884-Spring Pad (1))
27	Counterbalance Arm Assembly – R.H.
28	Spring Pad
29	Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
30	Counterbalance Arm Mounting Bracket
31	M0282009 Whirlpool Air Conditioner Nut
32	Screw 8×1/2 Lg. C.R. Truss Hd. St. St.
33	Guide – Door
34	Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
35	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
36	Weld & Finish Assembly
