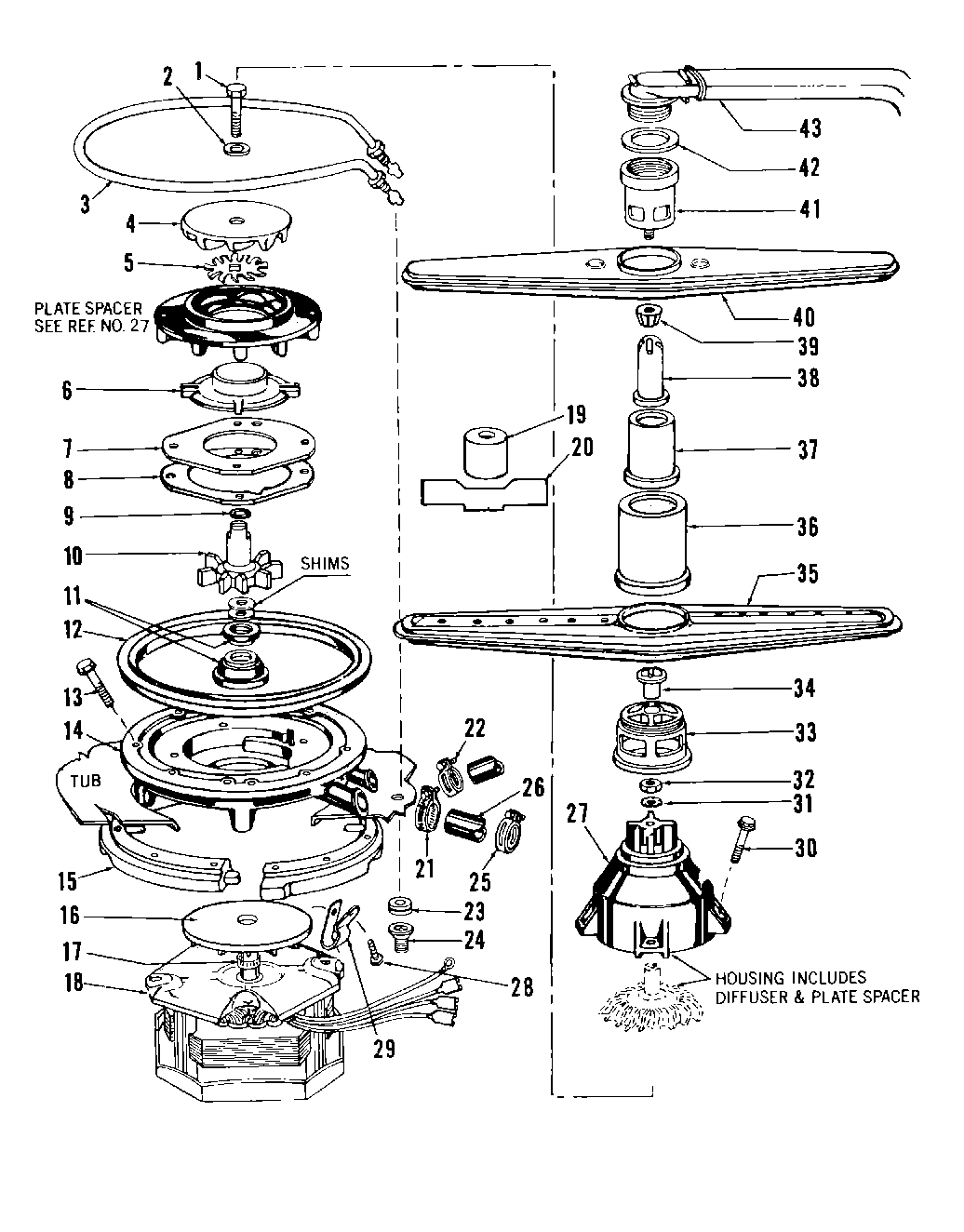

8585L10 19 – DOOR

Products

Position	Product
1	Screw No.10-32×2“Lg. Hex Hd. St. St.
2	Washer
3	Heater (Includes Key Nos. 23 & 24)
4	Impeller – Upper
5	Blade – Macerator
6	Shroud – Impeller
7	Plate – Pump
8	Gasket – Pump
9	“O“ Ring
10	Impeller-Lower Kit
11	Seal
12	Gasket-Pump
13	Screw No.10×1“Lg. Hex Washer Hd. St. St.
14	Pump Housing
15	Clamp Ring (Includes Both Halves)
16	Watershield Fan (Includes Key No. 17)
17	Tolerance Ring
18	Motor (Includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4“ Lg.Impeller Bolt, Motor, Sha
19	Seal Installation Tool
20	Gage – Seal Shim
21	WP285655 Whirlpool Hose Clamp
22	Clamp
23	Grommet – Heater
24	Nut 1/2“ 20 Brass
25	Clamp
26	Hose
27	Pump Housing (Includes Diffuser & Plate Spacer)
28	Screw No.8×5/8“ Lg. C.R. Truss Hd. Cad. Pl.
29	Clamp
30	Screw No.10-30Ax1-3/4“Lg. Hex Hd. St. St.
31	Lockwasher No.10 External Teeth
32	Nut
33	Bearing
34	Spray Arm Nut
35	Spray Arm Assembly
36	Tower Base
37	Tower Section
38	Tower Tip
39	Nut
40	Upper Spray Arm
41	Distributor
42	Gasket
43	Elbow & Tube Assembly
