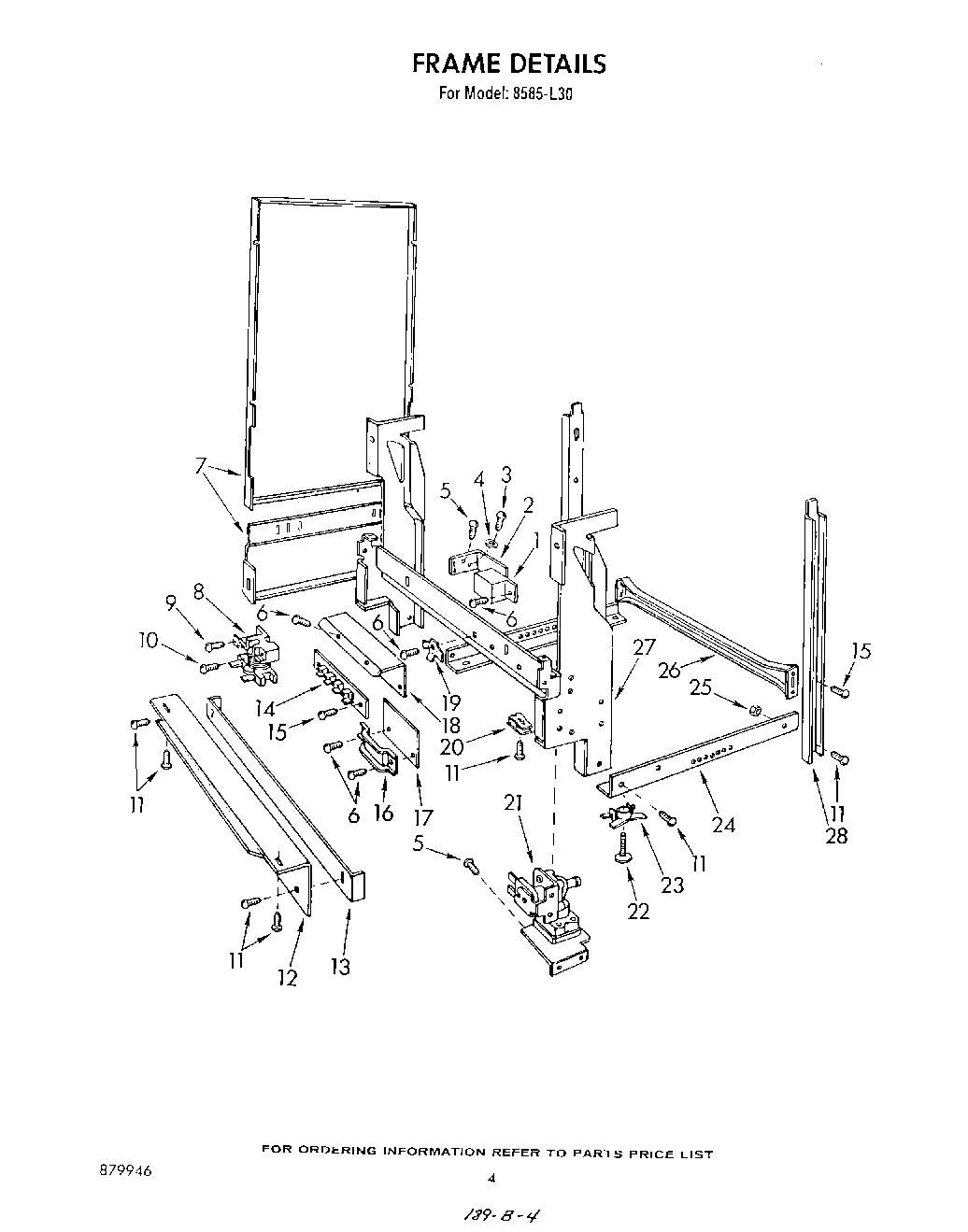

8585L30 03 – FRAME

Products

Position	Product
1	Junction Box Cover
2	Junction Box Bracket
3	Screw, No.10-32 x 1/2
4	Washer
5	SCREW
6	Screw, No.8 x 3/8
7	Side Panel Kit (R.H) Or (L.H) (Coffee)
7	Side Panel Kit (R.H) Or (L.H) (Avocado)
7	Side Panel Kit (R.H) Or (L.H) (Almond)
7	Side Panel Kit (R.H) Or (L.H) (Wheat)
7	Side Panel Kit (R.H) Or (L.H) (White)
8	Motor Relay
9	WP486579 Whirlpool Air Conditioner Screw
10	Screw, No.8-32 x 1 1/4
11	Screw, No.1/4 x 1/2
12	Toeplate
13	Adjustable Toeplate
14	Terminal Block Assembly
15	WP488729 Whirlpool Refrigerator Door Screw
16	Wire Clamp
17	Shield, Wire
18	Terminal Board Bracket
19	Grounding Terminal
20	Speednut
21	Water inlet Valve
22	Leveler
23	Snap-In Teenut
24	Side Angle
25	Nut
26	Rear Brace
27	Hinge Weld Assembly
28	Support Channel
