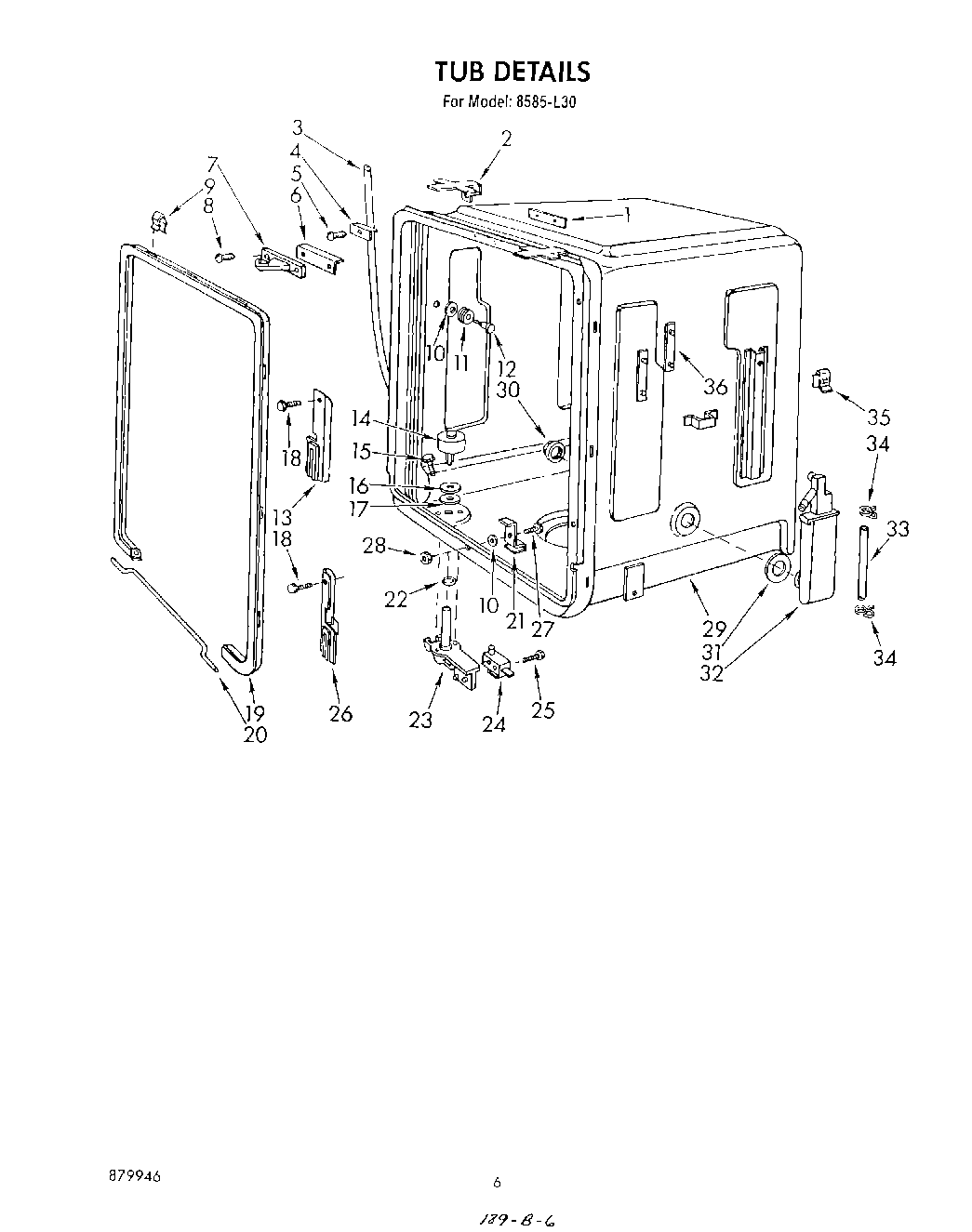

| 1 | Latch Tapping Plate |
| 2 | Attach Clip |
| 3 | Drain Hose, Corrugated |
| 4 | Clip Shim |
| 5 | Screw, No.8 x 7/6 |
| 6 | Shim |
| 7 | Door Strike |
| 8 | Screw, No.10 x 3/4 |
| 9 | Tub Gasket Clip Kit (Includes Key No. 21) |
| 10 | Washer |
| 11 | Tub Roller |
| 12 | Screw & Washer Kit (Includes Key 10) |
| 13 | Counterbalance Arm Guide (L.H) |
| 14 | Float |
| 15 | Screw, 10 x 1 |
| 16 | Float Tube Assembly |
| 17 | Float Tube Gasket |
| 18 | Screw, No.10-24 x 7/8 |
| 19 | Gasket & Wire Assembly (Includes Key Nos. 9 & 20) |
| 20 | Gasket Junction Wire |
| 21 | Dam Clip |
| 22 | O-Ring |
| 23 | Float Switch Kit (Includes Keys 16 17, 22, 24 & 25) |
| 24 | Float Switch |
| 25 | Screw, No.4-40 x 5/8 |
| 26 | Counterbalance Arm Guide (R.H) |
| 27 | Screw, No.8-32 x 1/2 |
| 28 | WP486255 Whirlpool Air Conditioner Nut |
| 29 | Tub & Gasket Assembly |
| 30 | Nut |
| 31 | Water Inlet, Gasket |
| 32 | Water Inlet, Assembly |
| 33 | Water Inlet Tubing (Includes Key 34) |
| 34 | Clamp |
| 35 | Cage Nut |
| 36 | Tapping Plate |
