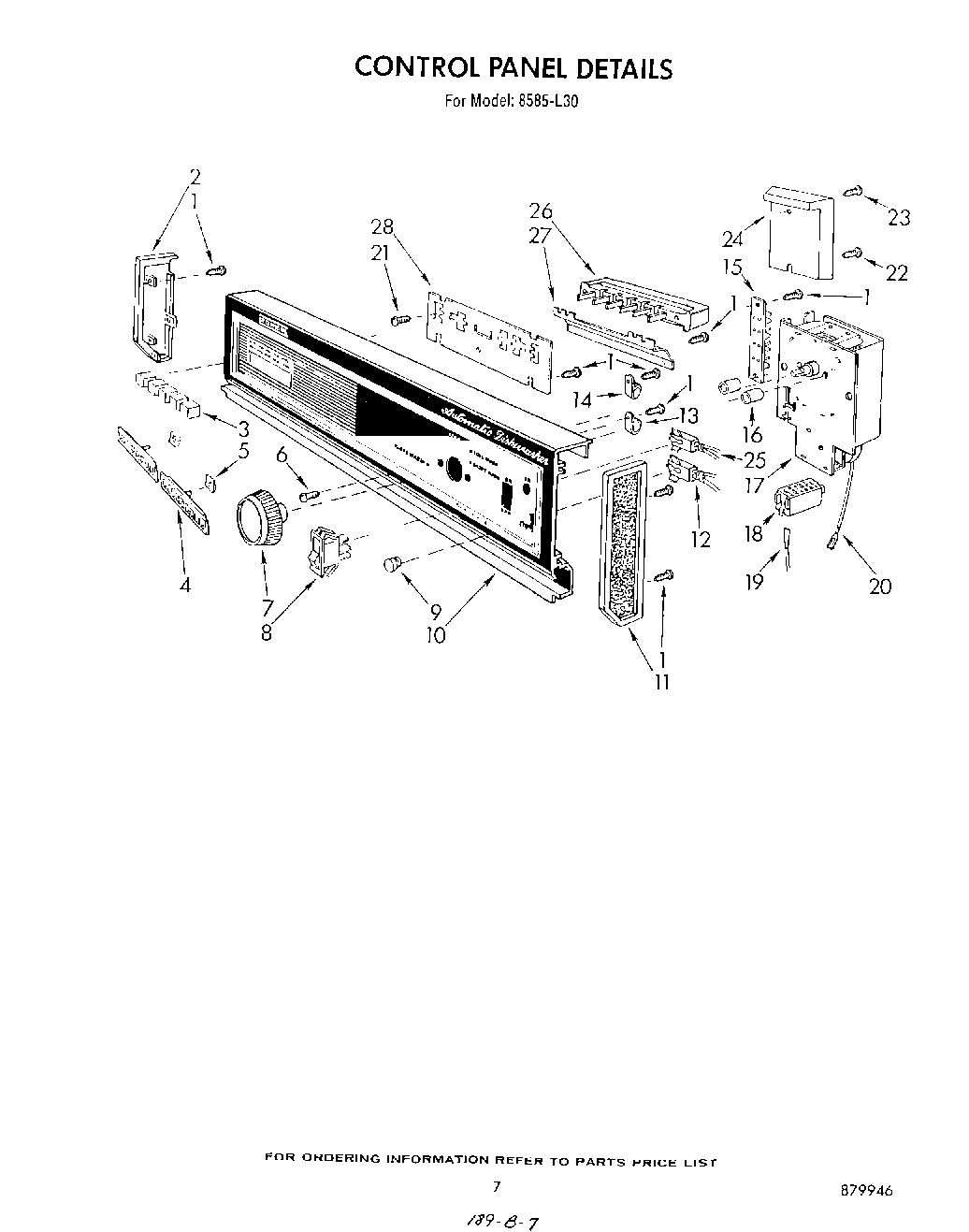

8585L30 05 – CONTROL PANEL

Products

Position	Product
1	Screw, No.8 x 7/16
2	End Cap (L.H)
3	Pushbutton
4	Vent Grille
5	Speednut
6	Screw, No.10-32 x 1 17/64
7	Timer Knob
8	WP4314961 Whirlpool Lite Switch
9	Dispenser Grommet
10	Control Panel (Includes Key Nos. 4 & 5)
11	End Cap (R.H)
12	Light Assembly
13	Clamp, Wire
14	Clamp
15	Terminal Board Assembly
16	Spacer
17	Timer
18	Timer Housing
19	Terminal
20	Timer Terminal
21	Screw, 6-30 x 3/8
22	WP965173 Whirlpool Dishwasher Screw
23	WP355214 Whirlpool Screw
24	Splash Pan
25	Light Assembly
26	Screw, No.8 x 5/8
27	Vent Slot Shield
28	Bracket, Switch
