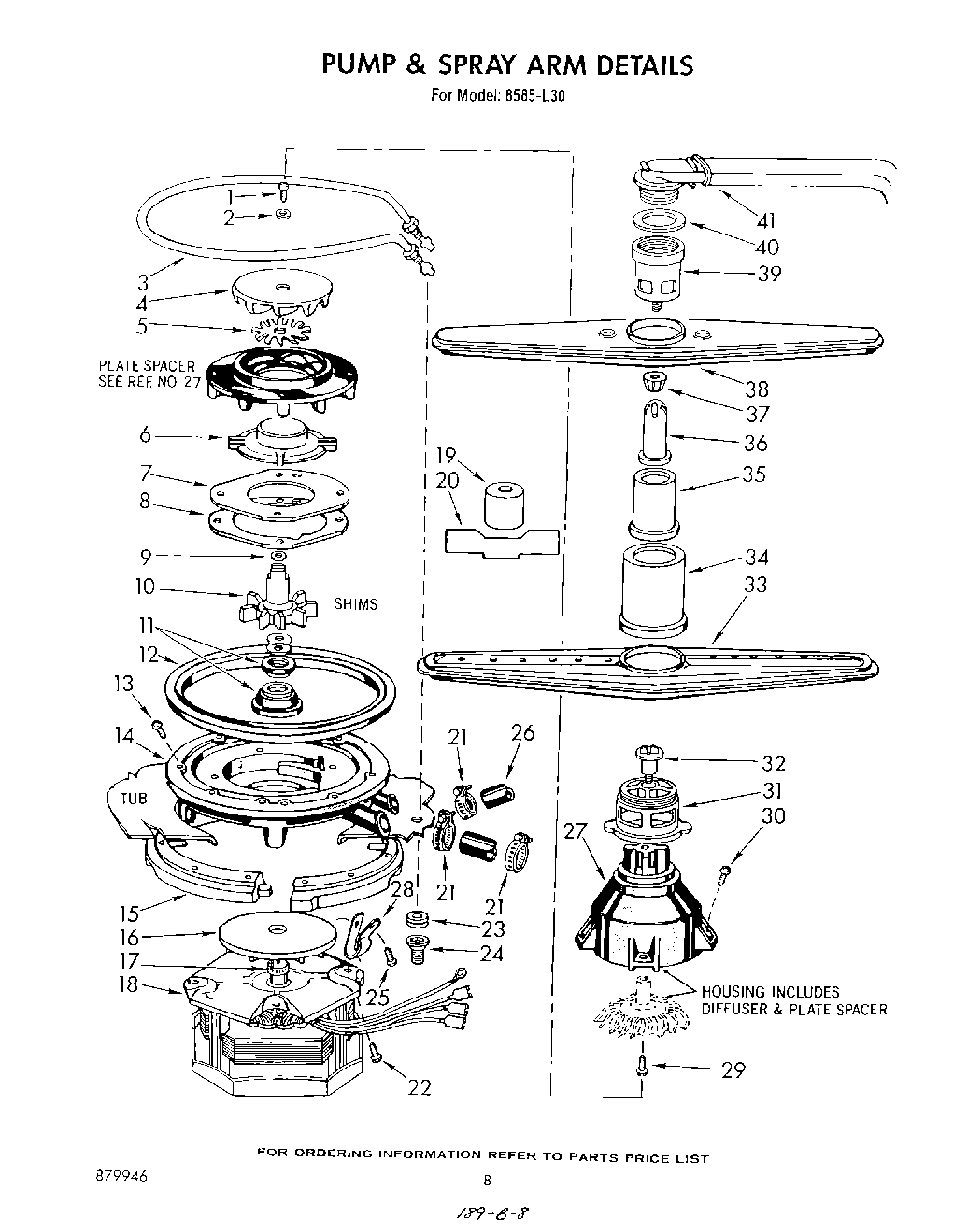

8585L30 06 – PUMP AND SPRAY ARM

Products

Position	Product
1	Screw, No.10-32 x 2 1/4
2	Washer
3	Heater (Includes Items 23 & 24)
4	Upper Impeller
5	Macerator Blade
6	Impeller Shroud
7	Pump Plate
8	Pump Gasket
9	O-Ring
10	Pump & Seal Kit (Includes Key Nos. 2, 4, 5, 9, 11, & 20)
11	Water Seal
12	Gasket
13	Screw, 10 x 1
14	Housing, Pump
15	Clamp Ring (2)
16	Watershield Assembly
17	Tolerance Ring
18	Motor Assembly (Includes Items 1, 9, 16 & 20)
19	Seal Installation Tool
20	Seal Shim Gage
21	Hose Clamp
22	Screw, 10 x 1
23	Heater Grommet
24	Heater Nut, 1/2
25	W11693756 Whirlpool Screw Assembly
26	Connector Hose
27	Impeller Housing Kit (Includes Keys 6 & 7)
28	Clamp, Wire
29	Screw, 8 x 3/4
30	Screw, 10 x 1-3/4
31	Bearing
32	Spray Arm Bolt
33	Spray Arm Assembly
34	Tower Base
35	Tower Section
36	Tower Tip
37	Nut
38	Spray Arm Assembly
39	Distributor
40	Gasket
41	Elbow & Tube Assembly
