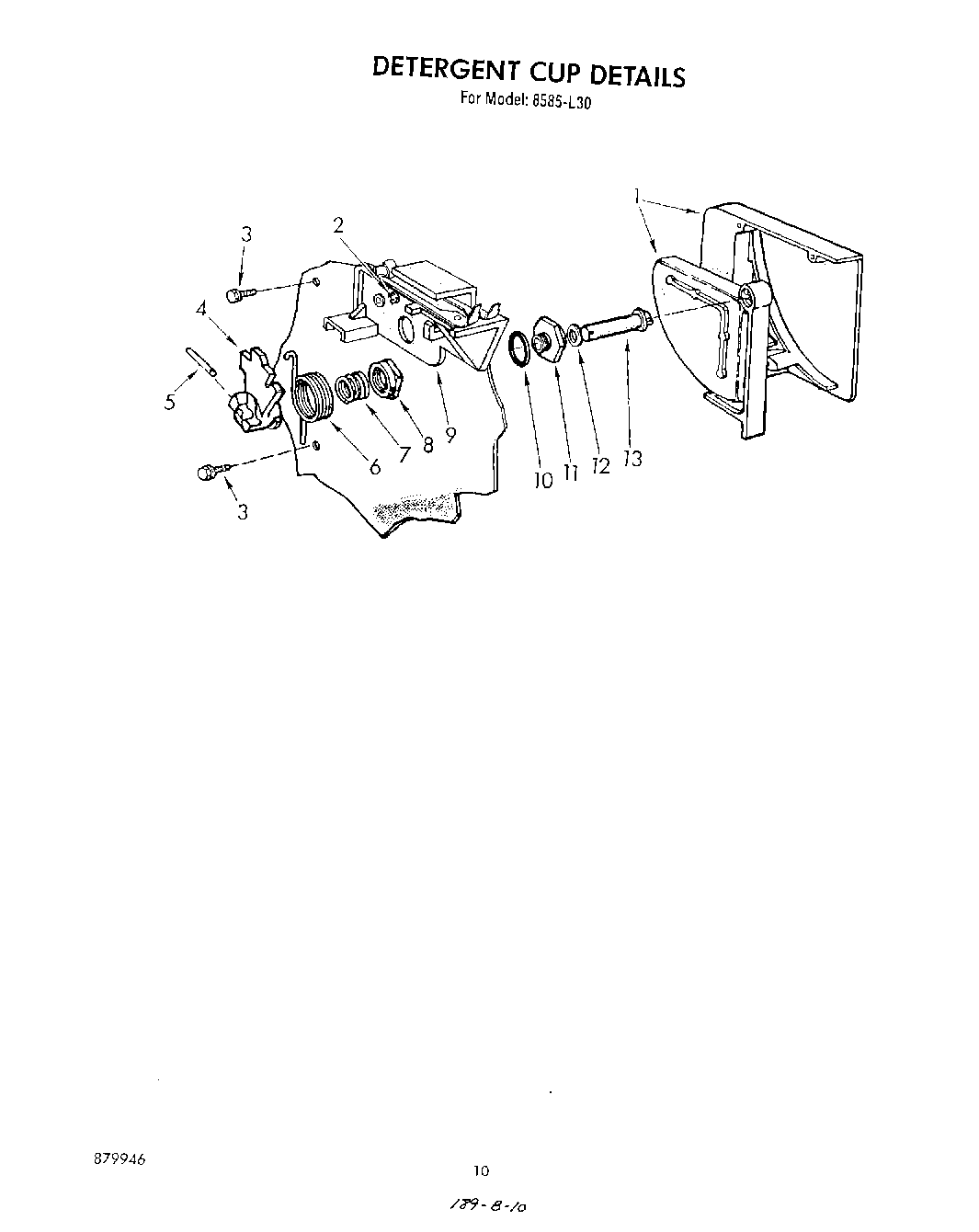

8585L30 07 – DETERGENT CUP

Products

Position	Product
1	Detergent Cup & Cover
2	O-Ring
3	WP98165 Whirlpool Screw
4	Cam
5	Spiral Pin
6	Cam Spring
7	Cam Compression Spring
8	Detergent Cup Nut
9	Bi-Metal Assembly Kit (Includes Key No. 11)
10	Washer
11	Bushing
12	O-Ring
13	Shaft Kit (Includes Keys 2 4, 5, 7, 8, 10, 11 & 12)
