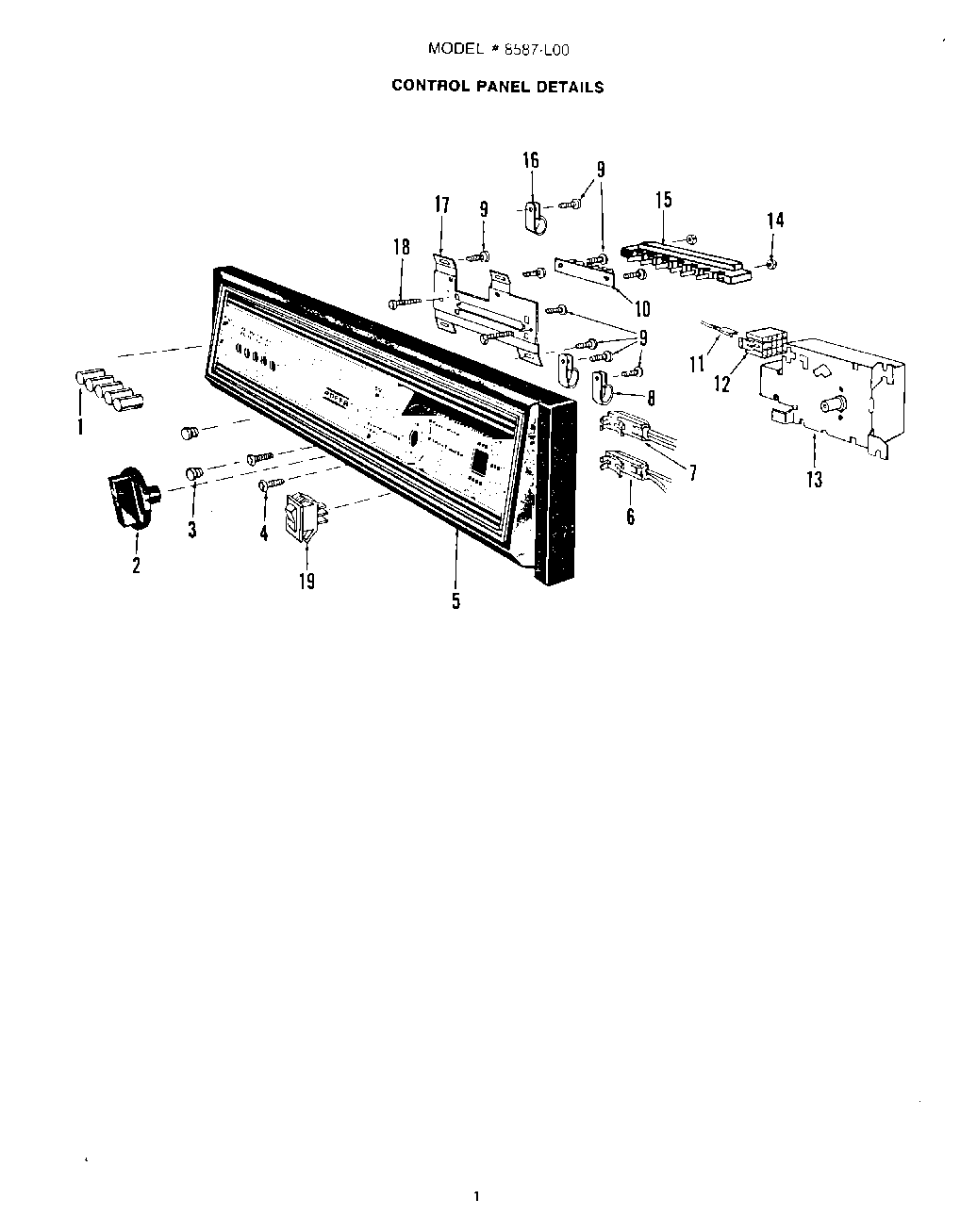

8587L00 02 – CONTROL PANEL

Products

Position	Product
1	Pushbuttons
2	Timer Knob
3	Lens
4	Screw No.10-32×27/32“ Lg. C.R. Truss Hd.Cad.Pl.
5	Control Panel
6	Light Assembly
7	Light Assembly
8	Clamp
9	Screw No. 8B x 7/16“ Lg. C.R. Truss Hd. Cad. Pl.
10	Terminal Board Assembly
11	Housing Terminal
12	Timer Terminal Housing
13	Timer
14	Nut
15	Switch
16	W10833902 Whirlpool Refrigerator Clamp
17	Switch Mounting Bracket
18	Screw No. 8-32 x 1 3/8“ Lg. C.R. Truss Hd. Cad. Pl
19	Rocker Switch
