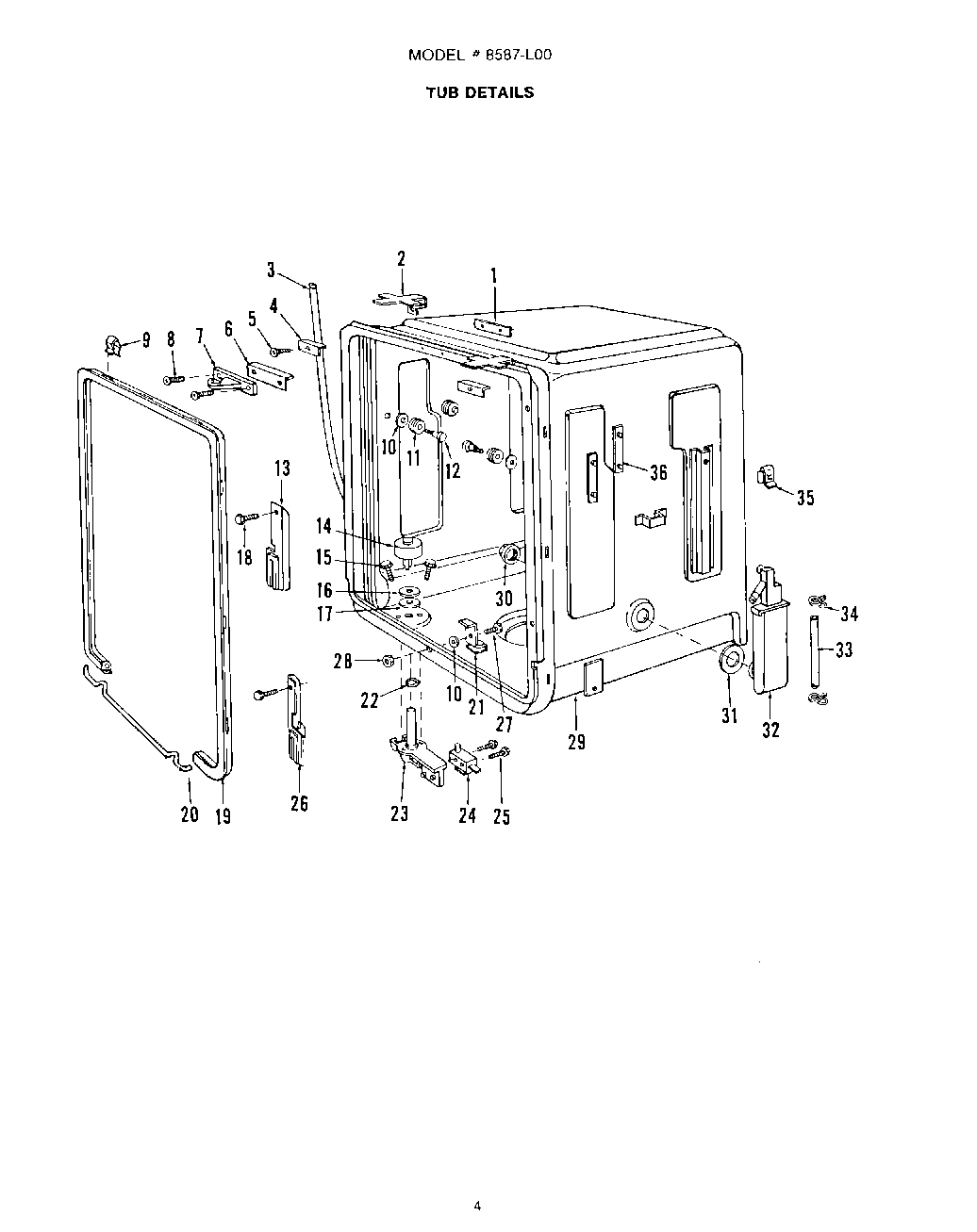

8587L00 04 – TUB

Products

Position	Product
1	Latch Tapping Plate
2	Attach Clip
3	Drain Hose, Corrugated
4	Clip Shim
5	Screw No.8×7/16“Lg. C.R. Truss Hd. St. St.
6	Shim
7	Strike
8	WP22001496 Whirlpool Screw
9	Gasket Clip
10	Washer
11	Roller
12	Screw & Washer Kit (Includes Key No. 10)
13	Counterbalance Arm Guide L.H.
14	Float
15	Screw No.10×1“Lg. Hex Washer Hd. St. St.
16	Plate – Float Tube
17	Gasket – Float Tube
18	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
19	Gasket & Wire Assembly (Includes Key Nos. 9 & 20)
20	Gasket Junction Wire
21	Gasket Clip
22	“O“ Ring
23	Float Assembly
24	Switch
25	Screw 4-40×5/8“ Lg. Hex Hd. Cad. Pl.
26	Counterbalance Arm Guide R.H.
27	WP250830 Whirlpool Refrigerator Screw
28	Nut
29	Tub & Gasket Assembly
30	Nut
31	Gasket-Water Inlet
32	Water Inlet Assembly
33	Tubing – Inlet
34	Clamp
35	Cage Nut
36	Tapping Plate
37	WPL 809113
