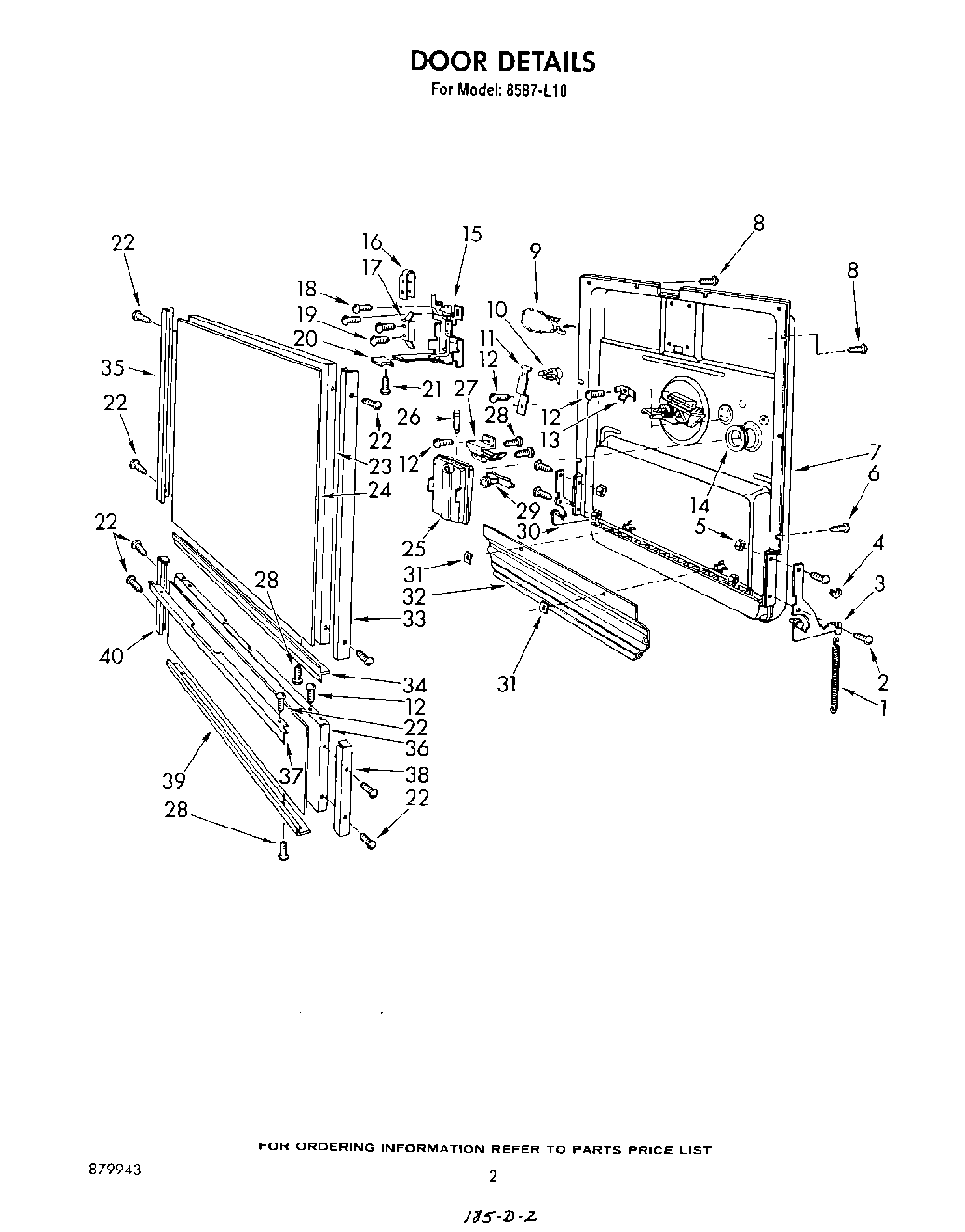

8587L10 02 – DOOR

Products

Position	Product
1	Door Spring
2	Screw, No.8 x 5/8
3	Counterbal Arm Assembly
4	Spring Pad
5	Nut
6	Screw, 8 x 7/16
7	Door Assembly
8	W11693756 Whirlpool Screw Assembly
9	WPW10339879 Whirlpool Wire Tie
10	Thermostat
11	Thermostat Retainer
12	Screw, No.8 x 3/8
13	Grounding Terminal
14	Grommet, Dispenser
15	Latch Assembly
16	Switch Cover
17	Switch
18	Screw, 8 x 5/8
19	Screw, No.6-32 x 1
20	Latch Knob
21	Screw, 8-32 x 5/16
22	Screw, No.6 x 1/4
23	Door Panel (White)
24	Door & Access Panel Inserts (Coffee)
24	Door & Access Panel Inserts (White)
24	Door & Access Panel Inserts (Black)
24	Door & Access Panel Inserts (Wheat)
24	Door & Access Panel Inserts (Toast)
24	Door & Access Panel Inserts (Platinum)
24	Door & Access Panel Inserts (Avocado)
24	Door & Access Panel Inserts (Almond)
25	Body Assembly
26	Plunger
27	Bi-Metal Assembly
28	WP488729 Whirlpool Refrigerator Door Screw
29	Dispenser Fill Cup
30	Counterbalance Arm Assembly (L.H)
31	Speednut
32	Baffle Seal
33	Door Panel Trim (R.H)
34	Door Panel Trim (Bottom)
35	Door Panel Trim (L.H)
36	Access Panel (White)
37	Access Panel Trim (Top)
38	Access Panel Trim (R.H)
39	Access Panel Trim (Bottom)
40	Access Panel Trim (L.H)
