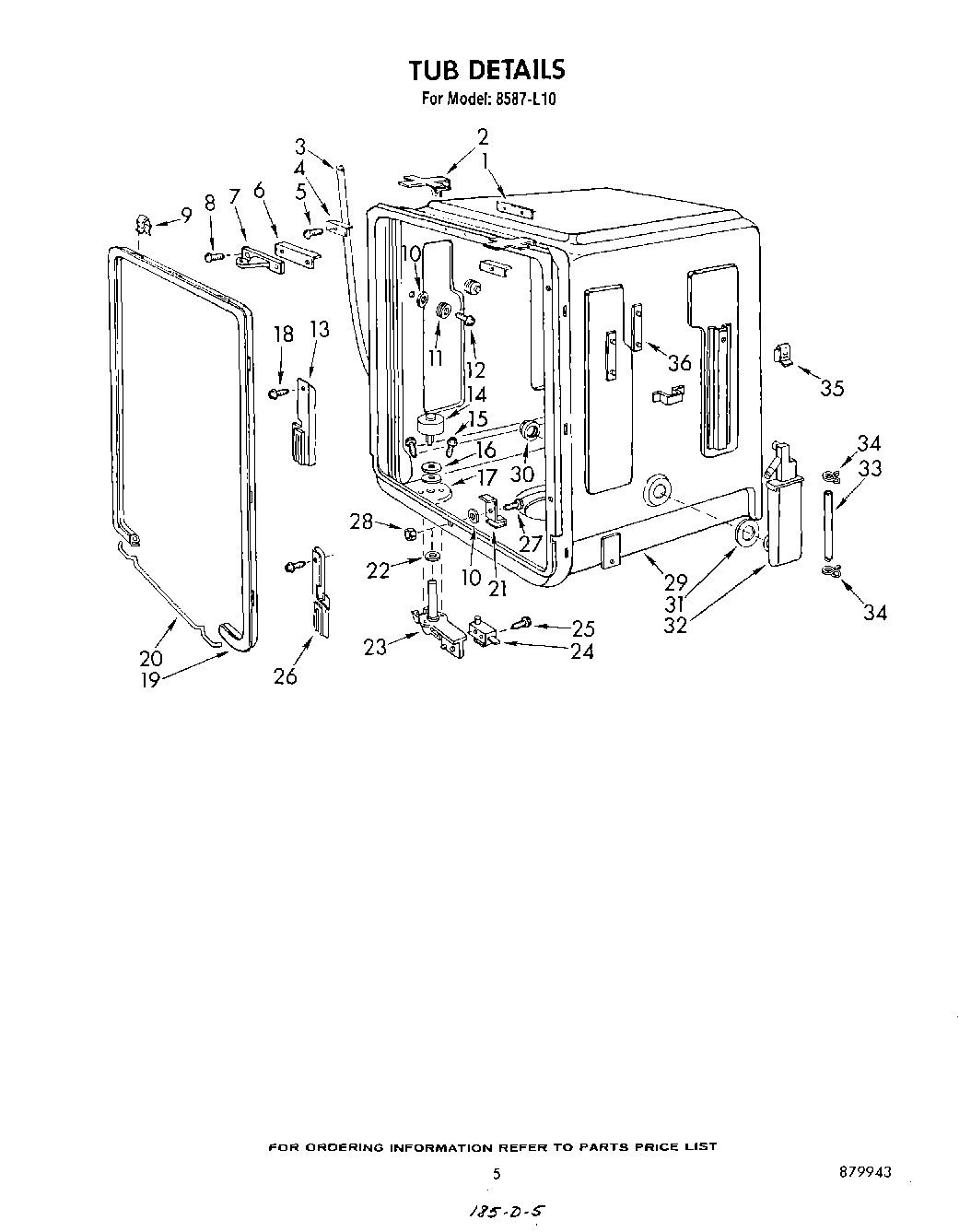

8587L10 04 – TUB

Products

Position	Product
1	Latch Tapping Plate
2	Attach Clip
3	Drain Hose, Corrugated
4	Clip Shim
5	Screw, No.8 x 7/6
6	Shim
7	Door Strike
8	Screw, No.10 x 3/4
9	Tub Gasket Clip Kit (Includes Key No. 21)
10	Washer
11	Tub Roller
12	Screw & Washer Kit (Includes Key 10)
13	Counterbalance Arm Guide (L.H)
14	Float
15	Screw, 10 x 1
16	Float Tube Assembly
17	Float Tube Gasket
18	Screw, No.10-24 x 7/8
19	Gasket & Wire Assembly (Includes Keys 9 & 20)
20	Gasket Junction Wire
21	Dam Clip
22	O-Ring
23	Float Switch Kit (Includes Keys 16 17, 22, 24 & 25)
24	Float Switch
25	Screw, No.4-40 x 5/8
26	Counterbalance Arm Guide (R.H)
27	Screw, No.8-32 x 1/2
28	WP486255 Whirlpool Air Conditioner Nut
29	Tub & Gasket Assembly
30	Nut
31	Water Inlet, Gasket
32	Water Inlet, Assembly
33	Water Inlet Tubing (Includes Key 34)
34	Clamp
35	Cage Nut
36	Tapping Plate
