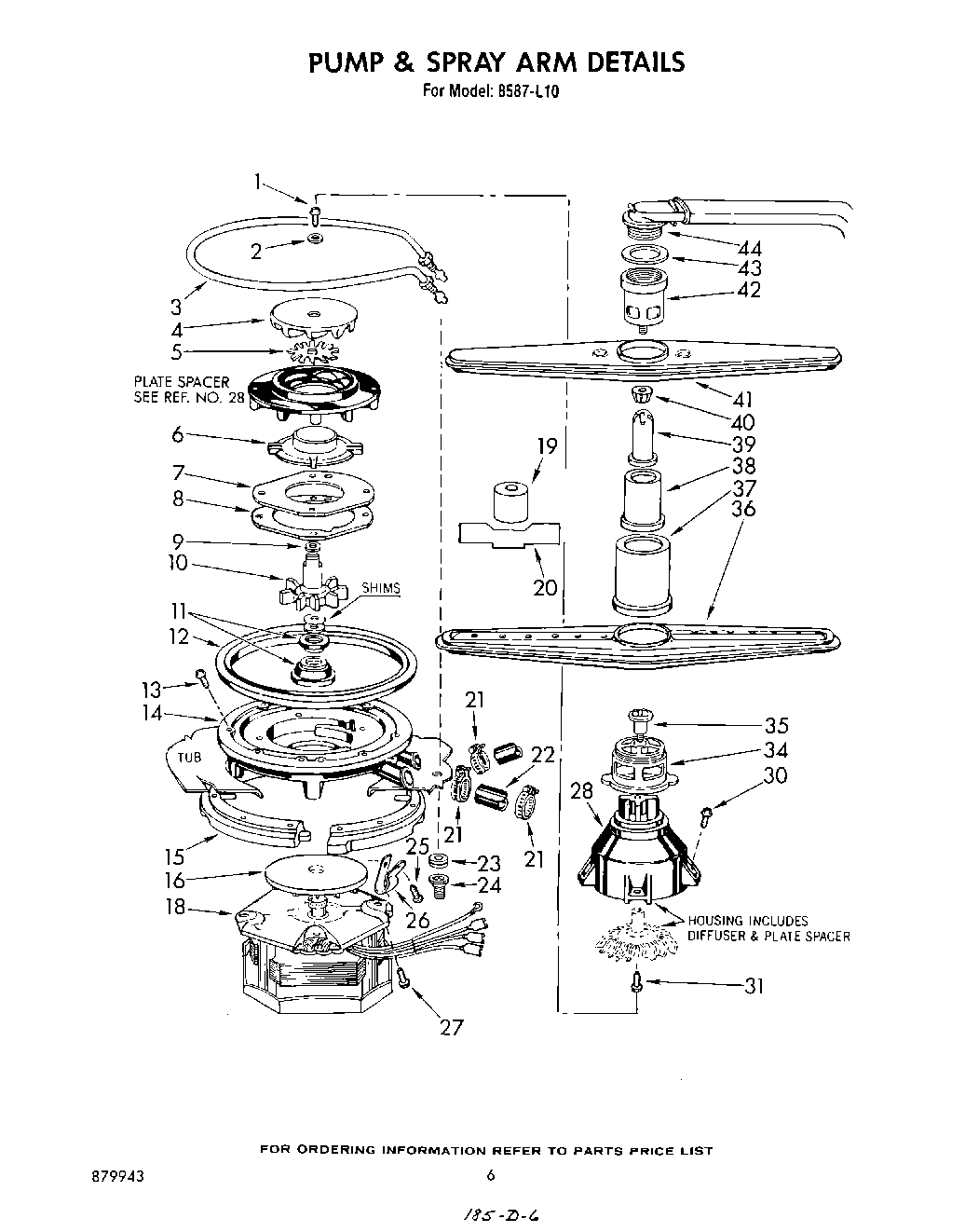

8587L10 05 – PUMP AND SPRAY ARM
Written by
in
8587L10 05 – PUMP AND SPRAY ARM
Products
Position
Product
1
Screw, No.10-32 x 2 1/4
2
Washer
3
Heater (Includes Items 23 & 24)
4
Upper Impeller
5
Macerator Blade
6
Impeller Shroud
7
Pump Plate
8
Pump Gasket
9
O-Ring
10
Pump & Seal Kit (Includes Key Nos. 2, 4, 5, 9, 11, & 20)
11
Water Seal
12
Gasket
13
Screw, 10 x 1
14
Housing, Pump
15
Clamp Ring (2)
16
Watershield Assembly
18
Motor Assembly (Includes Items 1, 9, 16 & 20)
19
Seal Installation Tool
20
Seal Shim Gage
21
Hose Clamp
22
Connector Hose
23
Heater Grommet
24
Heater Nut, 1/2
25
W11693756 Whirlpool Screw Assembly
26
Clamp, Wire
27
Screw, 10 x 1
28
Impeller Housing Kit (Includes Keys 6 & 7)
30
Screw, 10 x 1-3/4
31
Screw, 8 x 3/4
34
Bearing
35
Spray Arm Bolt
36
Spray Arm Assembly
37
Tower Base
38
Tower Section
39
Tower Tip
40
Nut
41
Spray Arm Assembly
42
Distributor
43
Gasket
44
Elbow & Tube Assembly
←
