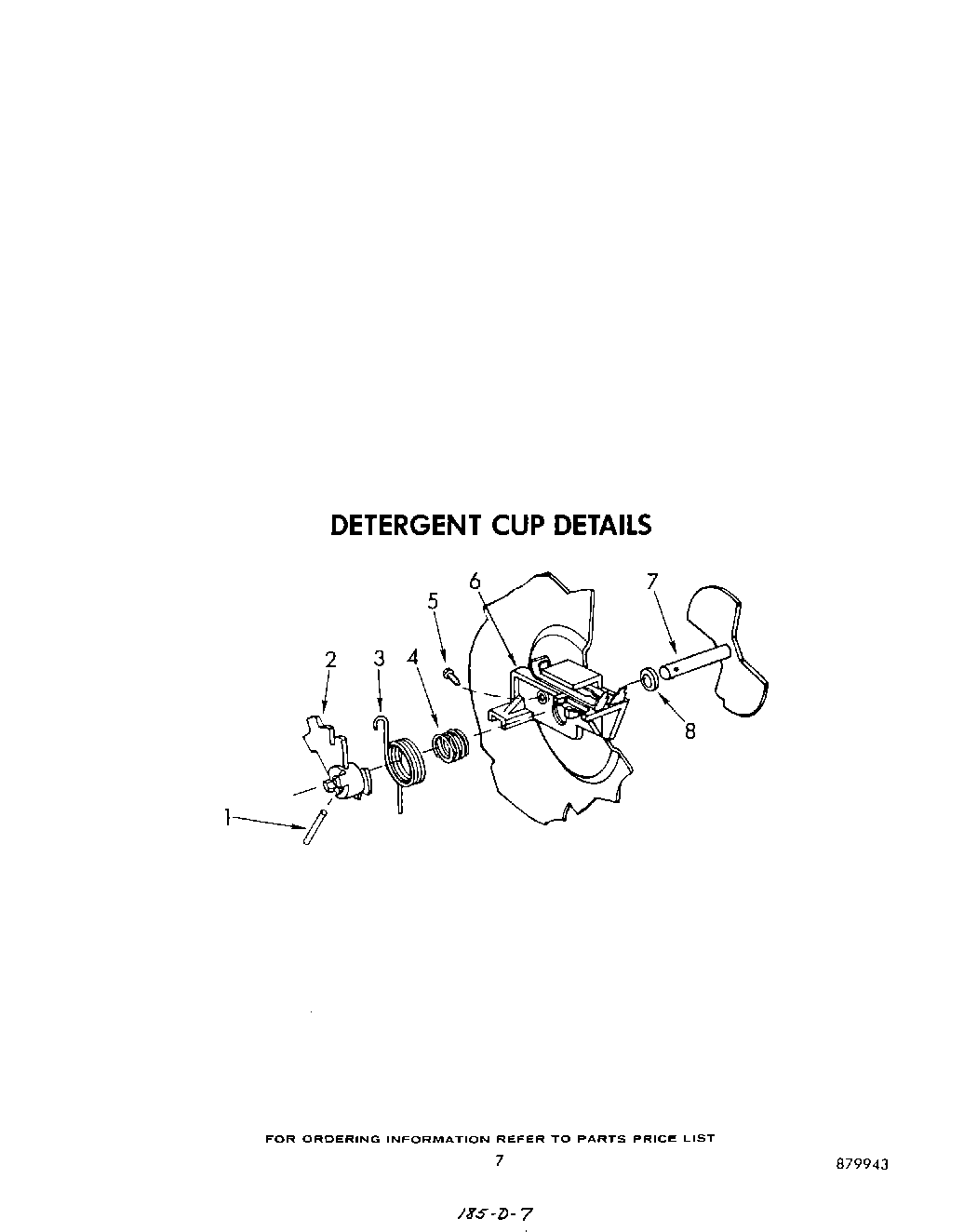

8587L10 06 – DETERGENT CUP
Products
| Position | Product |
|---|---|
| 1 | Spiral Pin |
| 2 | Cam |
| 3 | Cam Spring |
| 4 | Cam Compression Spring |
| 5 | Screw, 8 x 5/8 |
| 6 | Bi-Metal Assembly |
| 7 | Dispenser Lid |
| 8 | O-Ring |
