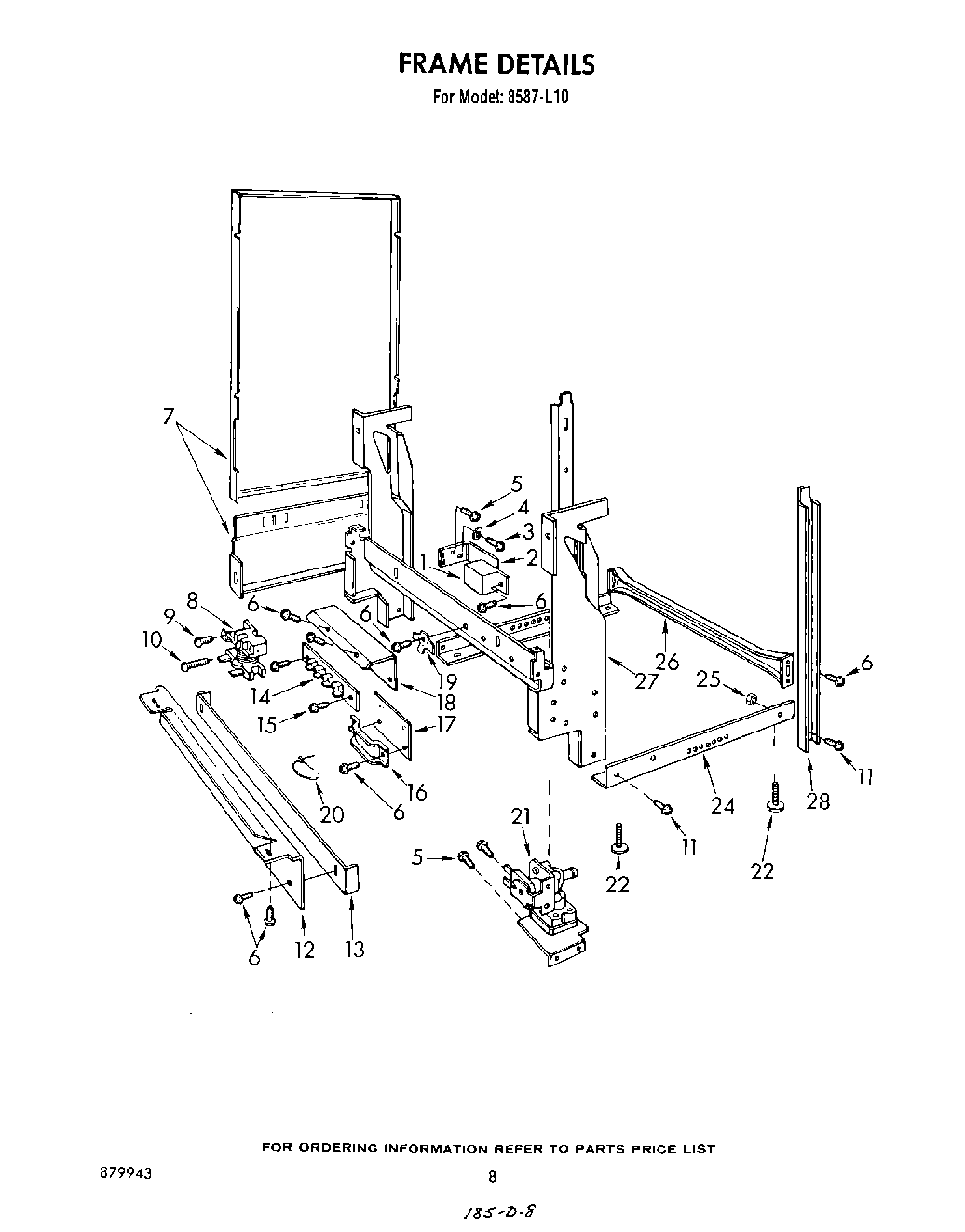

8587L10 07 – FRAME , LITERATUREadmin2025-04-26T09:48:43+00:008587L10 07 – FRAME , LITERATURE ProductsPositionProductParts List1Junction Box Cover2Junction Box Bracket3Screw, No.10-32 x 1/24Washer5SCREW6Screw, No.8 x 3/87Side Panel Kit (R.H) Or (L.H) (Avocado)7Side Panel Kit (R.H) Or (L.H) (Almond)7Side Panel Kit (R.H) Or (L.H) (White)7Side Panel Kit (R.H) Or (L.H) (Coffee)7Side Panel Kit (R.H) Or (L.H) (Wheat)8Motor Relay9WP486579 Whirlpool Air Conditioner Screw10Screw, No.8-32 x 1 1/411Screw, No.1/4 x 1/212Toeplate13Adjustable Toeplate14Terminal Block Assembly15WP488729 Whirlpool Refrigerator Door Screw16Wire Clamp17Shield, Wire18Terminal Board Bracket19Grounding Terminal20Wire Tie21Water inlet Valve22Leveler24Side Angle Kit25Nut26Rear Brace27Hinge Weld Assembly28Support Channel
